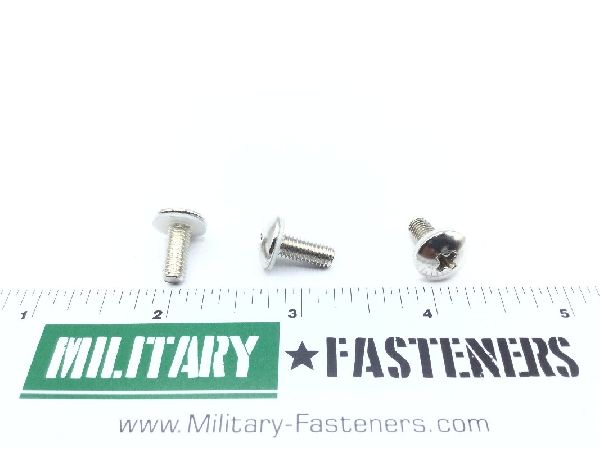

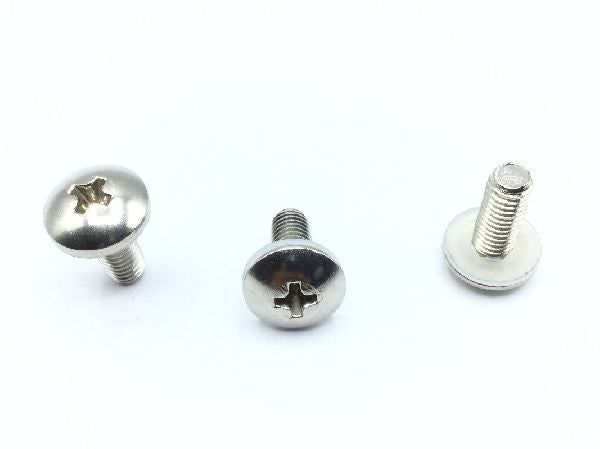

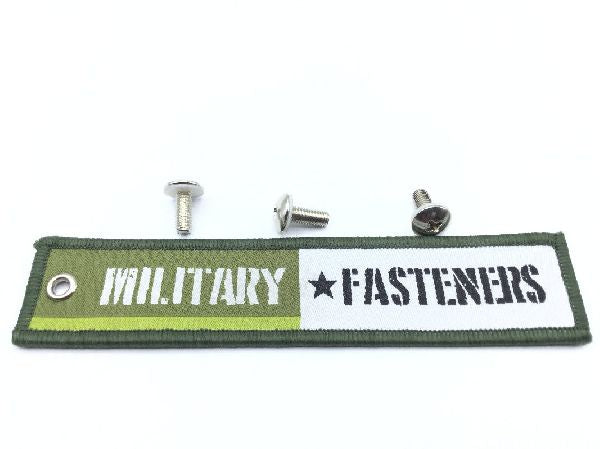

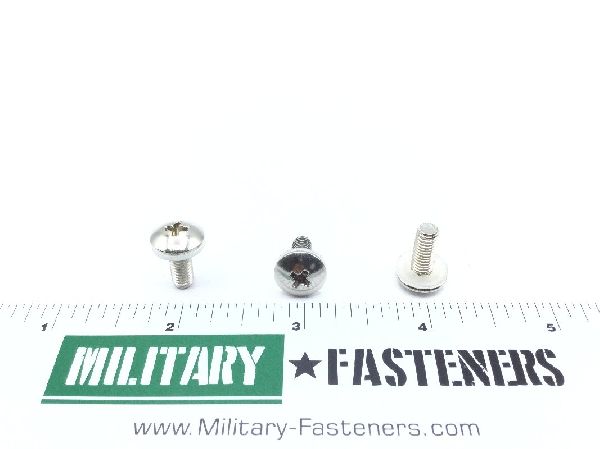

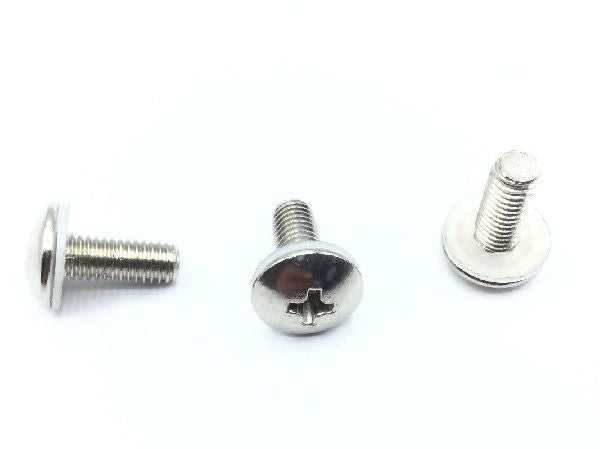

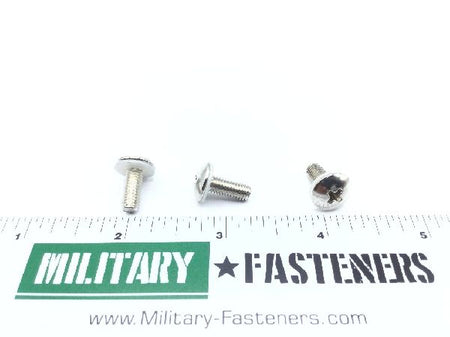

HW-104 Machine Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.08

Units per Pack 20

Price per Pack $81.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $81.60

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: Between 0.495 in and 0.505 in
Extended Washer Thickness: Between 0.072 in and 0.082 in
Fastener Length: Between 0.422 in and 0.453 in
Head Height: Between 0.136 in and 0.146 in
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 1016
Screw Surface Treatment: Nickel
Thread Diameter: 0.190 in
Thread Direction: Right-hand
Thread Length: Between 0.422 in and 0.453 in
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.338 in and 0.348 in
