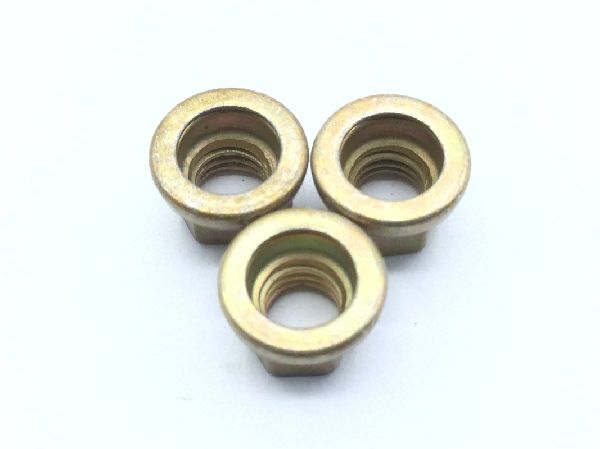

KFN542-3 Self-Locking Assembled Washer Nut

KFN542-3 Self-Locking Assembled Washer Nut (2)

KFN542-3 Self-Locking Assembled Washer Nut (3)

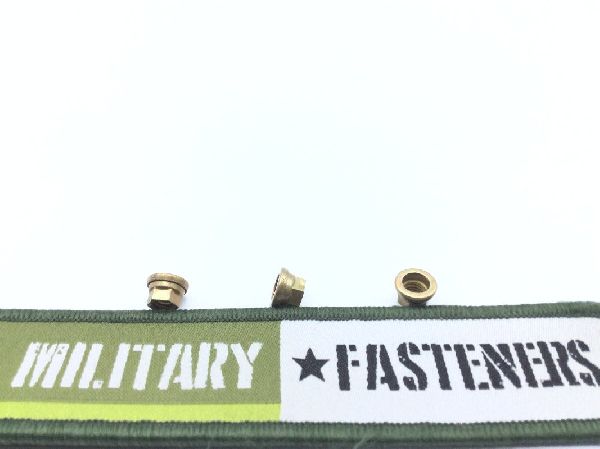

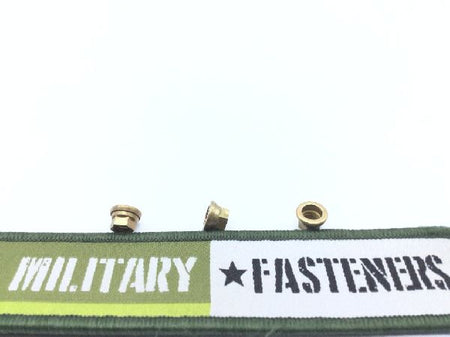

KFN542-3 Self-Locking Assembled Washer Nut (4)

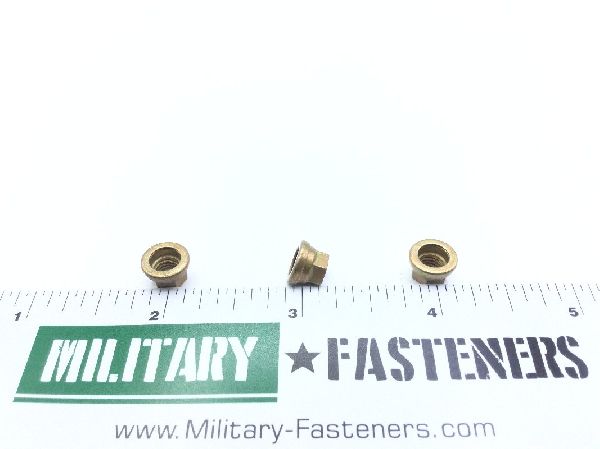

KFN542-3 Self-Locking Assembled Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

KFN542-3 Self-Locking Assembled Washer Nut

ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel washer

Surface Treatment

Cl2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Counterbore Diameter: 0.223 inches nut and 0.228 inches nut
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-s-5626 military specification 1st material response nut or mil-s-5000 military specification 2nd material response nut or mil-s-6049 military specification 3rd material response nut
Nut Counterbore Depth: 0.097 inches nut
Nut Style: Flat with turned up edge
Overall Height: 0.243 inches
Special Features: Rockwell c scale 40 min and rockwell c scale 45 max washer
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: 0.363 inches
Width Across Flats: Between 0.243 inches and 0.251 inches
