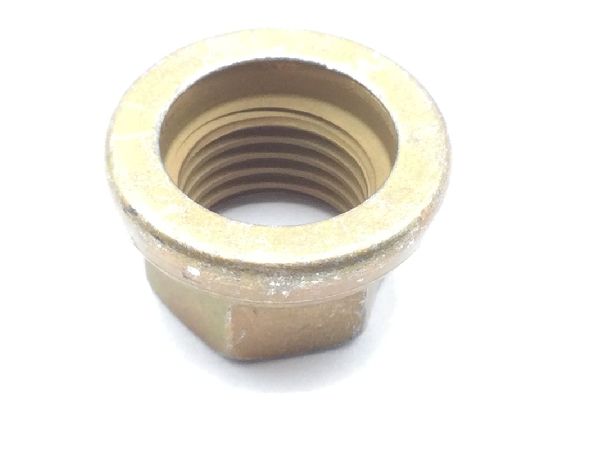

KFN542-6 Self-Locking Assembled Washer Nut

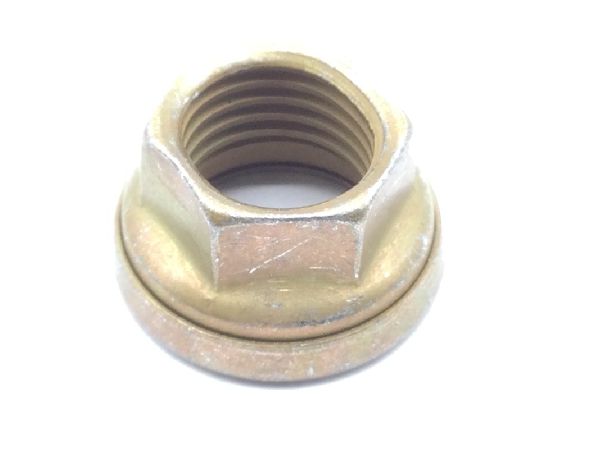

KFN542-6 Self-Locking Assembled Washer Nut (2)

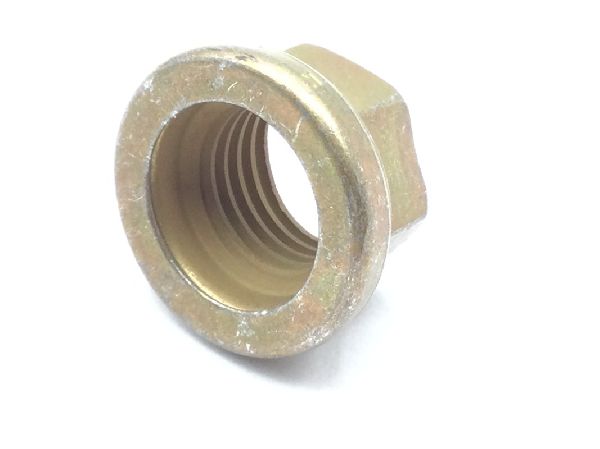

KFN542-6 Self-Locking Assembled Washer Nut (3)

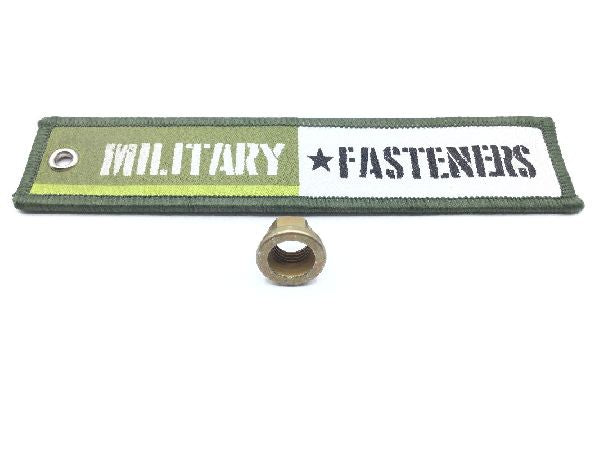

KFN542-6 Self-Locking Assembled Washer Nut (4)

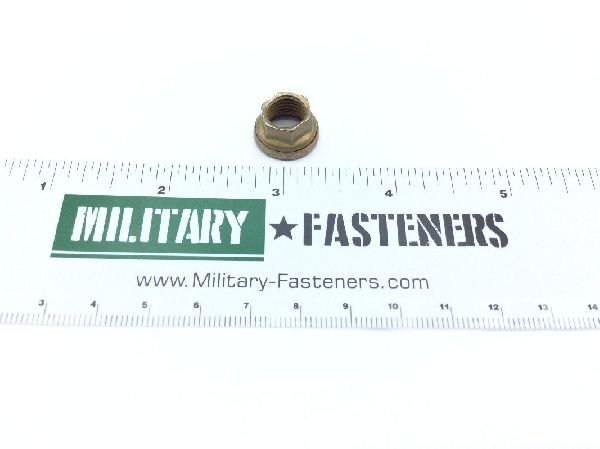

KFN542-6 Self-Locking Assembled Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

KFN542-6 Self-Locking Assembled Washer Nut

ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $6.07

Units per Pack 10

Price per Pack $60.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $60.70

Add item to quote

Material

Steel nut

Surface Treatment

Cl 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Counterbore Diameter: 0.412 inches nut and 0.417 inches nut
Hardness Rating: Between 39.0 rockwell c and 48.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-s-5626 military specification 1st material response nut or mil-s-5000 military specification 2nd material response nut or mil-s-6049 military specification 3rd material response nut
Nut Counterbore Depth: 0.087 inches nut and 0.097 inches nut
Nut Style: Flat with turned up edge
Overall Height: 0.355 inches
Special Features: Rockwell c scale 40 min and rockwell c scale 45 max washer
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.660 inches
Width Across Flats: Between 0.430 inches and 0.439 inches
