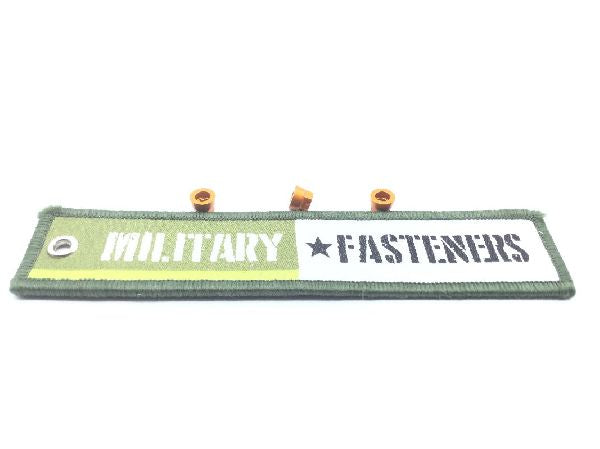

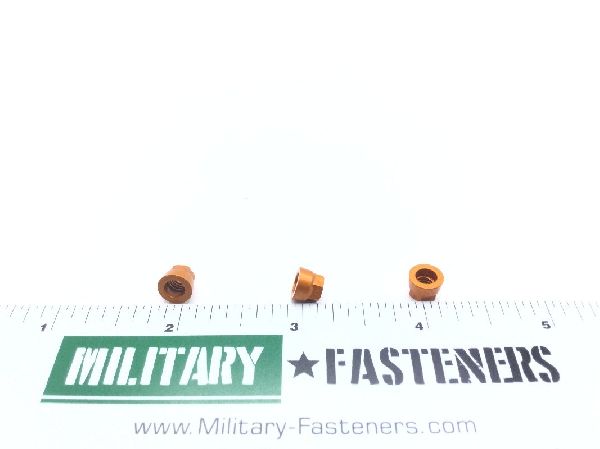

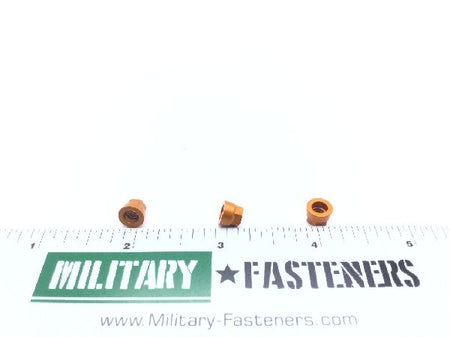

KFN587-08 Plain Extended Hexagon Washer Nut

KFN587-08 Plain Extended Hexagon Washer Nut (2)

KFN587-08 Plain Extended Hexagon Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

KFN587-08 Plain Extended Hexagon Washer Nut

ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.91

Units per Pack 25

Price per Pack $47.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $47.75

Add item to quote

Material

Aluminum alloy 7075

Surface Treatment

Mil-h-6088 military specification single treatment response

Thread Class

3b

Thread Series

Unjc

Thread Size

0.164 inches

End Application: Aircraft cl-215
Material Specification: Qq-a-225/9 federal specification single material response
Nut Style: Hexagon
Overall Height: 0.23 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: Between 0.288 inches and 0.292 inches
Washer Thickness: Between 0.082 inches and 0.092 inches
Width Across Flats: Between 0.212 inches and 0.220 inches
Lubrication: Dry film lubricant
