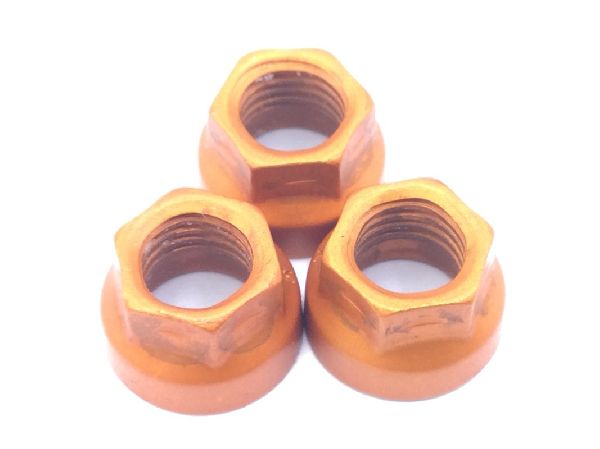

KFN587-4 Plain Extended Hexagon Washer Nut

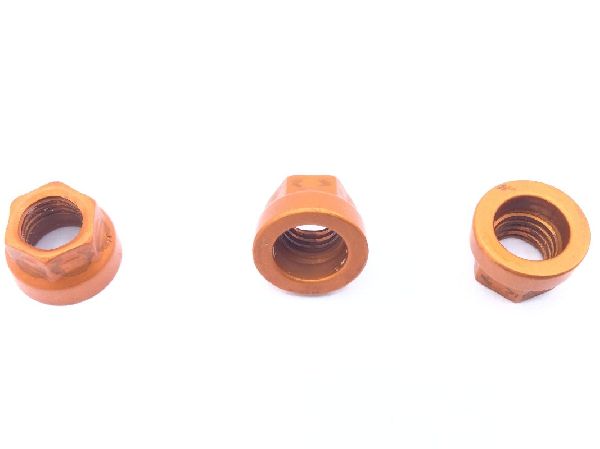

KFN587-4 Plain Extended Hexagon Washer Nut (2)

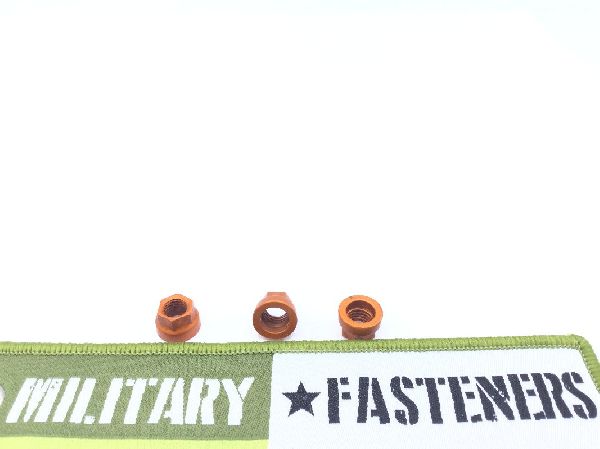

KFN587-4 Plain Extended Hexagon Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

KFN587-4 Plain Extended Hexagon Washer Nut

ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Mil-h-6088 military specification single treatment response

Thread Class

3b

Thread Series

Unjc

Thread Size

0.250 inches

End Application: Aircraft cl-215
Material Specification: Qq-a-225/9 federal specification single material response
Nut Style: Hexagon
Overall Height: 0.280 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: Between 0.408 inches and 0.422 inches
Washer Thickness: Between 0.087 inches and 0.097 inches
Width Across Flats: Between 0.305 inches and 0.313 inches
Lubrication: Dry film lubricant
