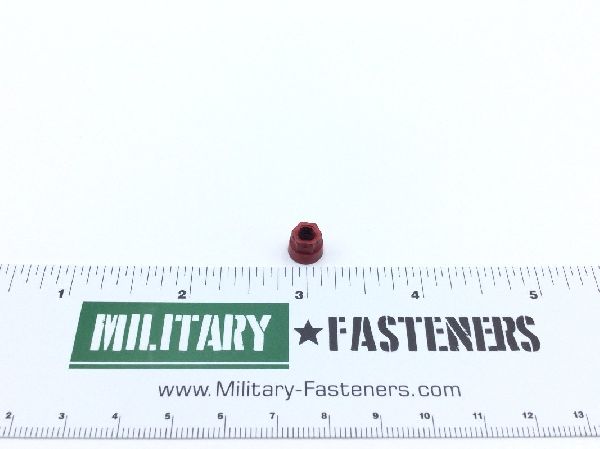

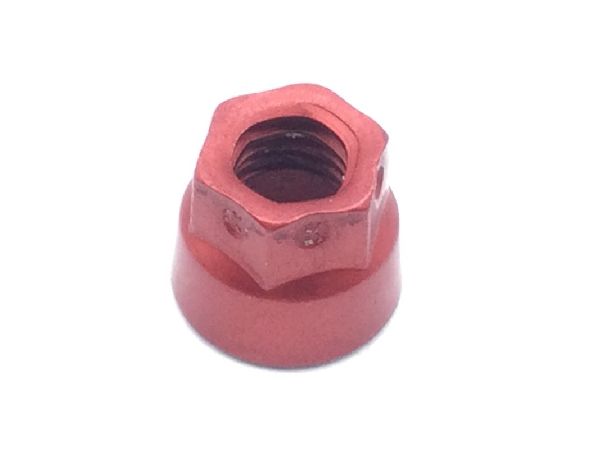

KFN600-3 Plain Extended Hexagon Washer Nut

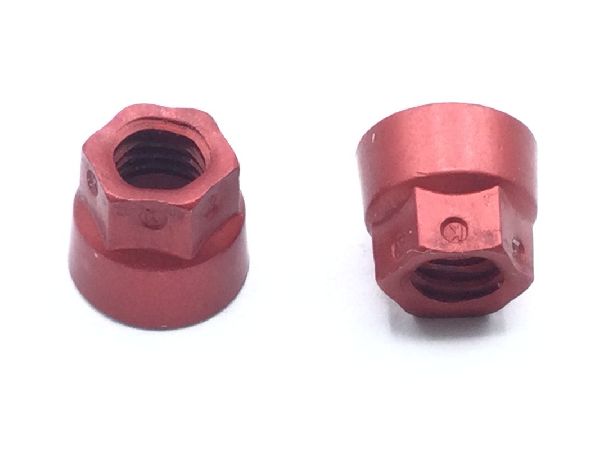

KFN600-3 Plain Extended Hexagon Washer Nut (2)

KFN600-3 Plain Extended Hexagon Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

KFN600-3 Plain Extended Hexagon Washer Nut

ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Counterbore Diameter: 0.224 inches first end and 0.228 inches first end
Locking Feature: Prevailing torque all metal design
Material Specification: T73 federal specification single material response qq-a-225/9
Nut Counterbore Depth: 0.102 inches first end and 0.112 inches first end
Nut Style: Hexagon
Overall Height: 0.280 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: Between 0.318 inches and 0.322 inches
Width Across Flats: Between 0.243 inches and 0.251 inches
Lubrication: Dry film lubricant
