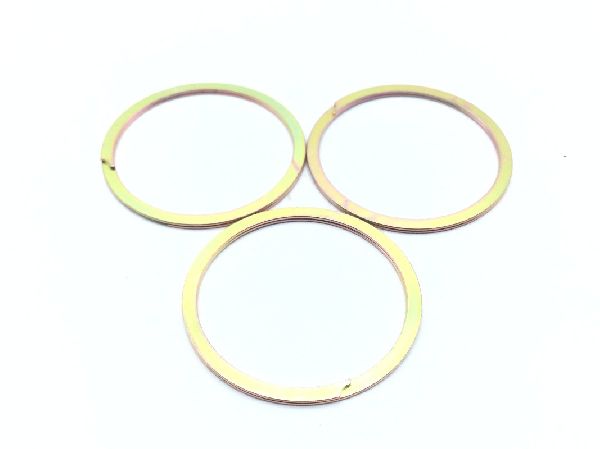

M2742630125B Retaining Ring

M2742630125B Retaining Ring (2)

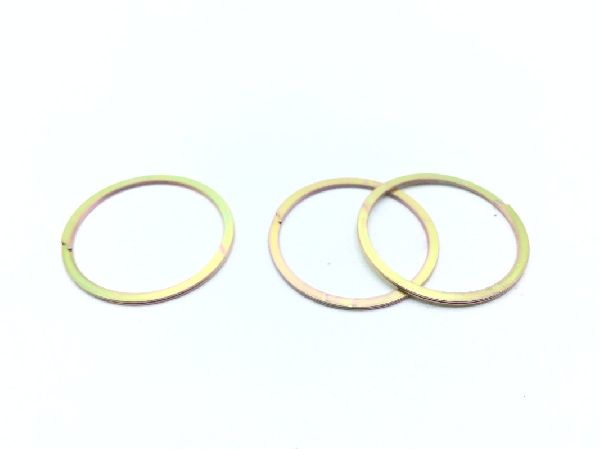

M2742630125B Retaining Ring (3)

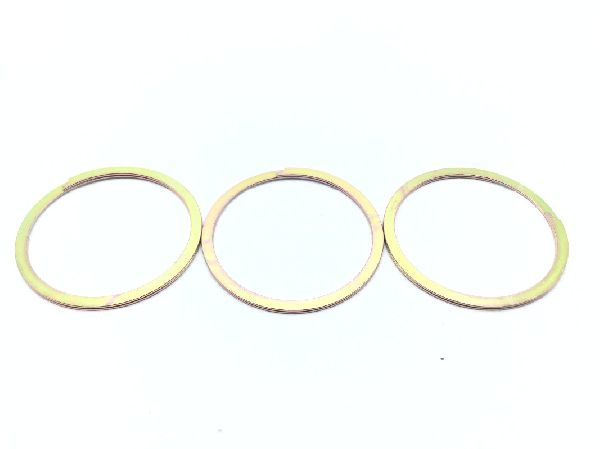

M2742630125B Retaining Ring (4)

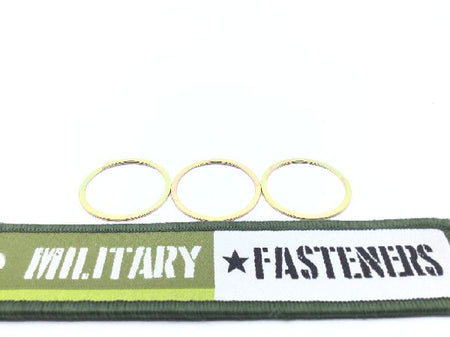

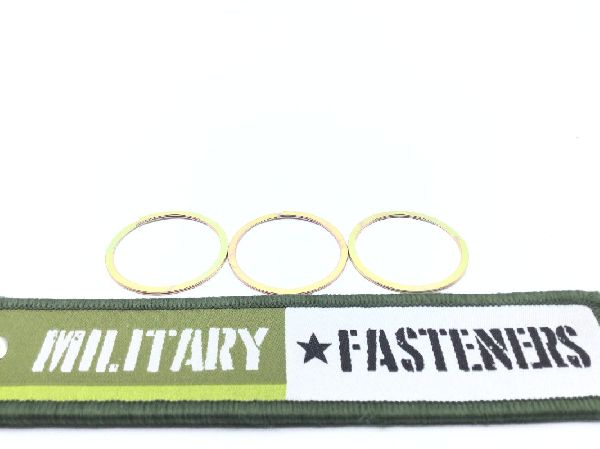

M2742630125B Retaining Ring (5)

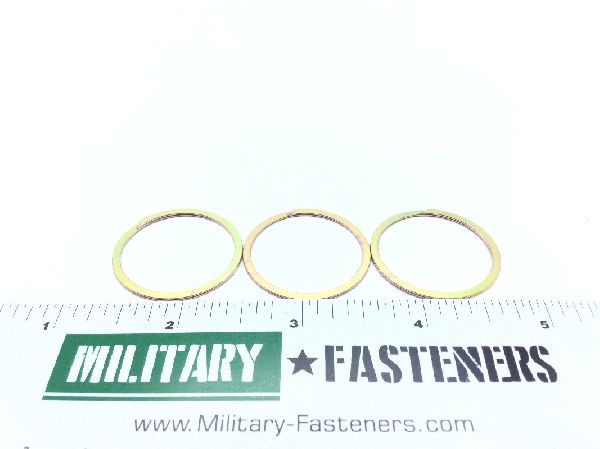

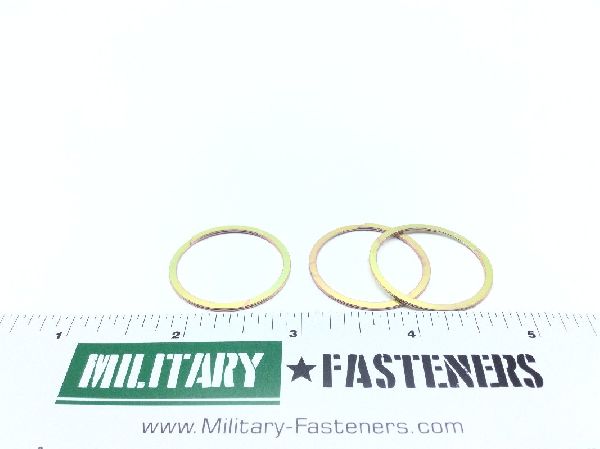

M2742630125B Retaining Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

M2742630125B Retaining Ring

ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $4.99

Units per Pack 10

Price per Pack $49.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $49.90

Add item to quote

Material

Fed federal standard no. 66 aisi 1070 thru 1090 or sae 1070 thru 1090 steel

Casehardening Indicator: Not casehardened
Cross Sectional Shape: Double oval
Inside Diameter: 1.030 inches
Major Thickness: 0.039 inches
Material Hardness Rating: Between 64.0 rockwell superficial 30-n and 71.8 rockwell superficial 30-n
Nondefinitive Specification/std Data: 2 type and 1 class and 1.125 in. size
Outside Diameter: 1.180 inches
Ring Style: Spiral
Strength Rating: 211000.0 pounds per square inch tensile
Usage Design: Internal
