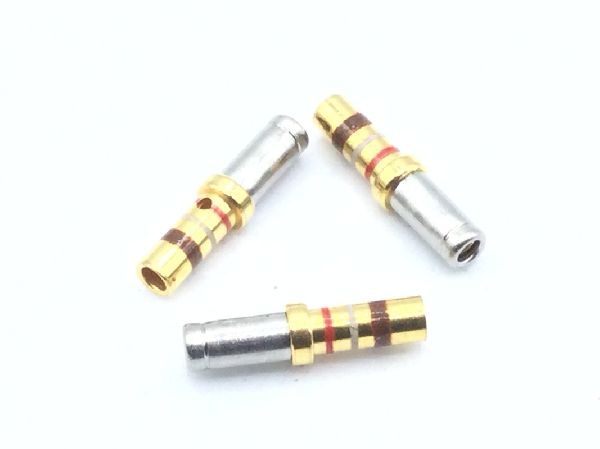

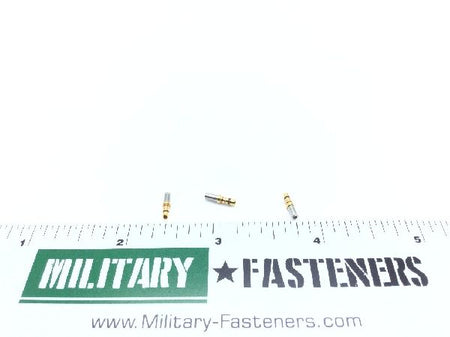

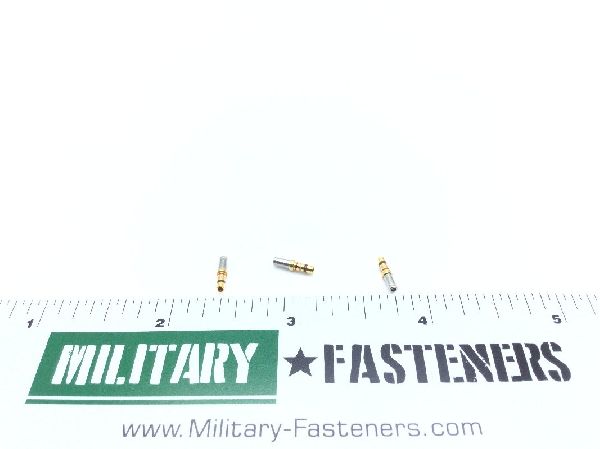

M39029/22-192 Electrical Contact

ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $0.86

Units per Pack 50

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Material

Copper alloy body

Overall Length

0.349 inches

Cable Entrance Diameter: Between 0.046 inches and 0.048 inches
Crimping Tool Identifying Number: M22520/7-01
Current Rating In Amps: 7.5
Identification Code Color: Brown and white and red
Mounting Method: Force fit
Overall Diameter: Between 0.091 inches and 0.094 inches
Pin Accommodation Diameter: Between 0.042 inches and 0.044 inches
Pin Accommodation Length: Between 0.120 inches and 0.137 inches
Precious Material: Silver
Precious Material And Location: Outer surfaces silver
Precious Material And Weight: Troy 0.005 silver grains
Special Features: Basic item identification number bin-192.
Specification Data: 81349-mil-c-39029/22 government specification
Style Designator: Socket contact
Terminal Type And Quantity: 1 crimp end opposite contact
Test Data Document: Etc.).
