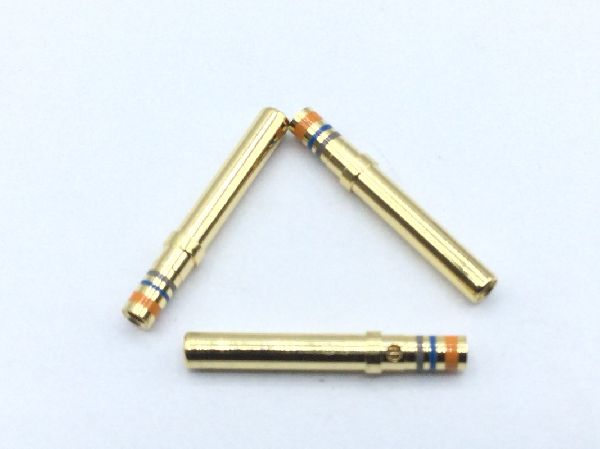

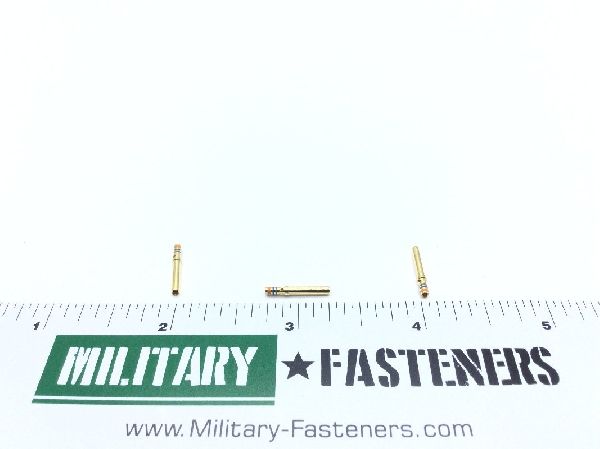

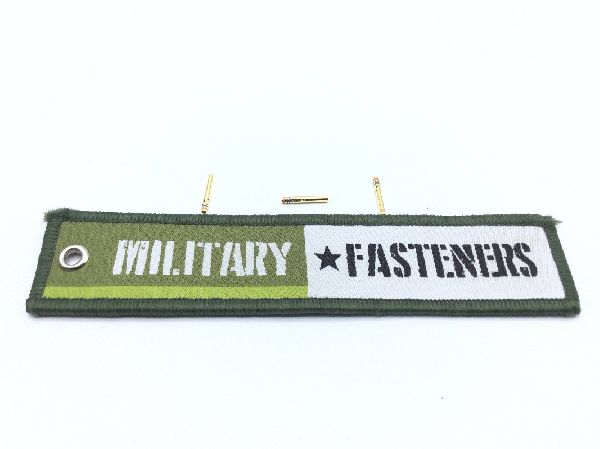

M39029/63-368 Electrical Contact

ECCN: 9A991

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Copper body

Overall Length

Between 0.526 inches and 0.546 inches

Surface Treatment

Mil-g-45204 military specification single treatment response contact

Cable Entrance Diameter: Between 0.069 inches and 0.073 inches
Crimping Tool Identifying Number: M22520/2-01
Current Rating In Amps: 7.5
Identification Code Color: Orange and blue and gray
Iii Style Designator: Socket contact
Mounting Method: Any acceptable
Overall Diameter: Between 0.082 inches and 0.085 inches
Pin Accommodation Diameter: Between 0.043 inches and 0.046 inches
Pin Accommodation Length: Between 0.290 inches and 0.310 inches
Precious Material: Gold
Precious Material And Location: Contact surface gold
Precious Material And Weight: Troy 0.005 gold grains
Special Features: Basic item identification number bin-368
Specification Data: 81343-sae as39029/63 government specification
Terminal Type And Quantity: 1 crimp axially at one end
Test Data Document: Etc.).
