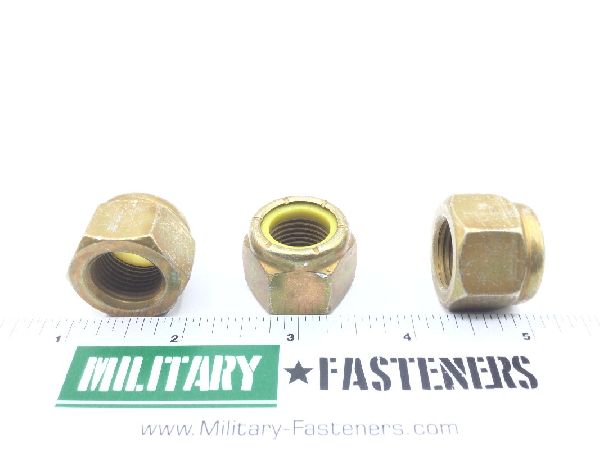

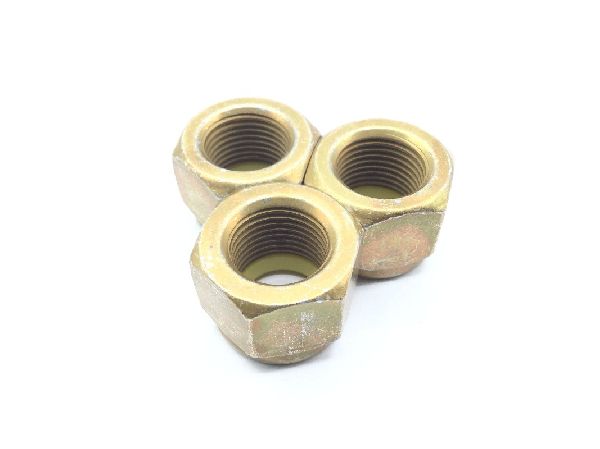

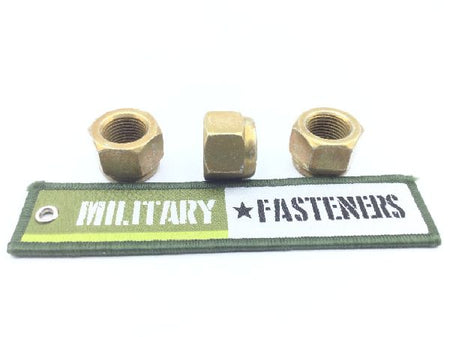

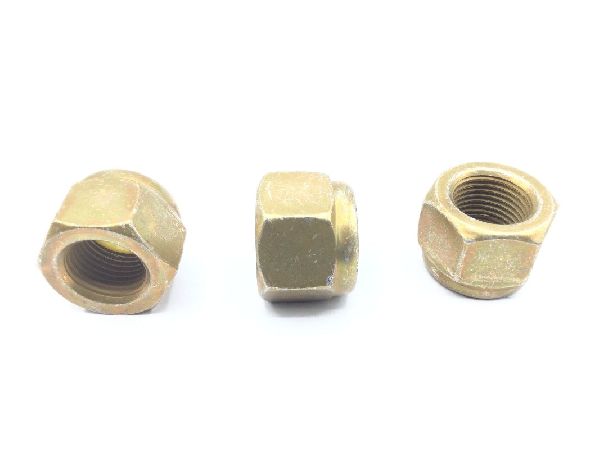

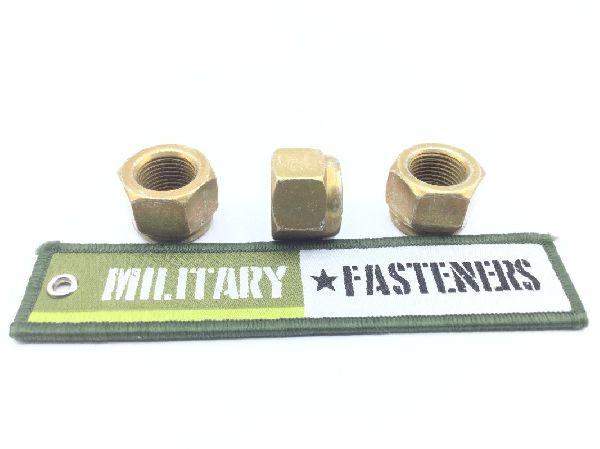

M45913/1-10FG5C Self-Locking Hexagon Nut
M45913/1-10FG5C Self-Locking Hexagon Nut (2)
M45913/1-10FG5C Self-Locking Hexagon Nut (3)
M45913/1-10FG5C Self-Locking Hexagon Nut (4)
M45913/1-10FG5C Self-Locking Hexagon Nut
M45913/1-10FG5C Self-Locking Hexagon Nut (2)
M45913/1-10FG5C Self-Locking Hexagon Nut (3)
M45913/1-10FG5C Self-Locking Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

M45913/1-10FG5C Self-Locking Hexagon Nut

ECCN
EAR99
Schedule
7318.16.0000
Price per Unit $1.46
Units per Pack 25
Price per Pack $36.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $36.50
Add item to quote
Material
Steel
Surface Treatment
Class 2 or 3 federal specification single treatment response except insert type 2 qq-p-416
Thread Class
2b
Thread Series
Unf (fine thread)
Thread Size
0.625 inches
Locking Feature
Prevailing torque with nonmetallic insert
Material Specification
Gr 5 assn standard single material response nut sae j995
Nut Height
Between 0.735 inches and 0.765 inches
Nut Style
Hexagon
Surface Finish
125 microinches
Surface Type
Chamfered or washer faced
Tempurature Rating
250 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
18
Width Across Flats
Between 0.922 inches and 0.940 inches
Lubrication
Dry film lubricant
