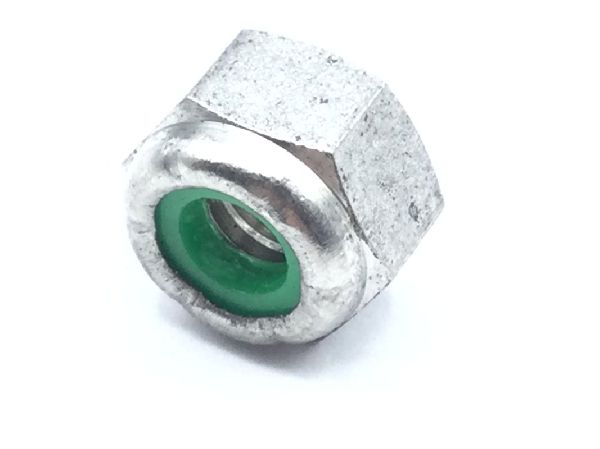

M45913/1-4CS6 Self-Locking Hexagon Nut

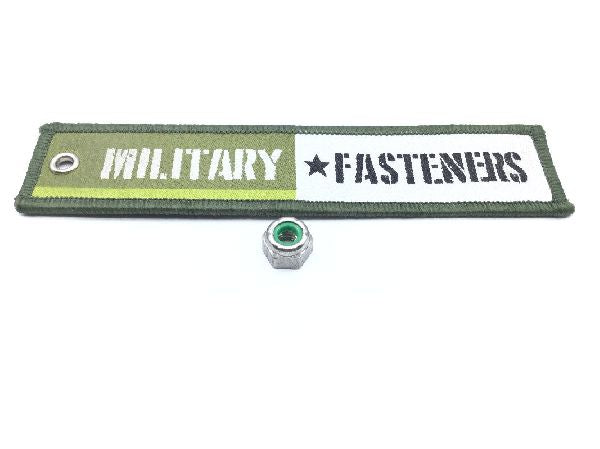

M45913/1-4CS6 Self-Locking Hexagon Nut (2)

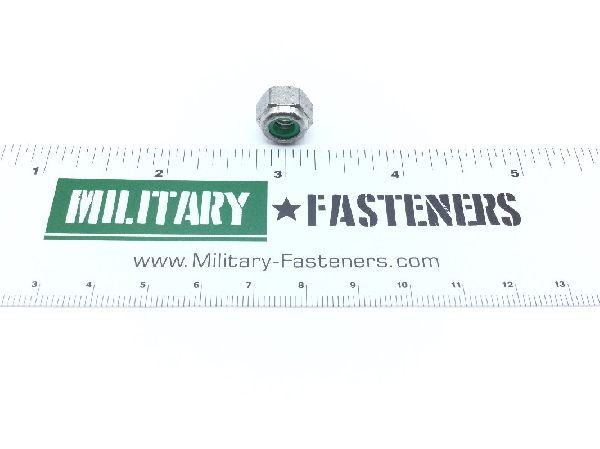

M45913/1-4CS6 Self-Locking Hexagon Nut (3)

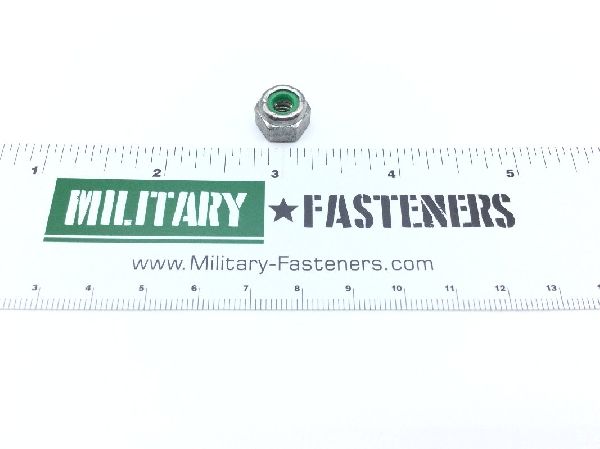

M45913/1-4CS6 Self-Locking Hexagon Nut (4)
M45913/1-4CS6 Self-Locking Hexagon Nut
M45913/1-4CS6 Self-Locking Hexagon Nut (2)
M45913/1-4CS6 Self-Locking Hexagon Nut (3)
M45913/1-4CS6 Self-Locking Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

M45913/1-4CS6 Self-Locking Hexagon Nut

ECCN
EAR99
Schedule
7318.16.0000
Price per Unit $11.01
Units per Pack 5
Price per Pack $55.05
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $55.05
Add item to quote
Material
Steel
Thread Class
2b
Thread Series
Unc (coarse thread)
Thread Size
0.250 inches
Bearing Surface Type
Chamfered
End Application
Wld-1 maint d;mrap rg-33
Locking Feature
Prevailing torque with nonmetallic insert
Material Specification
Sae-j995 assn standard single material response except insert
Nut Height
Between 0.298 inches and 0.328 inches
Nut Style
Hexagon
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
20
Width Across Flats
Between 0.428 inches and 0.439 inches
