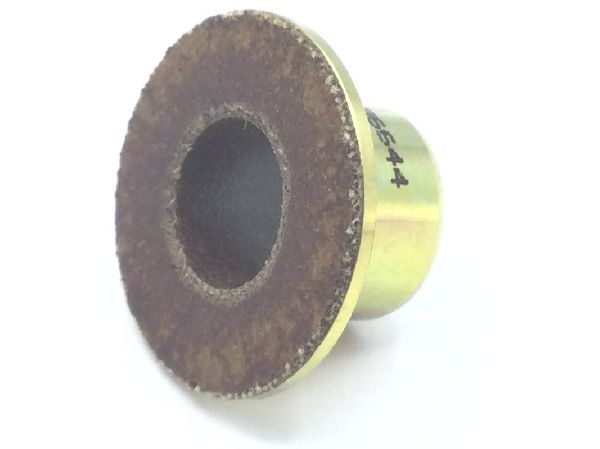

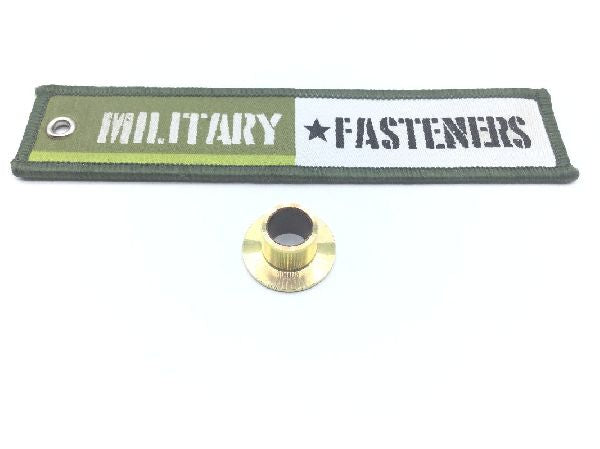

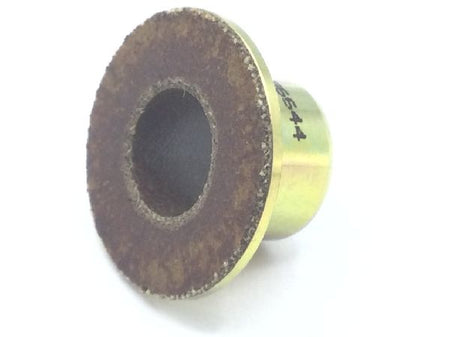

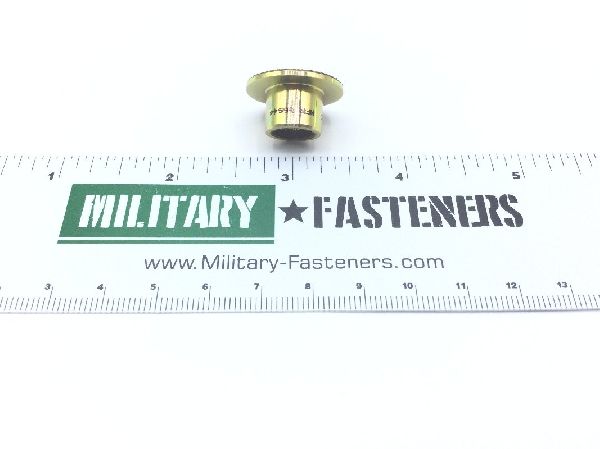

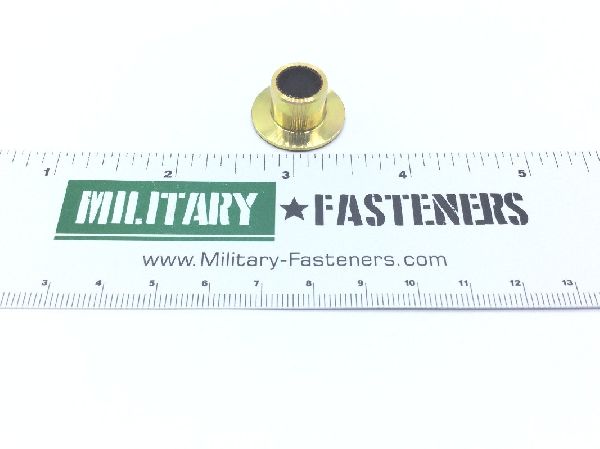

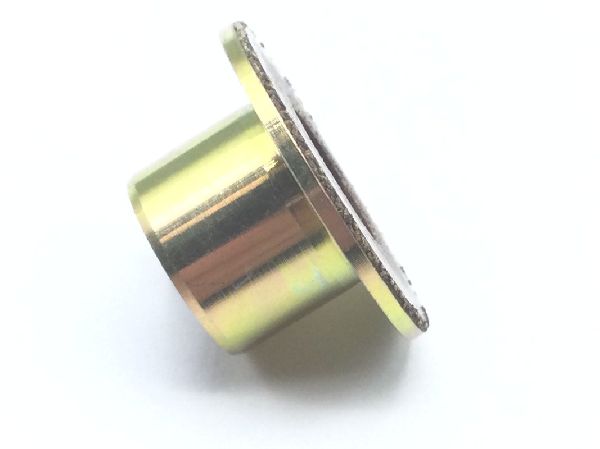

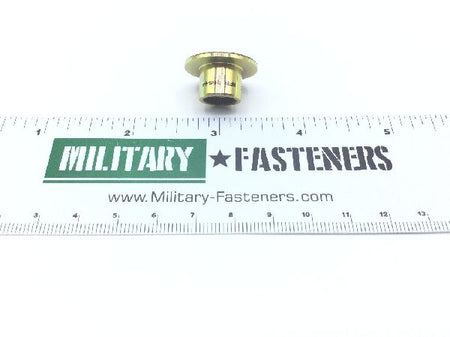

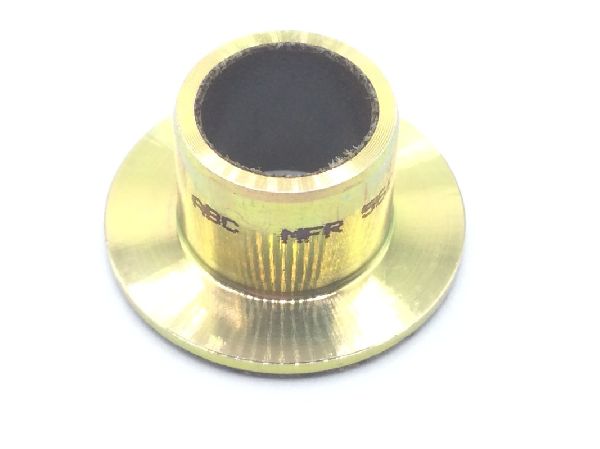

M81934/2-06A012 Bearing

ECCN: 2A991.e
Schedule: 8483.30.8090

Price per Unit $63.68

Units per Pack 1

Price per Pack $63.68

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.68

Add item to quote

Material

Aluminum alloy 2024 outer layer

Overall Length

Between 0.4225 inches and 0.4375 inches

Surface Treatment

Mil-c-5541 military specification single treatment response outer layer

Body Inside Diameter: Between 0.3755 inches and 0.3765 inches
Body Outside Diameter: Between 0.5007 inches and 0.5017 inches
Corner Shape: Undercut left flange body corner
Flange Outside Diameter: Between 0.8550 inches and 0.8750 inches
Flange Width: Between 0.0575 inches and 0.0625 inches
Material Specification: T851 federal specification single material response outer layer t8511 federal specification single material response outer layer or qq-a-225/6 qq-a-200/3
Special Features: Plastic liner bonded to left end surface of flange
Style Designator: external flange one end solid
Surface Finish: 63.0 microinches outside diameter surface of body
