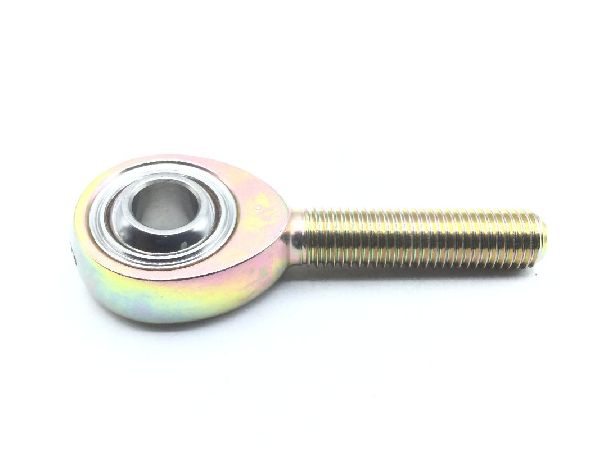

M81935/1-05 Rod End Bearing

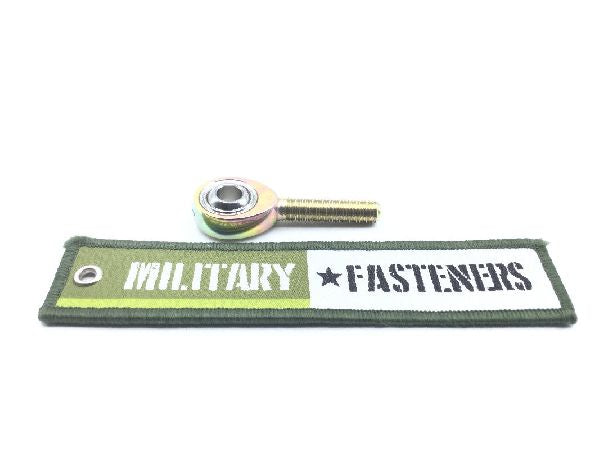

M81935/1-05 Rod End Bearing (2)

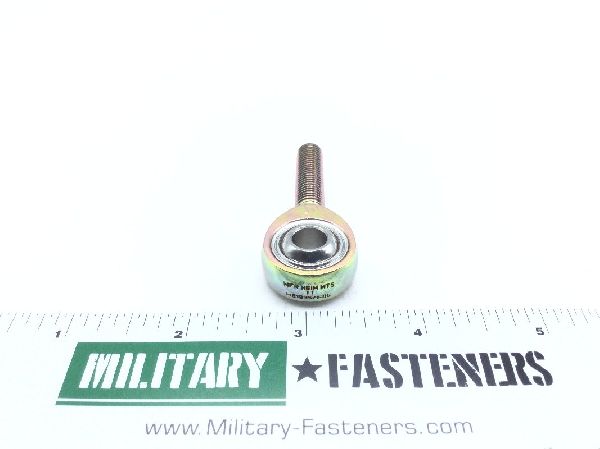

M81935/1-05 Rod End Bearing (3)

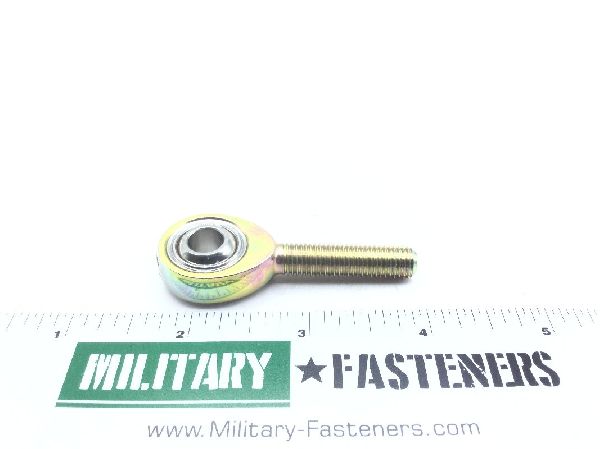

M81935/1-05 Rod End Bearing (4)
M81935/1-05 Rod End Bearing
M81935/1-05 Rod End Bearing (2)
M81935/1-05 Rod End Bearing (3)
M81935/1-05 Rod End Bearing (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

M81935/1-05 Rod End Bearing

ECCN
EAR99
Schedule
8483.30.8090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Plastic race liner
Overall Length
Between 2.3100 inches and 2.3400 inches
Surface Treatment
Class2 federal specification single treatment response rod end body type 2 qq-p-416
Thread Class
3a
Bore Center To Shank End Distance
Between 1.8650 inches and 1.8850 inches
Bore Diameter
Between 0.3120 inches and 0.3125 inches
Inner Member Width
Between 0.4350 inches and 0.4370 inches
Material Specification
Ams 5643 assn standard single material response race insert
Outer Member Outside Diameter
Between 0.8900 inches and 0.9100 inches
Outer Member Width
Between 0.3220 inches and 0.3320 inches
Shank Style
Externally threaded
Shank Thread Length
Between 1.1560 inches and 1.2180 inches
Static Radial Load Rating
7180 pounds
Style Designator
Ball type
Thread Diameter
0.3750 inches
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unjf (fine thread with external controlled root radius)
