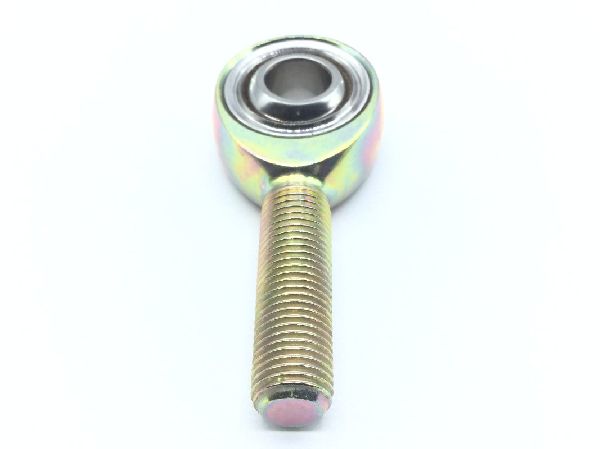

M81935/1-06 Rod End Bearing

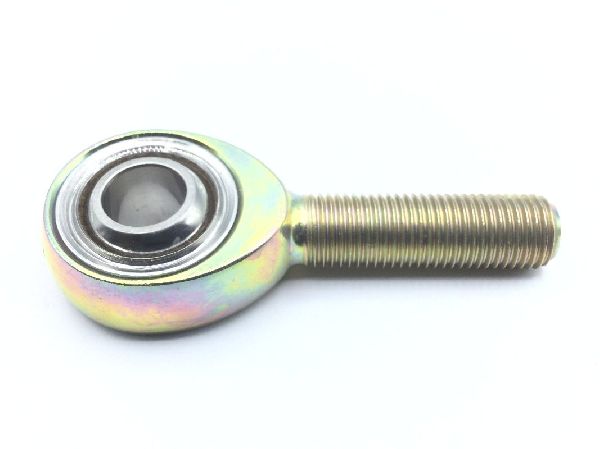

M81935/1-06 Rod End Bearing (2)

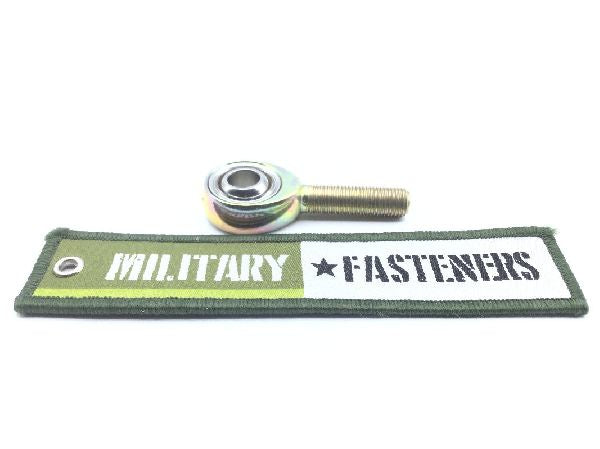

M81935/1-06 Rod End Bearing (3)

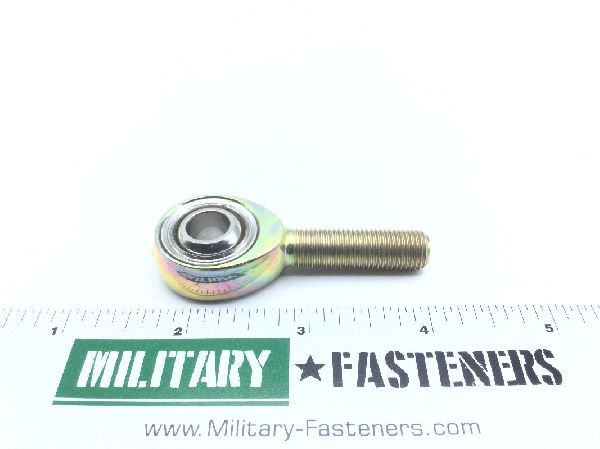

M81935/1-06 Rod End Bearing (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

M81935/1-06 Rod End Bearing

ECCN
EAR99
Schedule
8483.30.8090
Price per Unit $141.75
Units per Pack 1
Price per Pack $141.75
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $141.75
Add item to quote
Material
Steel comp 630 race insert
Overall Length
Between 2.4355 inches and 2.4655 inches
Thread Class
3a
Bore Center To Shank End Distance
Between 1.9280 inches and 1.9480 inches
Bore Diameter
Between 0.3745 inches and 0.3750 inches
Inner Member Width
Between 0.4980 inches and 0.5000 inches
Outer Member Outside Diameter
Between 1.0150 inches and 1.0350 inches
Outer Member Width
Between 0.4110 inches and 0.4210 inches
Shank Style
Externally threaded
Shank Thread Length
Between 1.1560 inches and 1.2180 inches
Static Radial Load Rating
8550 pounds
Style Designator
Ball type
Thread Diameter
0.375 inches
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unjf (fine thread with external controlled root radius)
