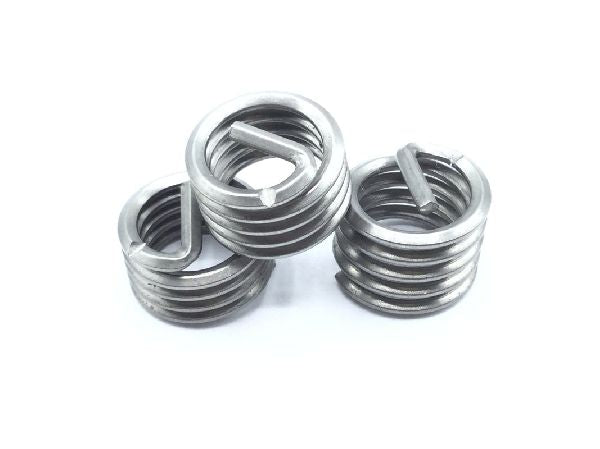

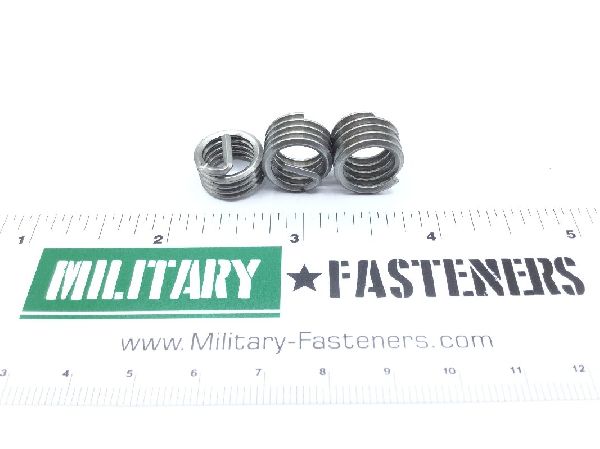

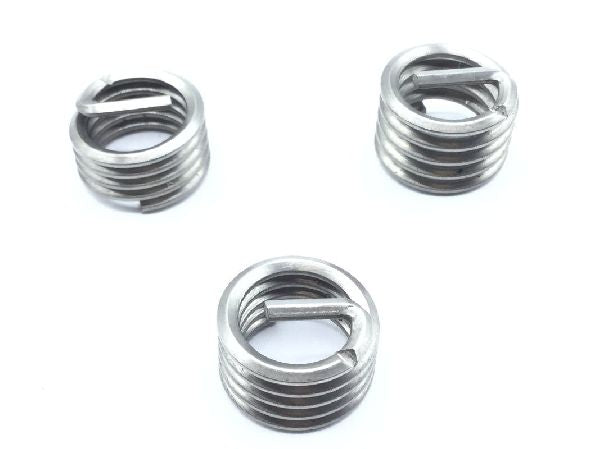

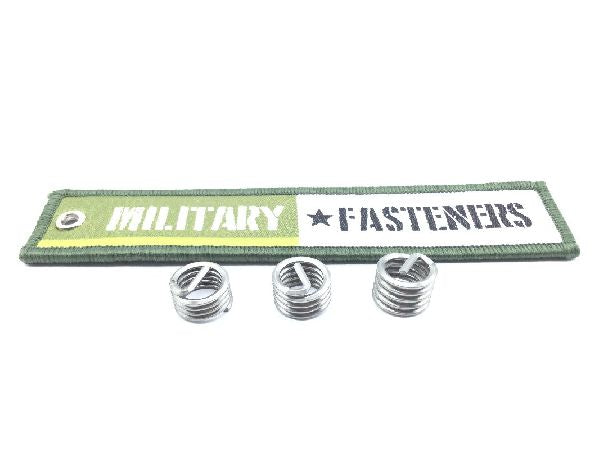

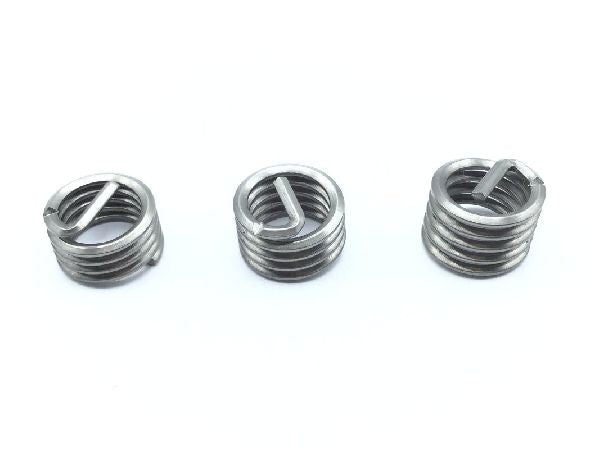

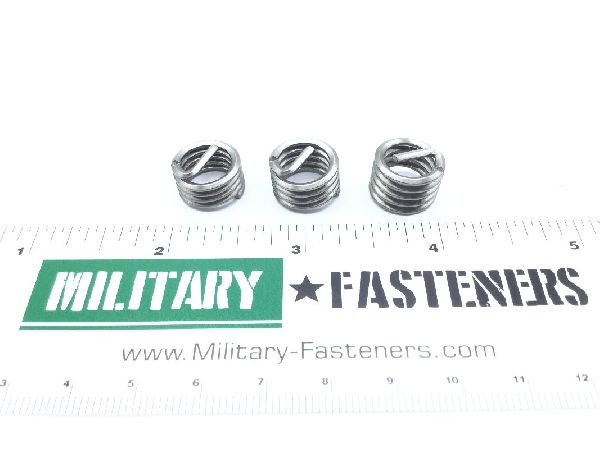

MS122084 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Material

Stainless steel err-100

Thread Size

0.4375 inches

Insert Size: 0.526 inch min 0.551 inch max
Length: 0.438 inches
Material Specification: Ams 72345 assn standard single material response err-100
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 14
Thread Series Designator: Unc (coarse thread)
