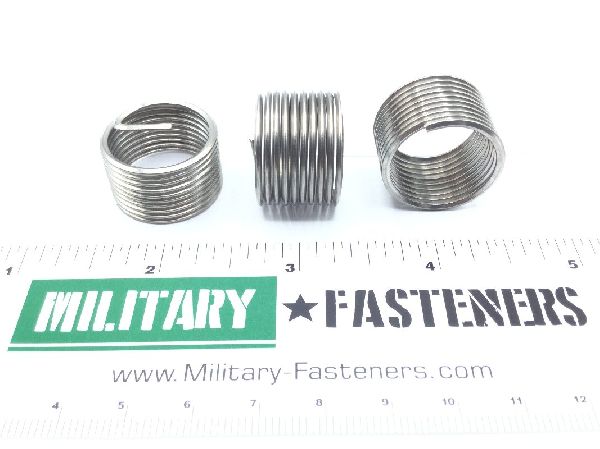

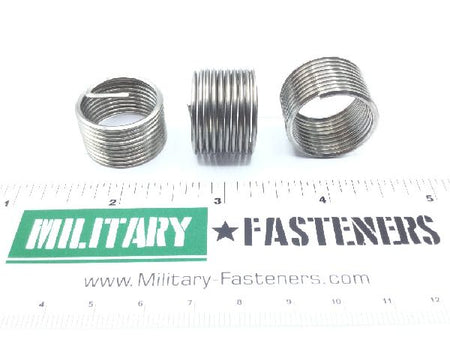

MS124663 Screw Thread Insert

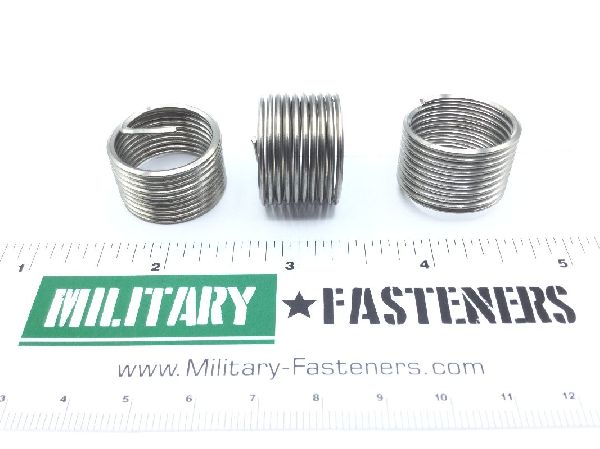

MS124663 Screw Thread Insert (2)

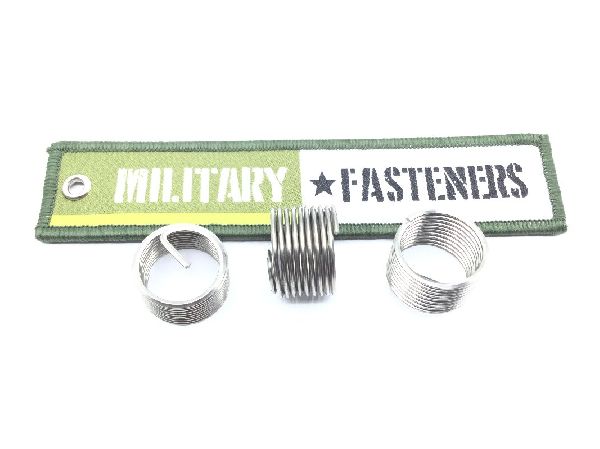

MS124663 Screw Thread Insert (3)

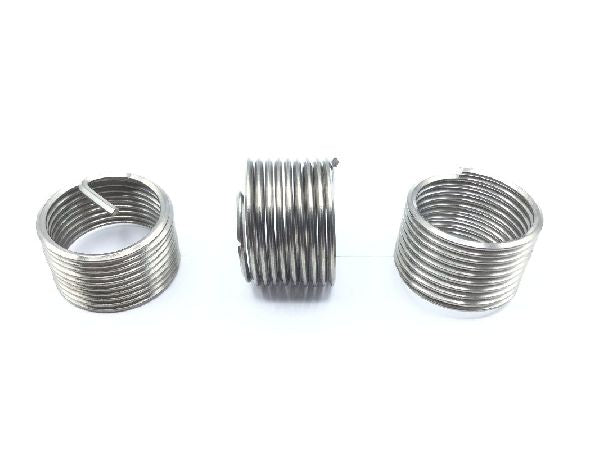

MS124663 Screw Thread Insert (4)

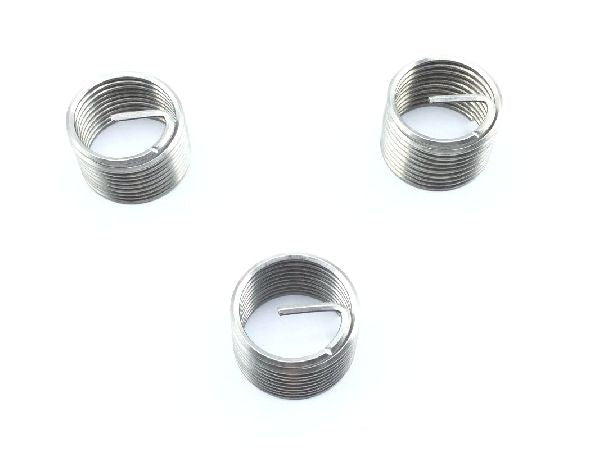

MS124663 Screw Thread Insert (5)

MS124663 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS124663 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.33

Units per Pack 20

Price per Pack $66.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $66.60

Add item to quote

Material

Stainless Steel

Thread Class

3b

Thread Size

0.750 inches

Insert Size: 0.901 in. max free od 0.876 in. min
Length: 0.75 inches
Material Specification: Ams 7245 assn standard single material response
Style Designator: Coil
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unf (fine thread)
