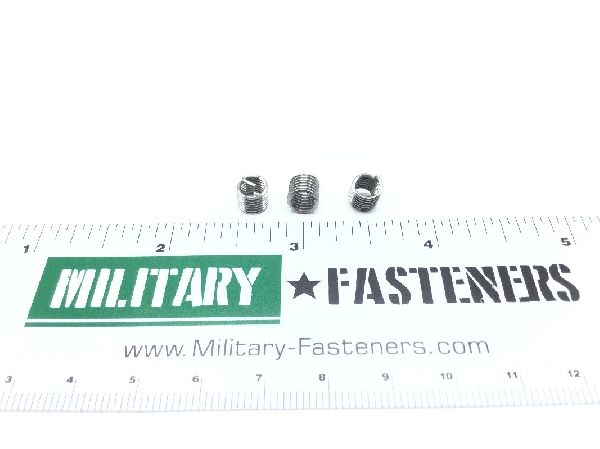

MS124695 Screw Thread Insert

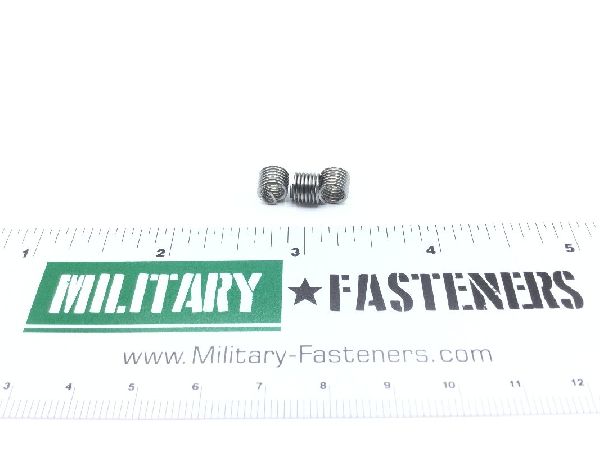

MS124695 Screw Thread Insert (2)

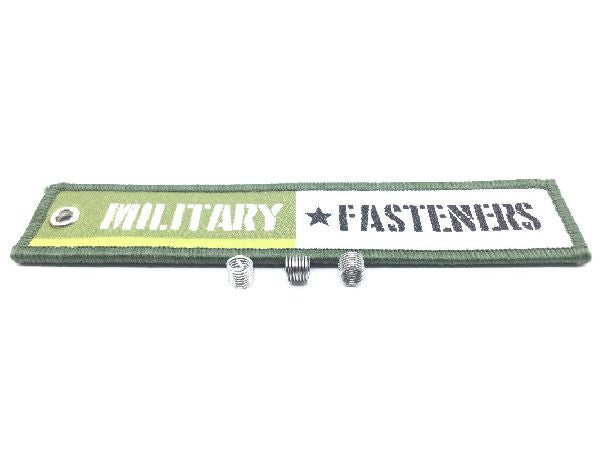

MS124695 Screw Thread Insert (3)

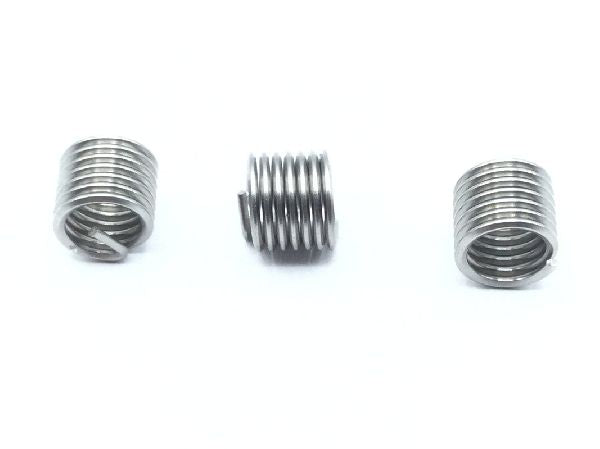

MS124695 Screw Thread Insert (4)

MS124695 Screw Thread Insert (5)

MS124695 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS124695 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.56

Units per Pack 100

Price per Pack $56.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $56.00

Add item to quote

Material

Stainless Steel

Thread Size

0.190 inches

Criticality Code Justification: Feat
Insert Size: 0.236 in min 0.256 in max
Length: 0.285 inches
Special Features: The item is a flight safety critical aircraft part (fscap).
Style Designator: Coil
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
