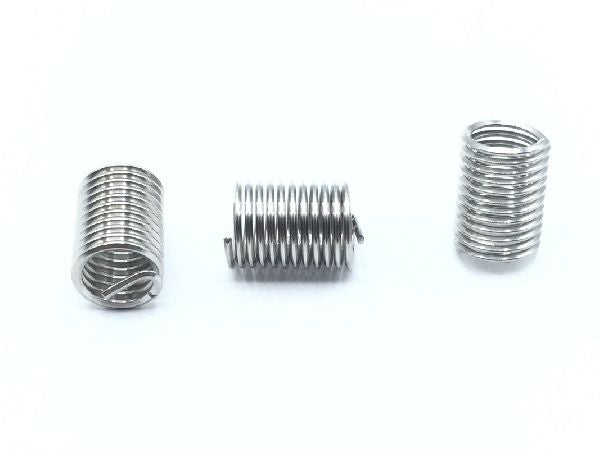

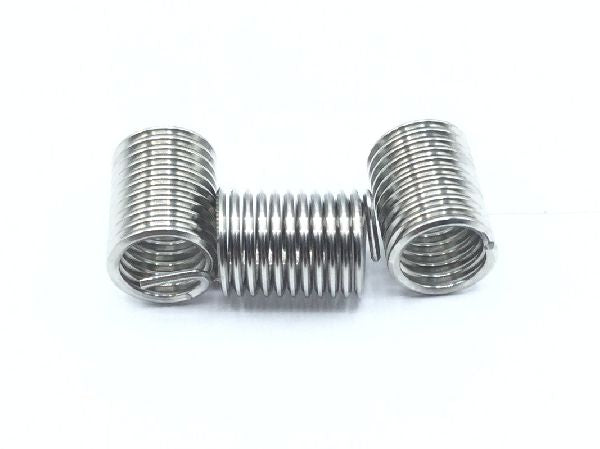

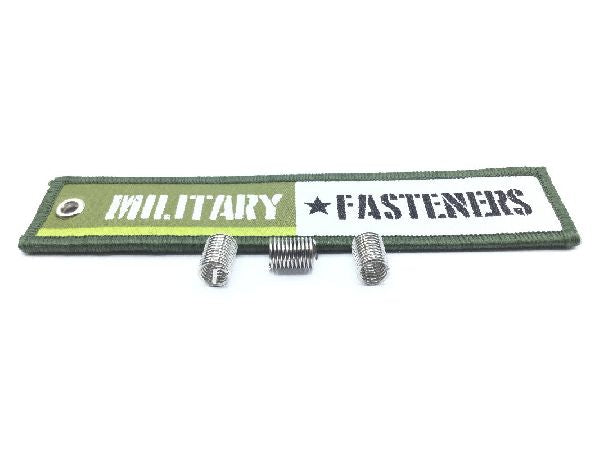

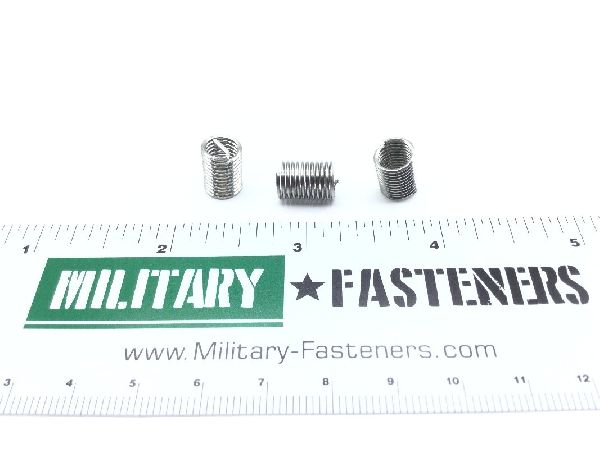

MS124736 Screw Thread Insert

NSN: 5325-00-290-4497
Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Thread Class

3b

Thread Size

0.250 inches

Insert Size: 0.326 in. max free od 0.306 in. min
Length: 0.50 inches
Material Specification: Ams 7245 assn standard single material response
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 0.38 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
