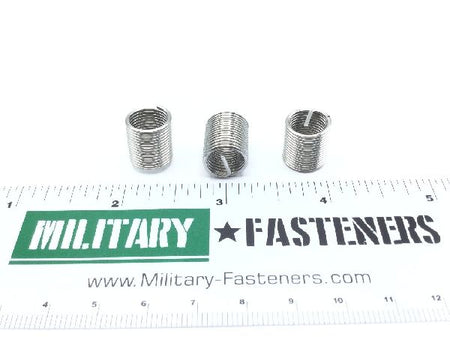

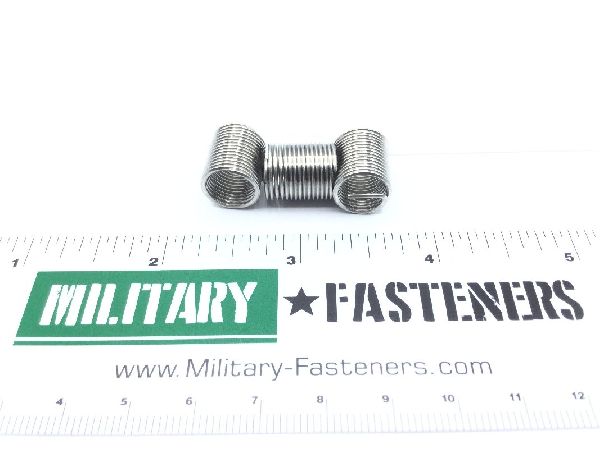

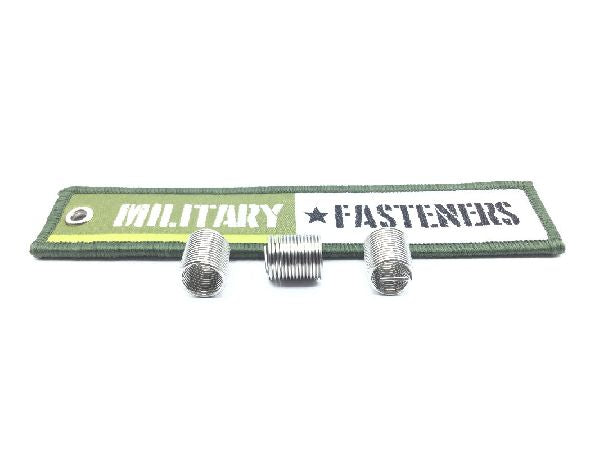

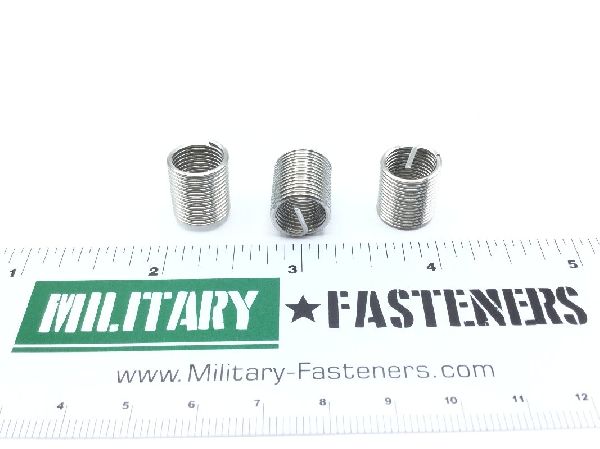

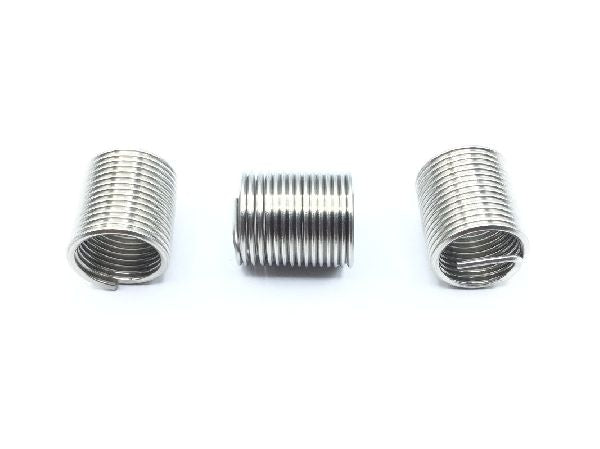

MS124738 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Thread Class

2b

Thread Size

0.375 inches

Insert Size: 0.448 in. min and 0.468 in. max
Length: 0.750 inches
Material Specification: Ams 7245 assn standard single material response
Style Designator: Coil
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
