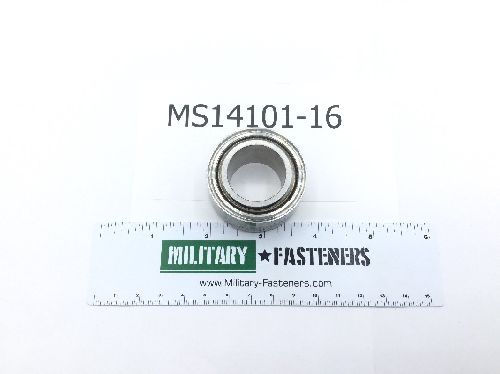

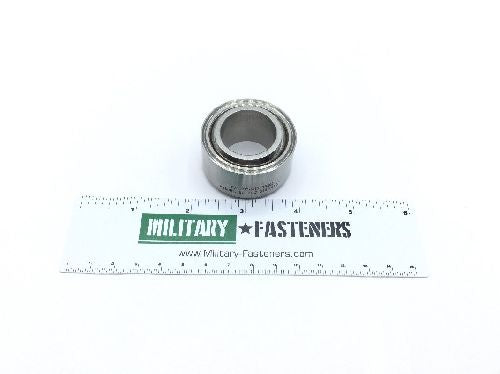

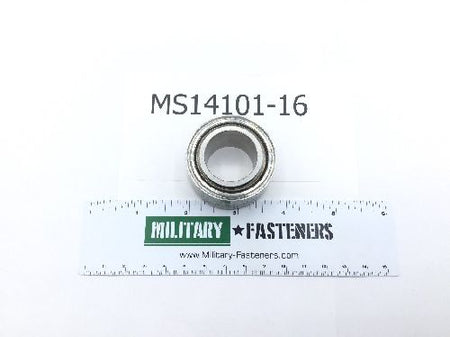

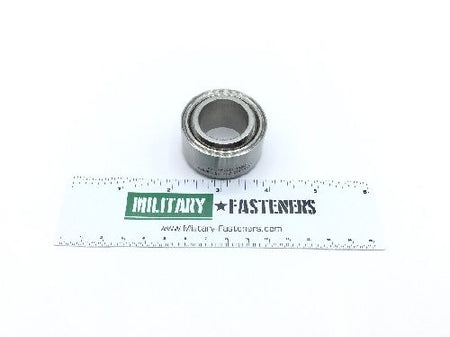

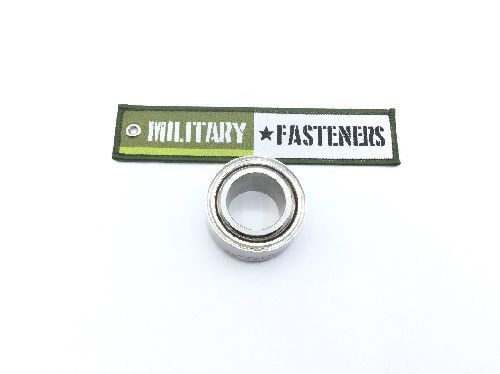

MS14101-16 Plain Self-Aligning Bearing
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.5030
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Bore Diameter
- Between 0.9995 inches and 1.00 inches
- Hardness Rating
- 28.0 rockwell c outer race member and 37.0 rockwell c outer race member
- Inner Member Width
- Between 0.998 inches and 1.00 inches
- Lubrication Feature
- Self-lubricating liner race liner
- Material Specification
- Ams 5630 assn standard 1st material response inner member or ams 5629 assn standard 2nd material response inner member
- Outer Member Outside Diameter
- Between 1.7495 inches and 1.75 inches
- Outer Member Width
- Between 0.792 inches and 0.802 inches
- Special Features
- Optional inner race member mterial ph13-8 hardened to rc 43.0 min to rc 47.0 max
- Static Radial Load Rating
- 82200 pounds
- Style Designator
- With insert and/or liner with staking groove
