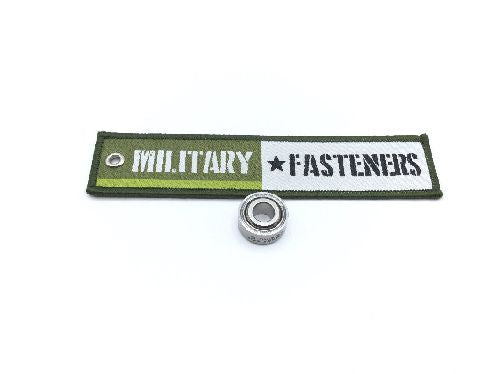

MS14101-5 Plain Self-Aligning Bearing (2)
MS14101-5 Plain Self-Aligning Bearing (3)

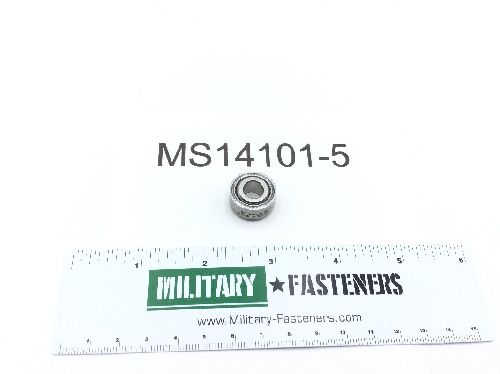

MS14101-5 Plain Self-Aligning Bearing (4)
MS14101-5 Plain Self-Aligning Bearing
MS14101-5 Plain Self-Aligning Bearing (2)
MS14101-5 Plain Self-Aligning Bearing (3)
MS14101-5 Plain Self-Aligning Bearing (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14101-5 Plain Self-Aligning Bearing

Product Series
MS
ECCN
EAR99
Schedule
8483.30.8090
Price per Unit $23.05
Units per Pack 2
Price per Pack $46.10
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:
Total Packs 1
Total Price $46.10
Add item to quote
Material
Steel comp 630 outer ring
Bore Diameter
Between 0.312 inches and 0.3125 inches
Inner Member Width
Between 0.373 inches and 0.375 inches
Material Specification
Ams 5643 assn standard single material response outer ring
Outer Member Outside Diameter
Between 0.7495 inches and 0.75 inches
Outer Member Width
Between 0.276 inches and 0.286 inches
Special Features
0.662 in. diameter center of staking groove
Static Radial Load Rating
8750 pounds
Style Designator
With insert and/or liner with staking groove
