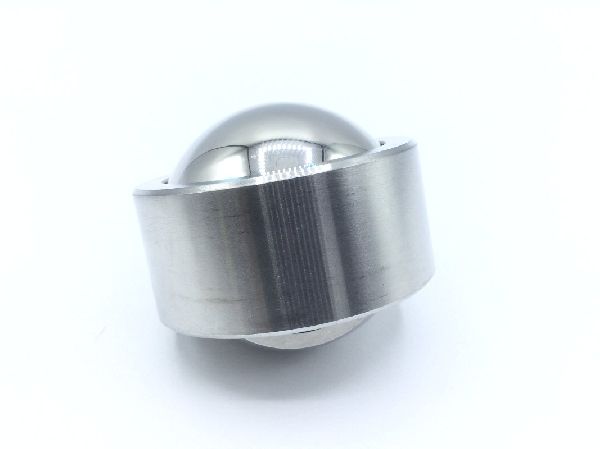

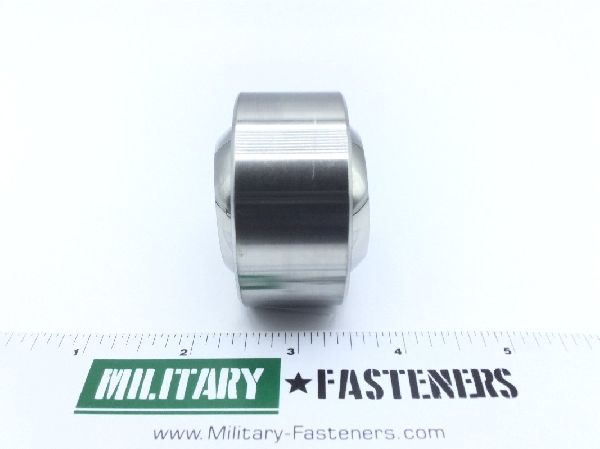

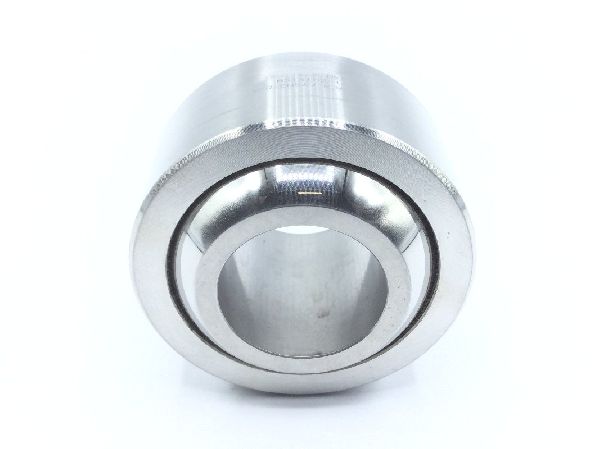

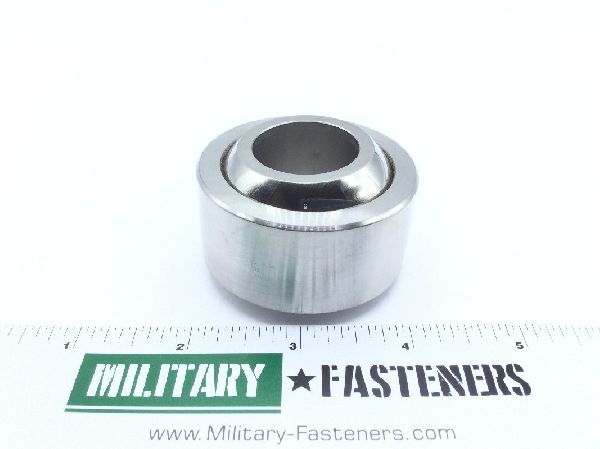

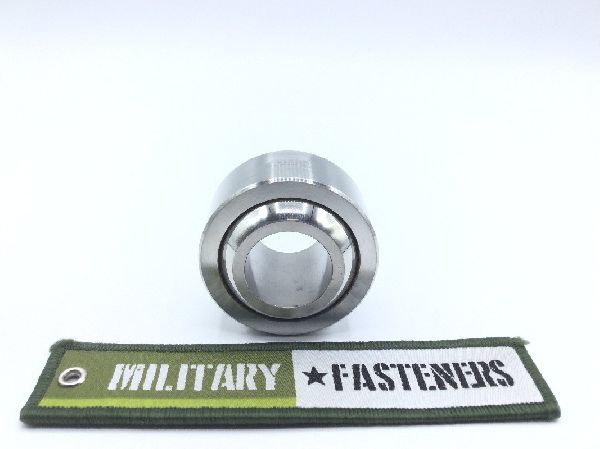

MS14102-16 Plain Self-Aligning Bearing
MS14102-16 Plain Self-Aligning Bearing (2)
MS14102-16 Plain Self-Aligning Bearing (3)
MS14102-16 Plain Self-Aligning Bearing (4)
MS14102-16 Plain Self-Aligning Bearing (5)
MS14102-16 Plain Self-Aligning Bearing (6)
MS14102-16 Plain Self-Aligning Bearing
MS14102-16 Plain Self-Aligning Bearing (2)
MS14102-16 Plain Self-Aligning Bearing (3)
MS14102-16 Plain Self-Aligning Bearing (4)
MS14102-16 Plain Self-Aligning Bearing (5)
MS14102-16 Plain Self-Aligning Bearing (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14102-16 Plain Self-Aligning Bearing

Product Series
MS
ECCN
EAR99
Schedule
7318.15.5030
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 630 outer race member
Bore Diameter
Between 0.9995 inches and 1.0000 inches
Hardness Rating
55.0 rockwell c inner member and 62.0 rockwell c inner member
Inner Member Width
Between 1.3730 inches and 1.3750 inches
Material Specification
Ams5630 assn standard single material response inner member
Outer Member Outside Diameter
Between 2.1245 inches and 2.1250 inches
Outer Member Width
Between 1.0000 inches and 1.0100 inches
Special Features
Passivation optional
Static Radial Load Rating
104000 pounds
Style Designator
With insert and/or liner
