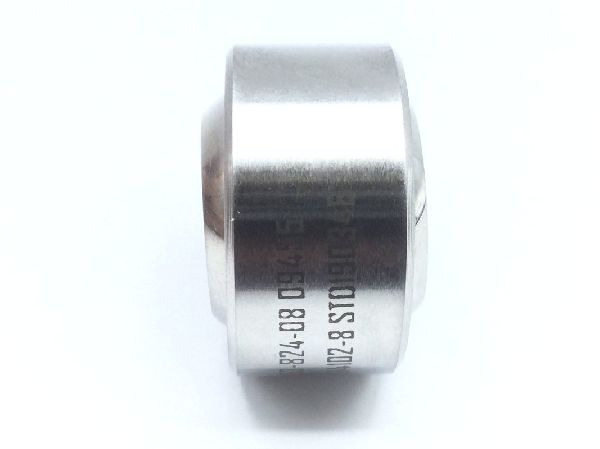

MS14102-8 Plain Self-Aligning Bearing

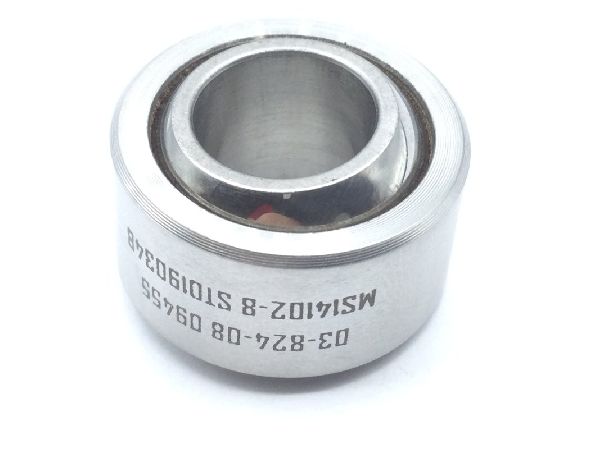

MS14102-8 Plain Self-Aligning Bearing (2)

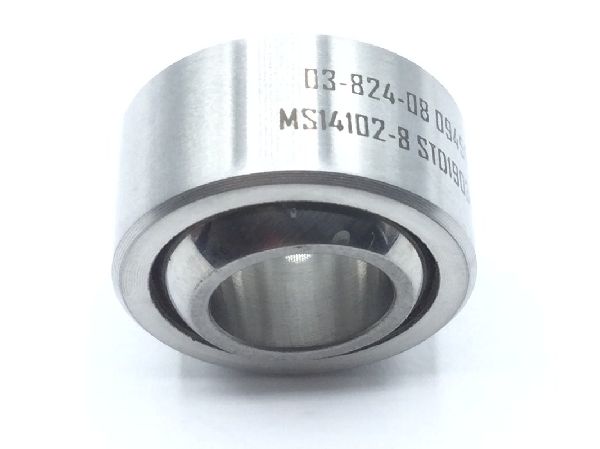

MS14102-8 Plain Self-Aligning Bearing (3)

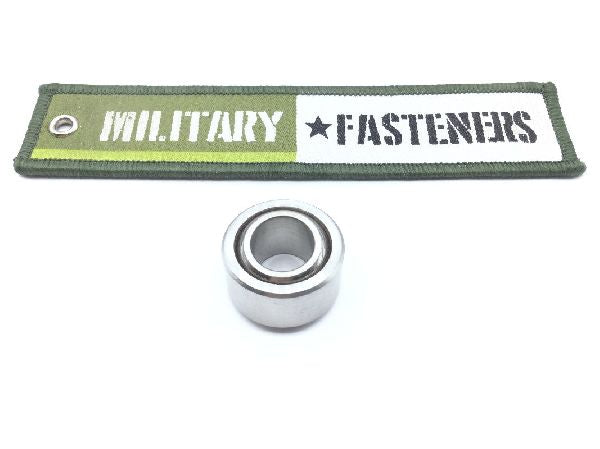

MS14102-8 Plain Self-Aligning Bearing (4)

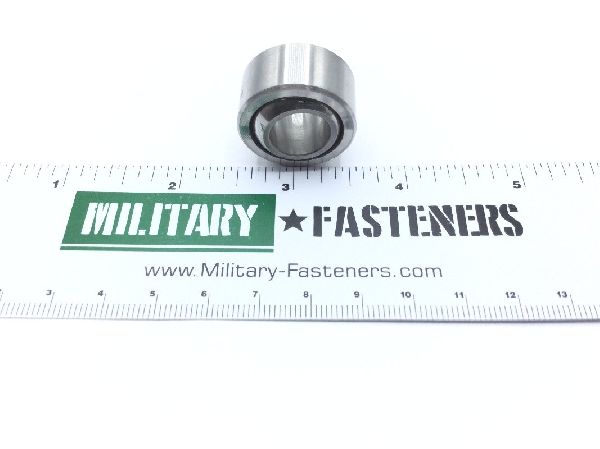

MS14102-8 Plain Self-Aligning Bearing (5)

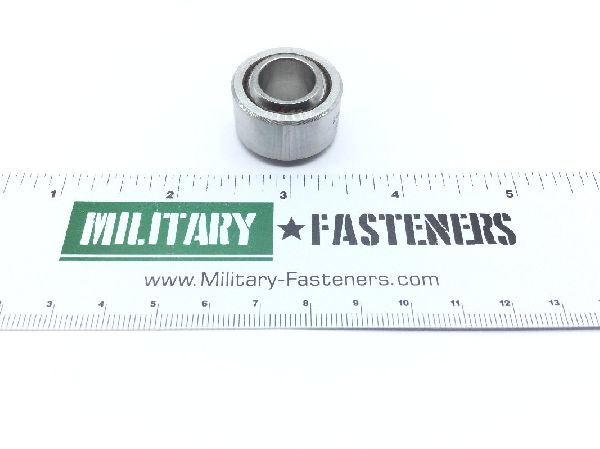

MS14102-8 Plain Self-Aligning Bearing (6)
MS14102-8 Plain Self-Aligning Bearing
MS14102-8 Plain Self-Aligning Bearing (2)
MS14102-8 Plain Self-Aligning Bearing (3)
MS14102-8 Plain Self-Aligning Bearing (4)
MS14102-8 Plain Self-Aligning Bearing (5)
MS14102-8 Plain Self-Aligning Bearing (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14102-8 Plain Self-Aligning Bearing

Product Series
MS
ECCN
EAR99
Schedule
8483.30.8090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Plastic race liner
Bore Diameter
Between 0.4995 inches and 0.50 inches
Hardness Rating
55.0 rockwell c inner member and 62.0 rockwell c inner member
Inner Member Width
Between 0.6230 inches and 0.6250 inches
Outer Member Outside Diameter
Between 0.9995 inches and 1.0000 inches
Outer Member Width
Between 0.50 inches and 0.5100 inches
Static Radial Load Rating
21400 pounds
Style Designator
With insert and/or liner
