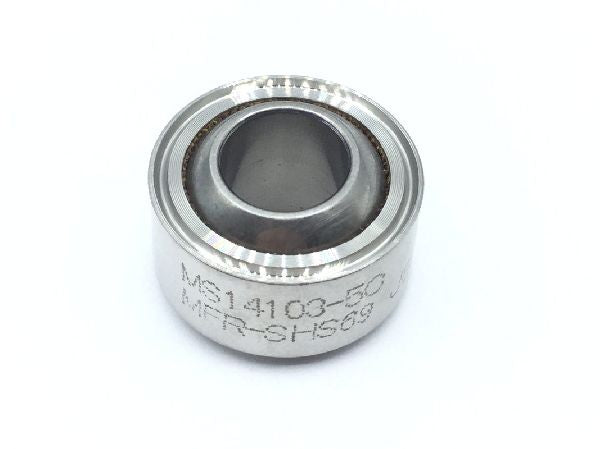

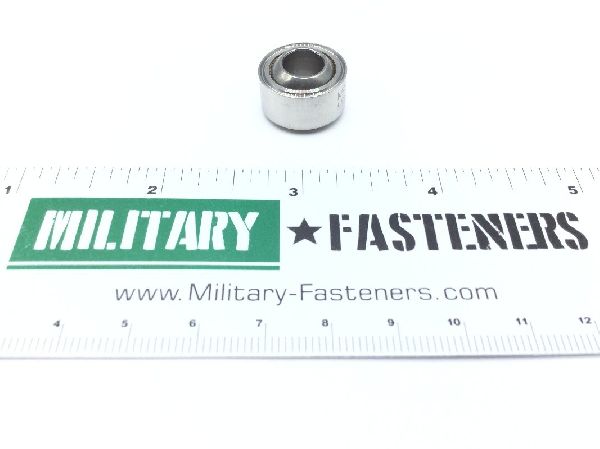

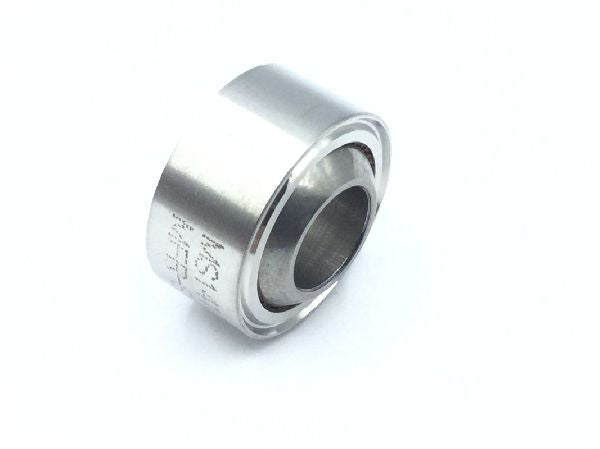

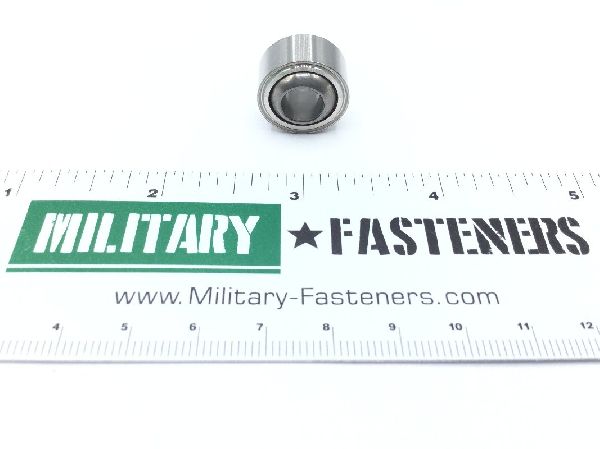

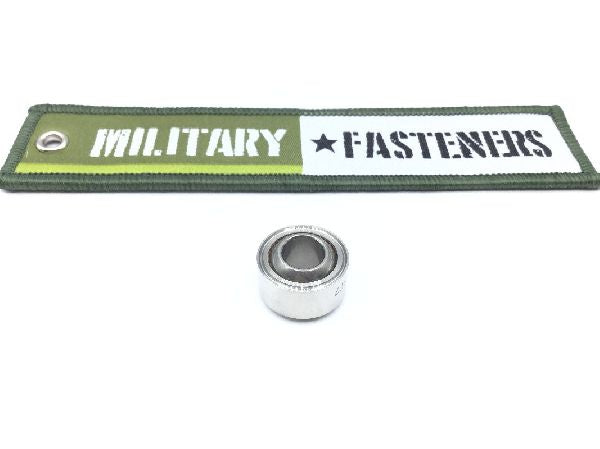

MS14103-5C Plain Self-Aligning Bearing

Product Series
MS
ECCN
EAR99
Schedule
8483.30.8090
Price per Unit $51.21
Units per Pack 1
Price per Pack $51.21
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $51.21
Add item to quote
Material
Steel comp 630 outer ring
Surface Treatment
440c federal specification single treatment response inner member qq-p-35
Bore Diameter
Between 0.3120 inches and 0.3125 inches
Hardness Rating
28.0 rockwell c outer ring and 37.0 rockwell c outer ring
Inner Member Width
Between 0.4350 inches and 0.4370 inches
Lubrication Feature
Self-lubricating liner race liner
Material Specification
Ph13-8mo assn standard single material response inner member ams5629h1000
Outer Member Outside Diameter
Between 0.6870 inches and 0.6875 inches
Outer Member Width
Between 0.3120 inches and 0.3220 inches
Specification Data
96906-ms14103 government standard
Static Radial Load Rating
9400 pounds
Style Designator
With insert and/or liner with staking groove
