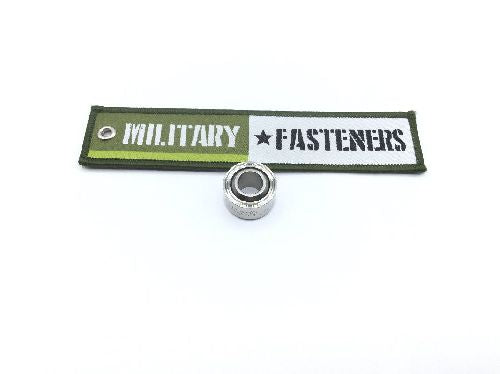

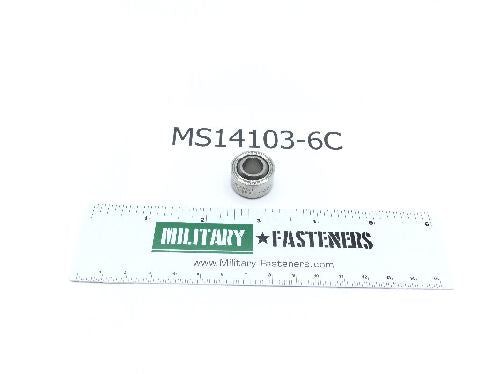

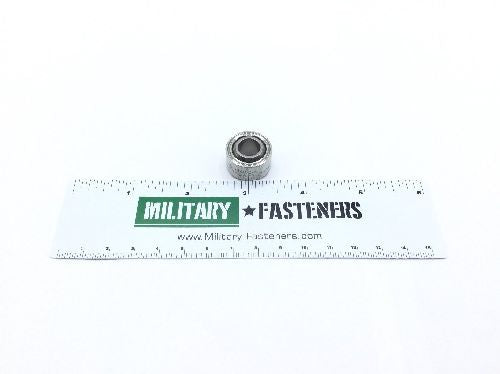

MS14103-6C Plain Self-Aligning Bearing
MS14103-6C Plain Self-Aligning Bearing (2)
MS14103-6C Plain Self-Aligning Bearing (3)
MS14103-6C Plain Self-Aligning Bearing (4)
MS14103-6C Plain Self-Aligning Bearing
MS14103-6C Plain Self-Aligning Bearing (2)
MS14103-6C Plain Self-Aligning Bearing (3)
MS14103-6C Plain Self-Aligning Bearing (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14103-6C Plain Self-Aligning Bearing

Product Series
MS
ECCN
EAR99
Schedule
7318.15.5030
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp xm-13 inner member
Surface Treatment
440c federal specification single treatment response inner member qq-p-35
Bore Diameter
Between 0.3745 inches and 0.3750 inches
Hardness Rating
28.0 rockwell c outer ring and 37.0 rockwell c outer ring
Inner Member Width
Between 0.4980 inches and 0.5000 inches
Lubrication Feature
Self-lubricating liner race liner
Material Specification
Ph13-8mo assn standard single material response inner member ams5629h1000
Outer Member Outside Diameter
Between 0.8120 inches and 0.8125 inches
Outer Member Width
Between 0.4010 inches and 0.4110 inches
Special Features
Low speed;wide grooved outer ring; neg 65 degrees to 325 degrees f
Specification Data
96906-ms14103 government standard
Static Radial Load Rating
13700 pounds
Style Designator
With insert and/or liner with staking groove
