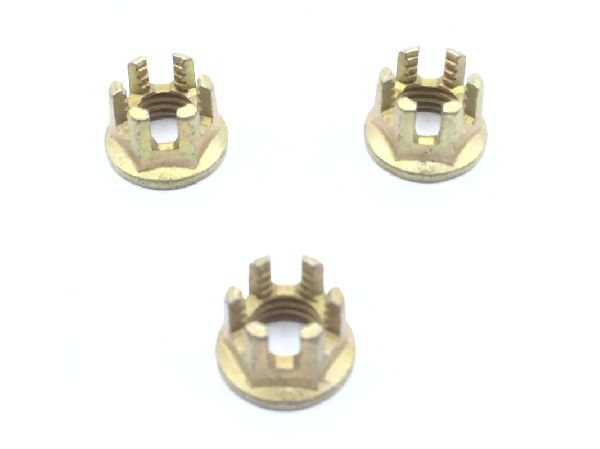

MS14144-4 Self-Locking Extended Washer Nut

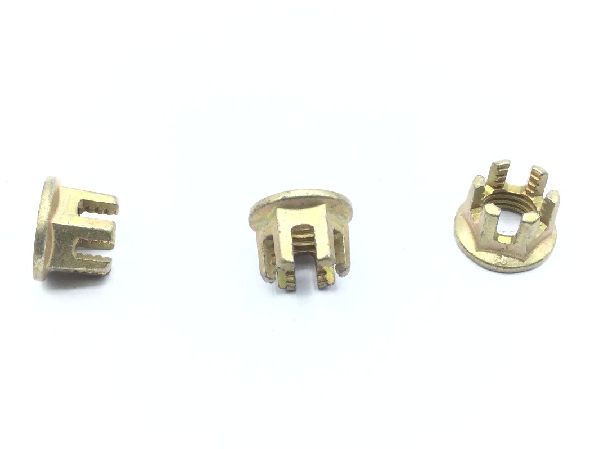

MS14144-4 Self-Locking Extended Washer Nut (2)

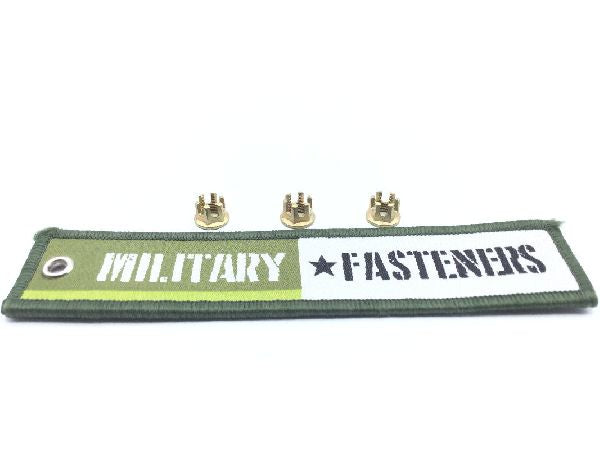

MS14144-4 Self-Locking Extended Washer Nut (3)

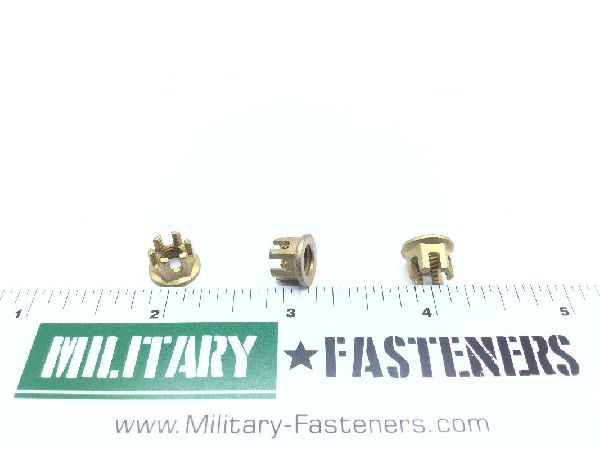

MS14144-4 Self-Locking Extended Washer Nut (4)
MS14144-4 Self-Locking Extended Washer Nut
MS14144-4 Self-Locking Extended Washer Nut (2)
MS14144-4 Self-Locking Extended Washer Nut (3)
MS14144-4 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14144-4 Self-Locking Extended Washer Nut

Product Series
MS
ECCN
EAR99
Schedule
8112.29.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 2 federal specification all treatment responses type 2 qq-p-416
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.250 inches
Locking Feature
Prevailing torque all metal design
Nut Style
Slotted hexagon
Overall Height
Between 0.266 inches and 0.296 inches
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
28
Washer Outside Diameter
0.420 inches
Washer Thickness
0.025 inches
Width Across Flats
Between 0.305 inches and 0.315 inches
Lubrication
Soluble lubricant
