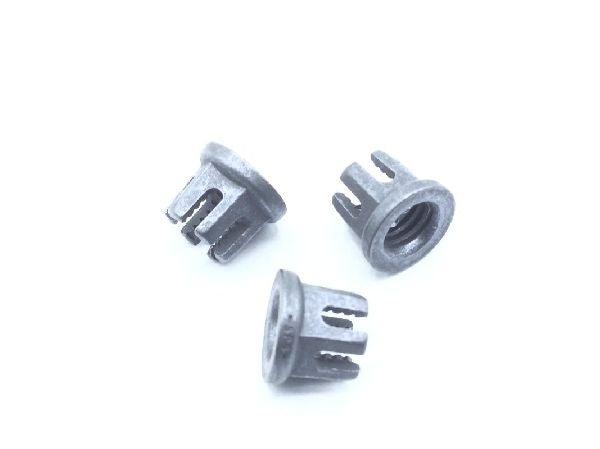

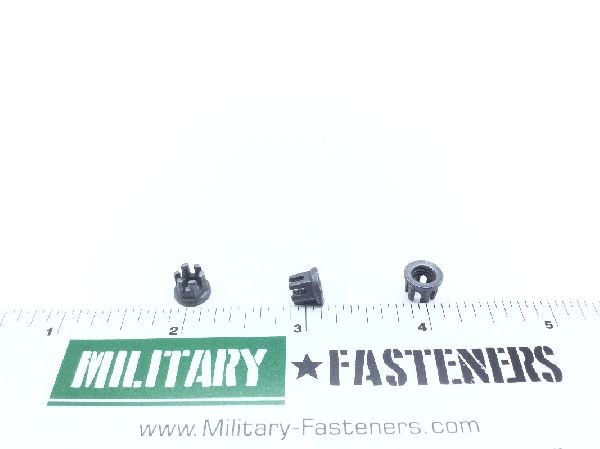

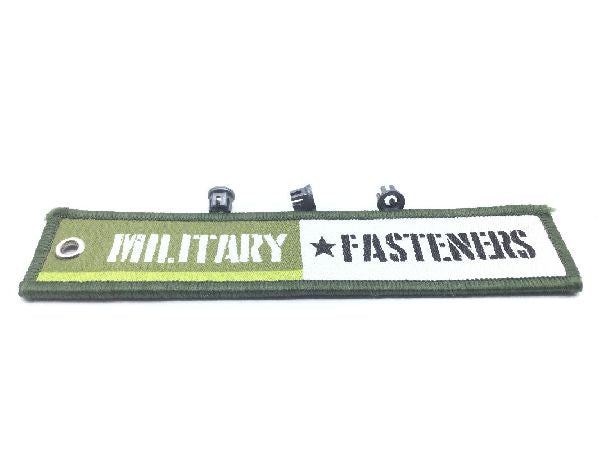

MS14144L3 Self-Locking Extended Washer Nut

MS14144L3 Self-Locking Extended Washer Nut (2)

MS14144L3 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14144L3 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $6.90

Units per Pack 10

Price per Pack $69.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.00

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Finish: 125.0 microinches
Locking Feature: Prevailing torque all metal design
Nut Style: Slotted hexagon
Overall Height: Between 0.235 inches and 0.265 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: 0.325 inches
Washer Thickness: 0.025 inches
Width Across Flats: Between 0.243 inches and 0.252 inches
Lubrication: Dry film lubricant
