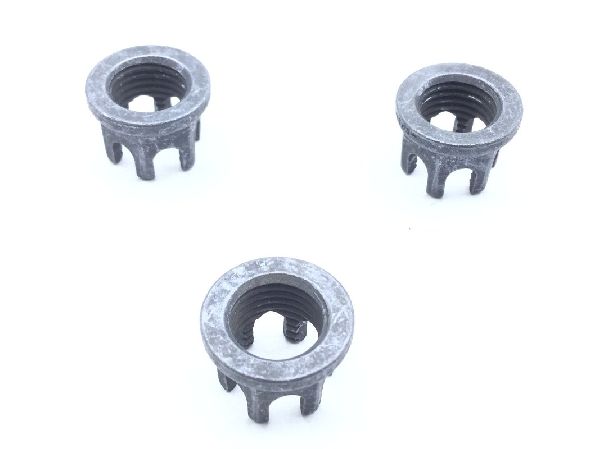

MS14144L6 Self-Locking Extended Washer Nut

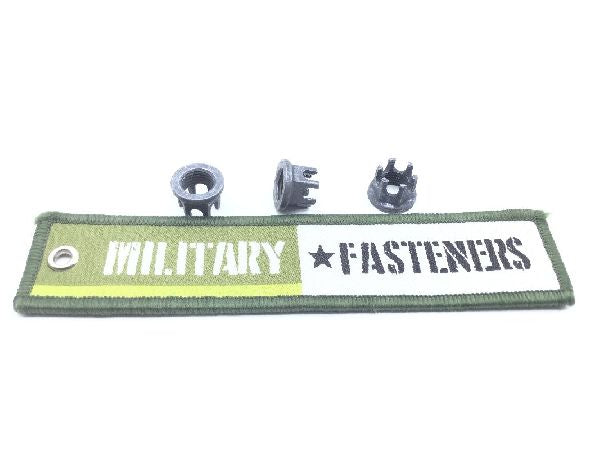

MS14144L6 Self-Locking Extended Washer Nut (2)

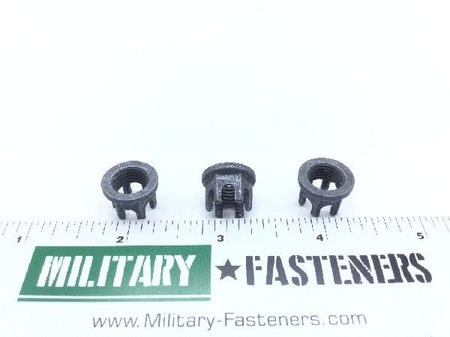

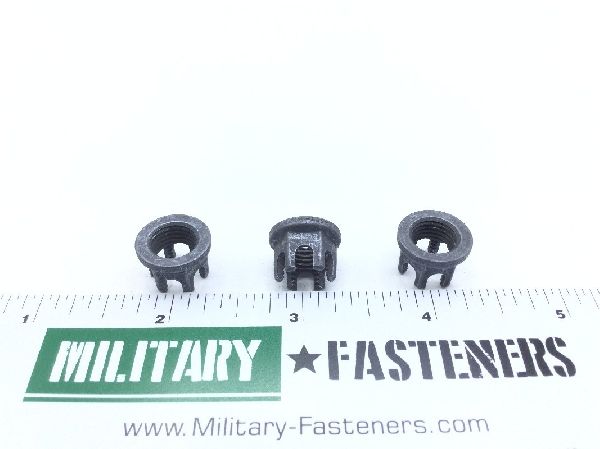

MS14144L6 Self-Locking Extended Washer Nut (3)
MS14144L6 Self-Locking Extended Washer Nut
MS14144L6 Self-Locking Extended Washer Nut (2)
MS14144L6 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14144L6 Self-Locking Extended Washer Nut

Product Series
MS
ECCN
EAR99
Schedule
7318.22.0000
Price per Unit $14.60
Units per Pack 5
Price per Pack $73.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $73.00
Add item to quote
Material
Steel
Surface Treatment
Qq-p-416 federal specification single treatment response
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.375 inches
Bearing Surface Finish
125.0 microinches
Locking Feature
Prevailing torque all metal design
Nut Style
Slotted hexagon
Overall Height
Between 0.391 inches and 0.421 inches
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
24
Washer Outside Diameter
0.579 inches
Washer Thickness
0.070 inches
Width Across Flats
Between 0.429 inches and 0.440 inches
Lubrication
Dry film lubricant
