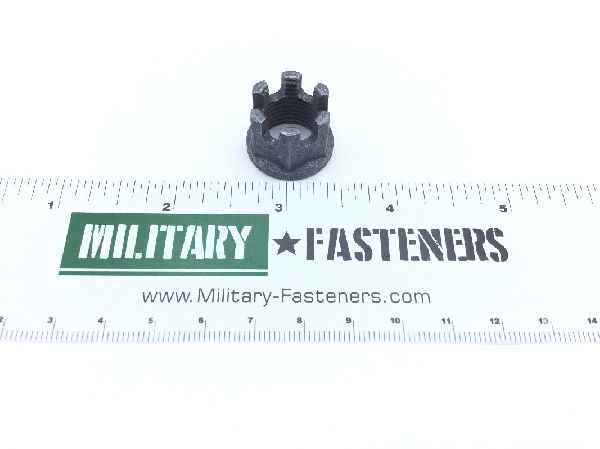

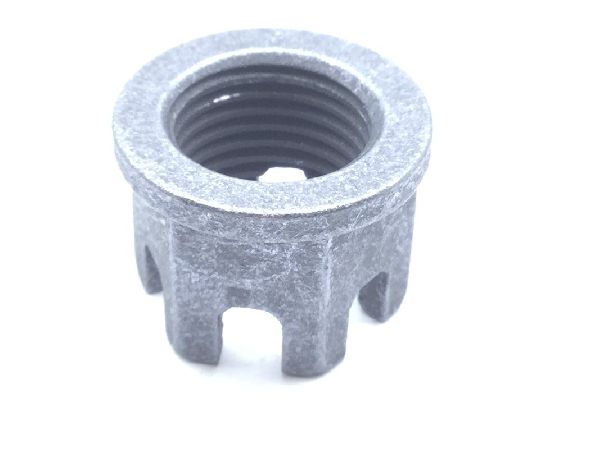

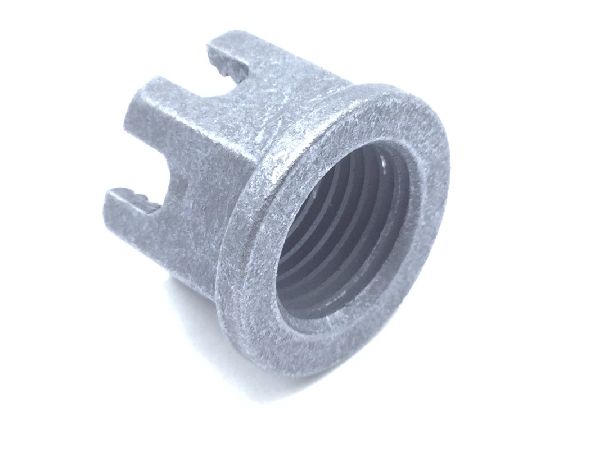

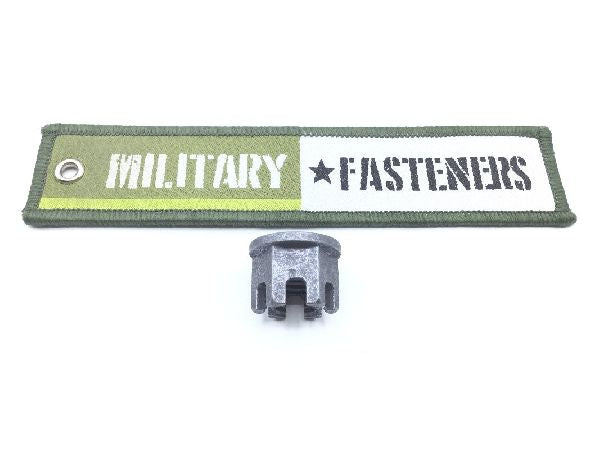

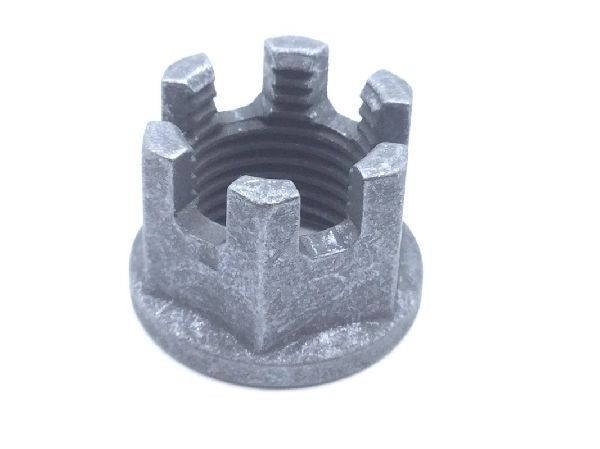

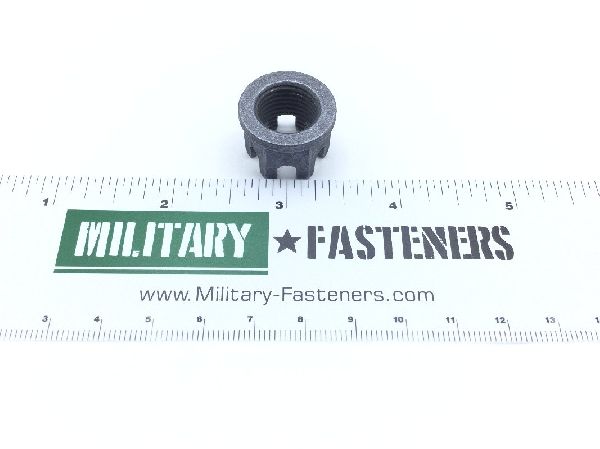

MS14144L9 Self-Locking Extended Washer Nut

NSN
5310-01-243-9019
Product Series
MS
ECCN
EAR99
Schedule
7318.22.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Qq-p-416 type 11 class 3 federal specification single treatment response
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.5625 inches
Locking Feature
Prevailing torque all metal design
Nut Style
Slotted hexagon
Overall Height
Between 0.594 inches and 0.624 inches
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
18
Washer Outside Diameter
0.815 inches
Washer Thickness
0.080 inches
Width Across Flats
Between 0.678 inches and 0.692 inches
