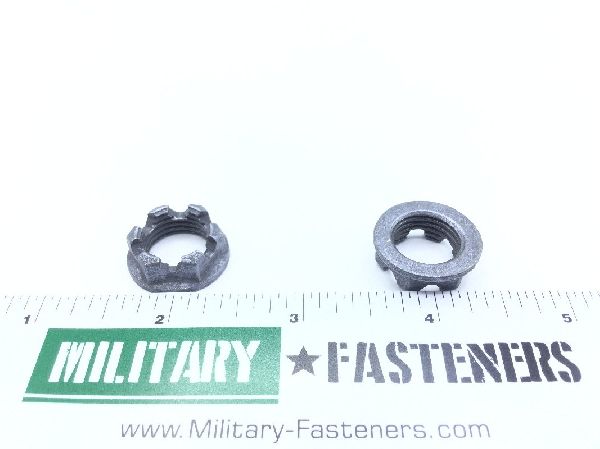

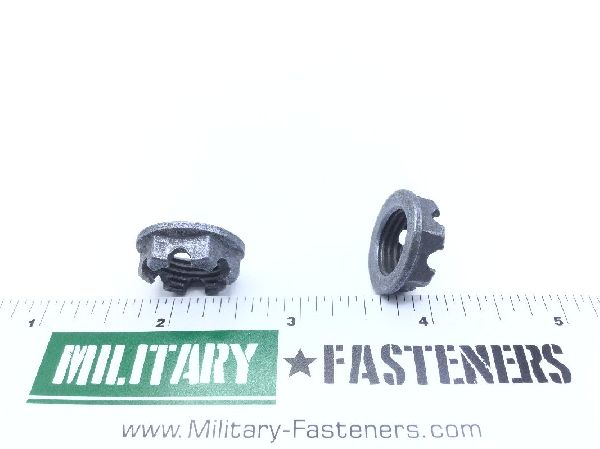

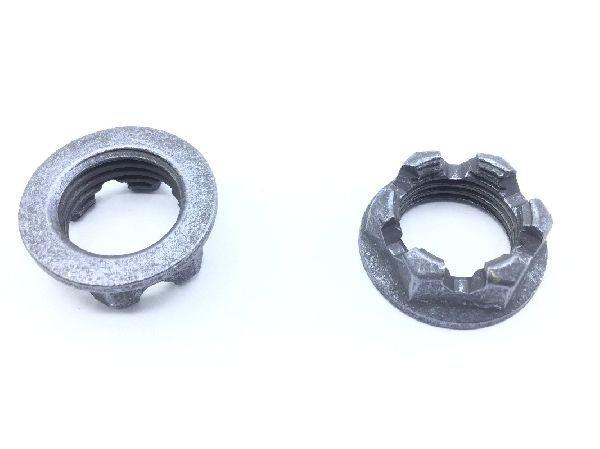

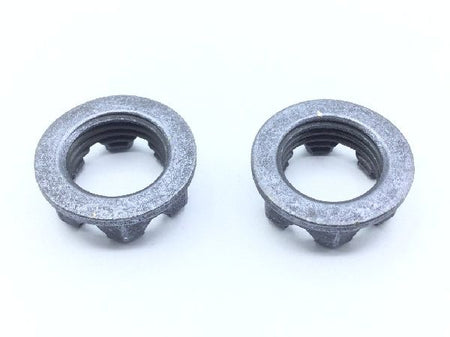

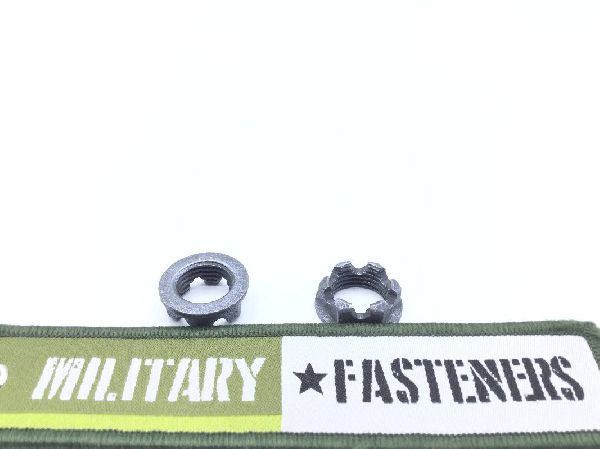

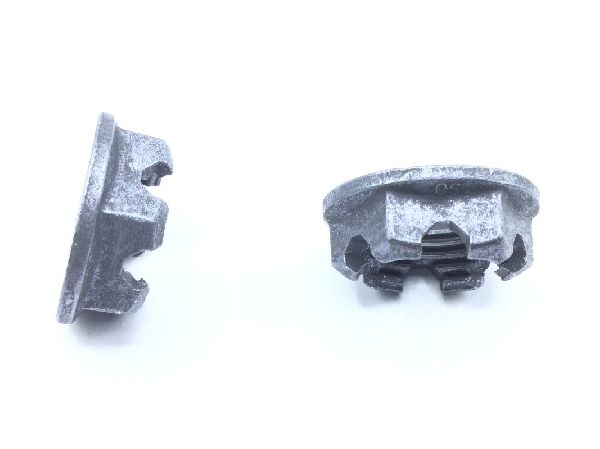

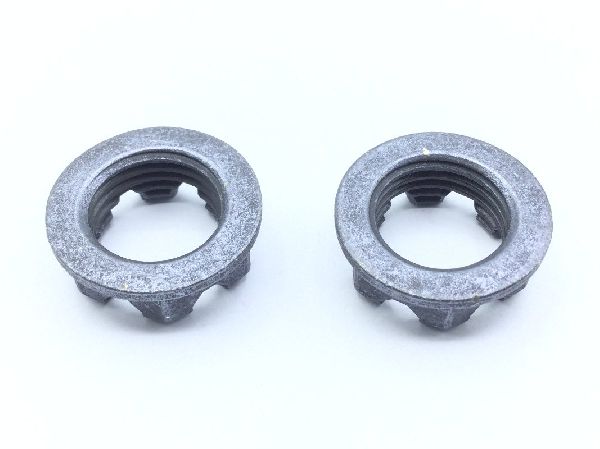

MS14145L9 Self-Locking Extended Washer Nut

MS14145L9 Self-Locking Extended Washer Nut (2)

MS14145L9 Self-Locking Extended Washer Nut (3)

MS14145L9 Self-Locking Extended Washer Nut (4)

MS14145L9 Self-Locking Extended Washer Nut (5)

MS14145L9 Self-Locking Extended Washer Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14145L9 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Bearing Surface Finish: 125.0 microinches
Locking Feature: Prevailing torque all metal design
Nut Style: Slotted hexagon
Overall Height: Between 0.298 inches and 0.328 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Washer Outside Diameter: 0.850 inches
Washer Thickness: 0.045 inches
Width Across Flats: Between 0.678 inches and 0.692 inches
Lubrication: Dry film lubricant
