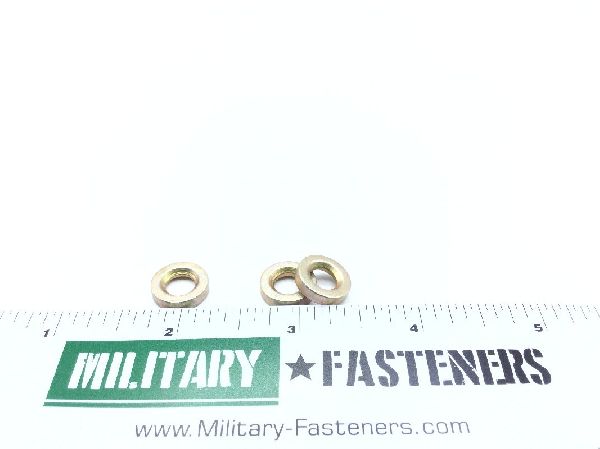

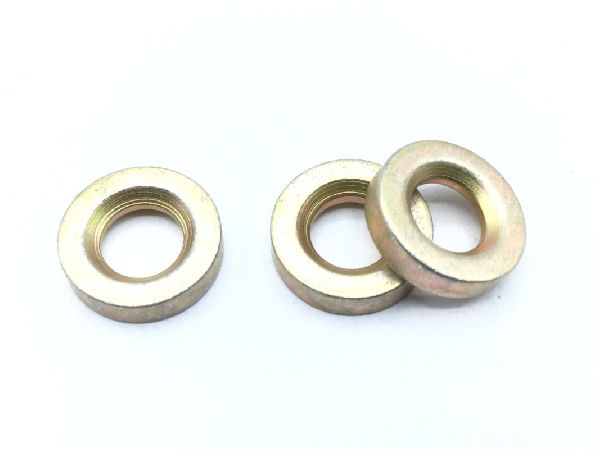

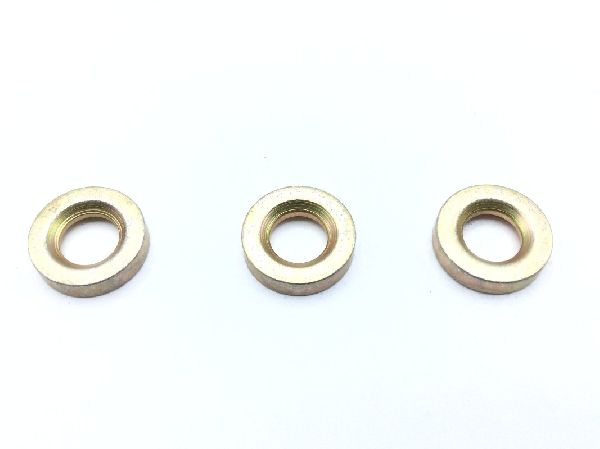

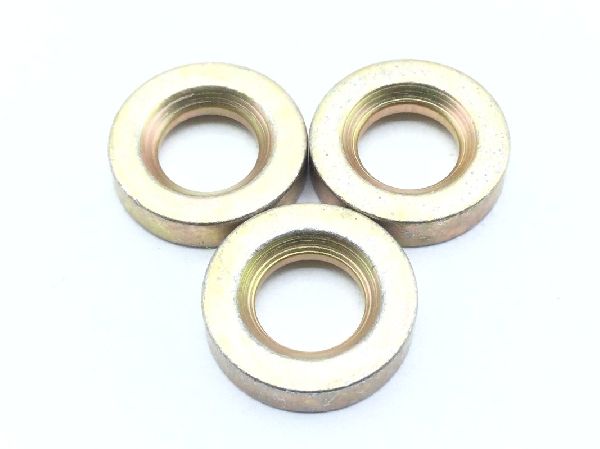

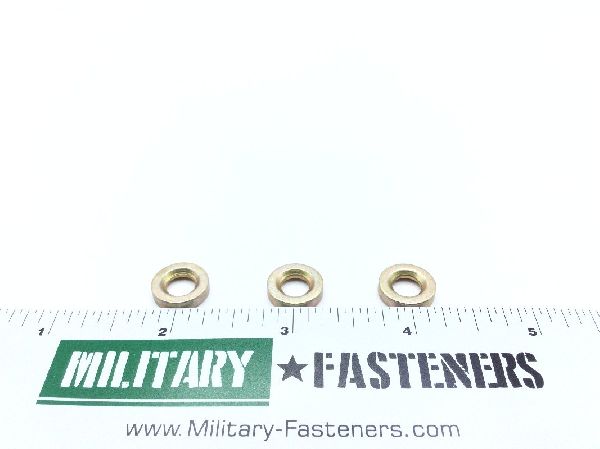

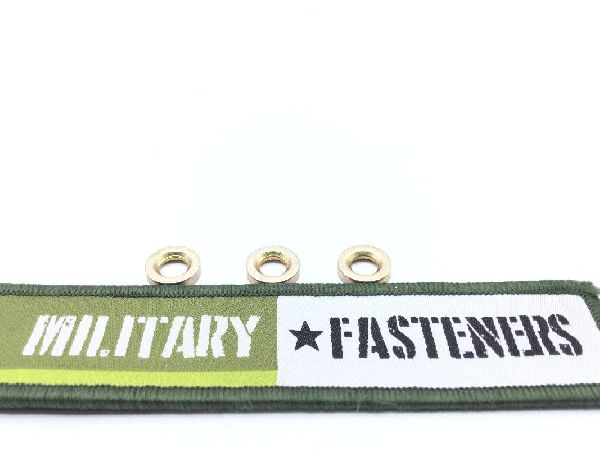

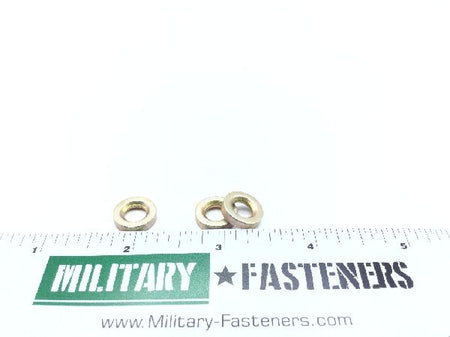

MS14155-4 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $4.99

Units per Pack 10

Price per Pack $49.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $49.90

Add item to quote

Material

Steel comp 4130

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Bottom Recess Angle: 90.0 degrees
Bottom Recess Diameter: Between 0.337 inches and 0.347 inches
Hardness Rating: Between 39.0 rockwell c and 43.0 rockwell c
Material Specification: 1/2 hard military specification single material response or mil-s-18729 military specification single material response type 302 mil-s-5059
Material Thickness: Between 0.114 inches and 0.124 inches
Outside Diameter: Between 0.495 inches and 0.505 inches
Style Designator: Recessed both sides
Top Recess Angle: 90.0 degrees
Top Recess Diameter: Between 0.337 inches and 0.347 inches
Hole Diameter: Between 0.251 inches and 0.255 inches
