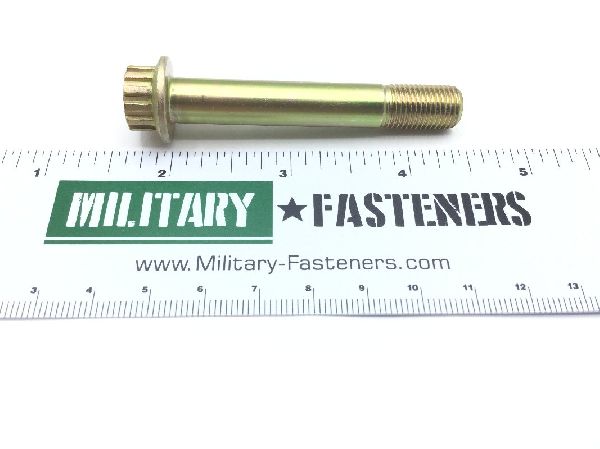

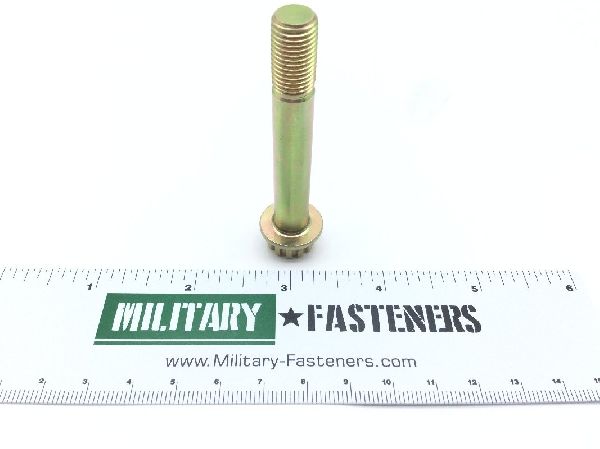

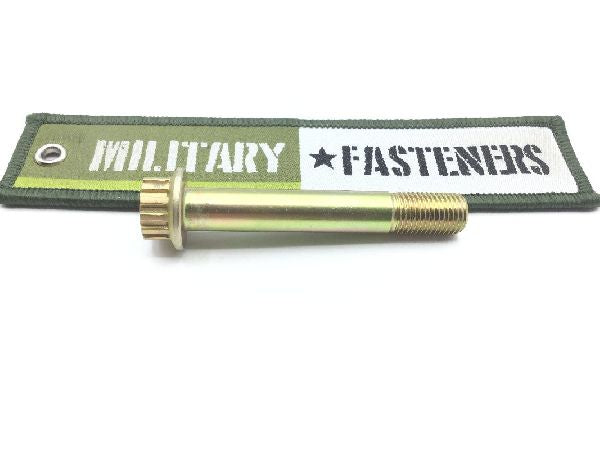

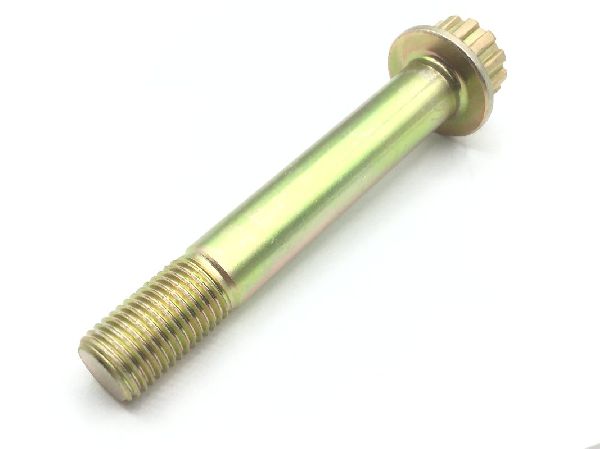

MS14181-06028P Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $62.30

Units per Pack 1

Price per Pack $62.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $62.30

Add item to quote

Head Style

Spline extended washer

Material

Nickel alloy 718

Surface Treatment

Class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Extended Washer Diameter: Between 0.691 inches and 0.701 inches
Extended Washer Thickness: Between 0.044 inches and 0.064 inches
Fastener Length: Between 2.419 inches and 2.449 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.740 inches and 1.760 inches
Head Height: Between 0.327 inches and 0.347 inches
Head Minor Diameter: Between 0.423 inches and 0.438 inches
Material Specification: Ams5662 assn standard single material response or 5663 assn standard single material response
Min. Tensile Strength (psi): 220000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.659 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
