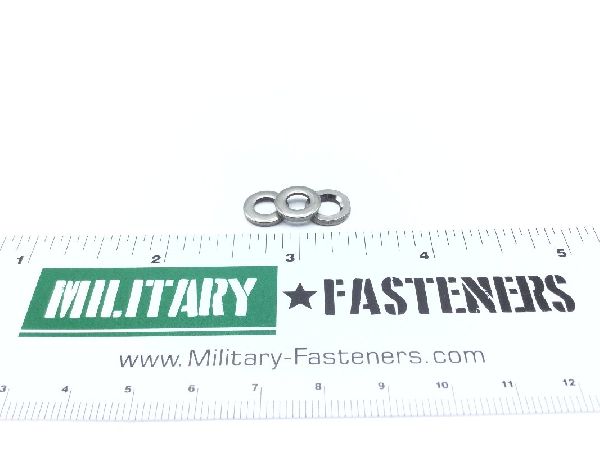

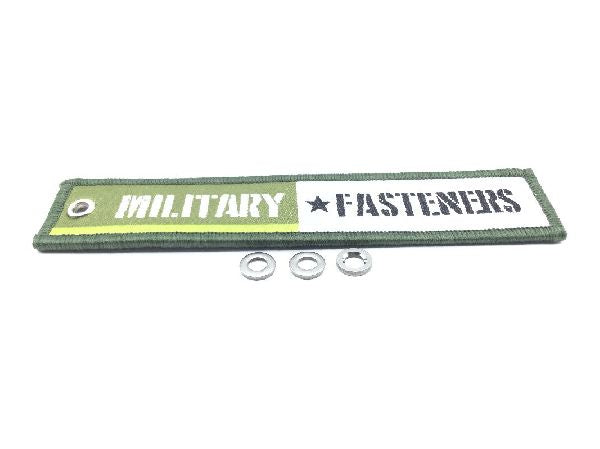

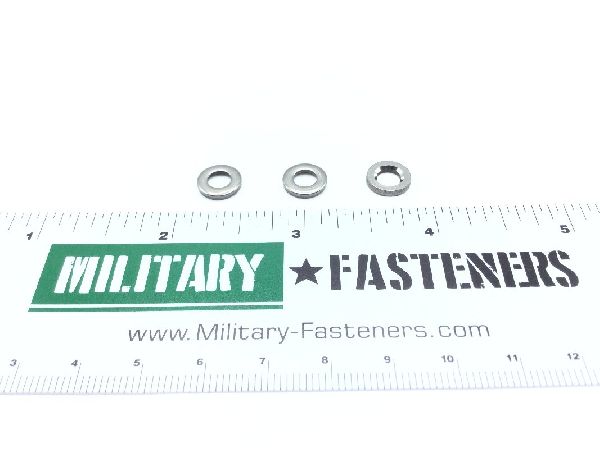

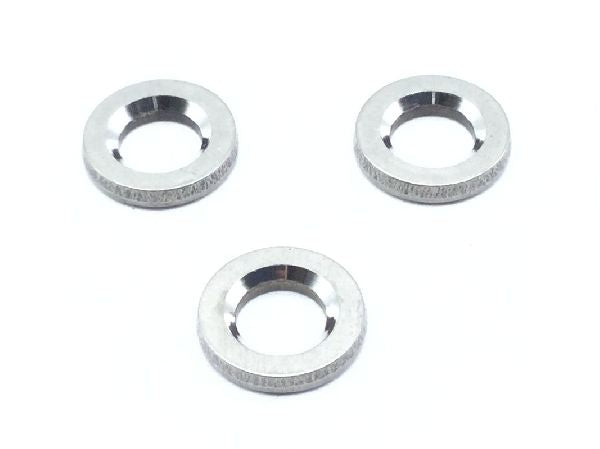

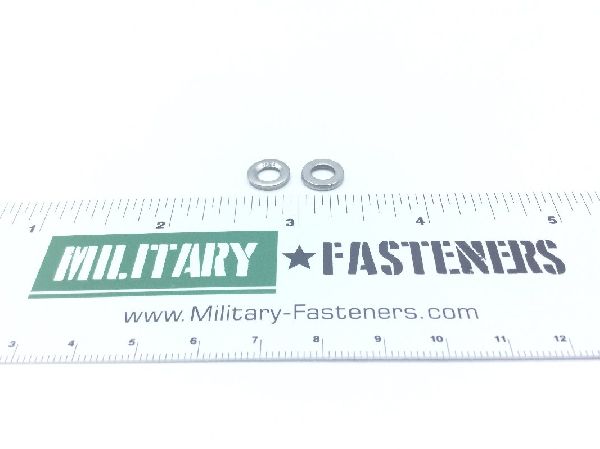

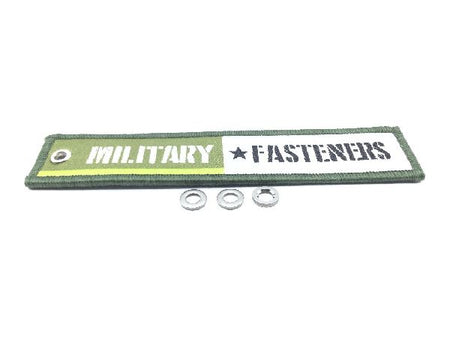

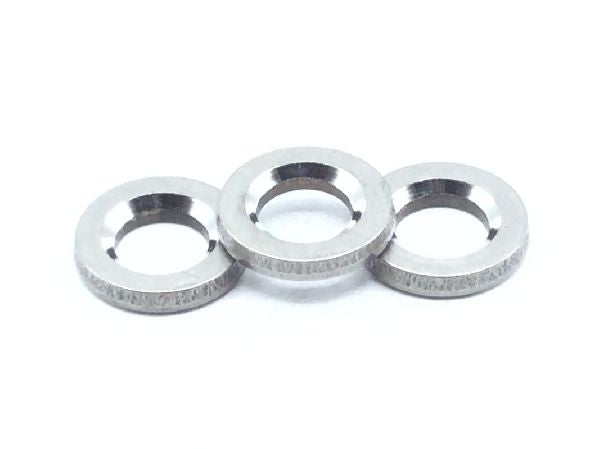

MS14183L-C3 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $6.72

Units per Pack 10

Price per Pack $67.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $67.20

Add item to quote

Material

Nickel alloy 718

Surface Treatment

Qq-p-35 federal specification single treatment response

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Hardness Rating: Between 36.0 rockwell c and 45.0 rockwell c
Inside Left Corner Chamfer Angle: 45 degrees
Inside Right Corner Chamfer Angle: 45 degrees
Material Specification: Ams5596 assn standard single material response or ams5597 assn standard single material response or ams5662 assn standard single material response
Overall Diameter: Between 0.362 inches and 0.372 inches
Thickness: Between 0.057 inches and 0.069 inches
Hole Diameter: Between 0.238 inches and 0.248 inches
