MS14183L-C5 Flat Washer

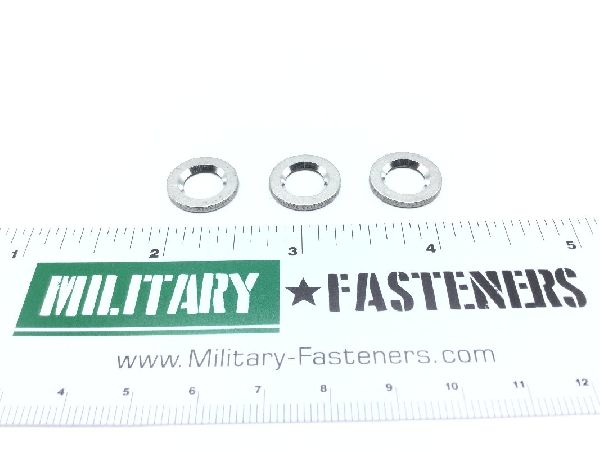

MS14183L-C5 Flat Washer (2)

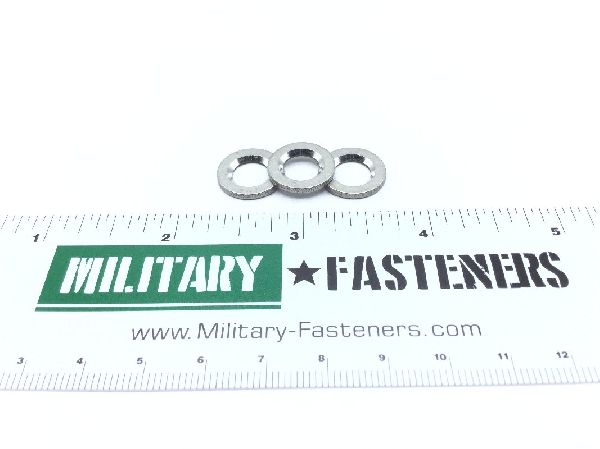

MS14183L-C5 Flat Washer (3)

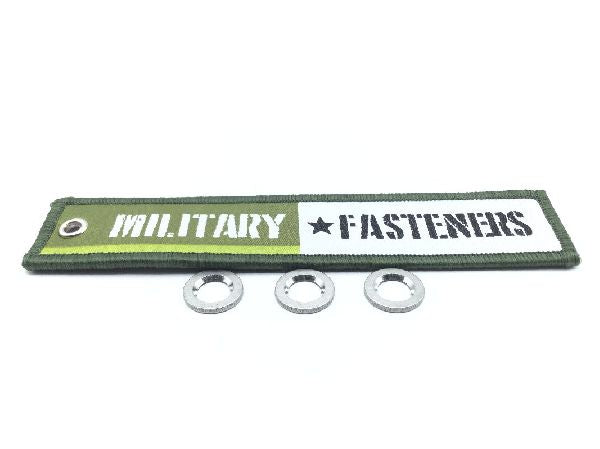

MS14183L-C5 Flat Washer (4)

MS14183L-C5 Flat Washer (5)

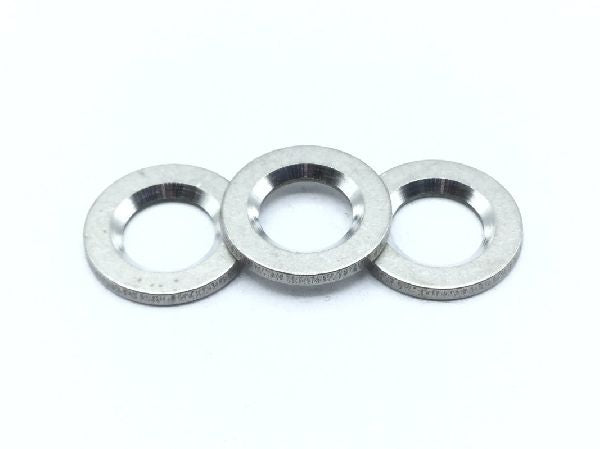

MS14183L-C5 Flat Washer (6)

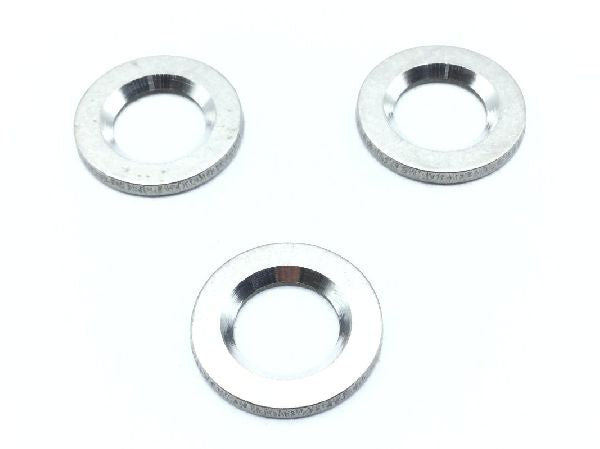

MS14183L-C5 Flat Washer (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14183L-C5 Flat Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $4.60

Units per Pack 10

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Material

Nickel alloy 718

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Inside Left Corner Chamfer Angle: 45.0 degrees
Inside Right Corner Chamfer Angle: 45.0 degrees
Overall Diameter: Between 0.575 inches and 0.585 inches
Thickness: Between 0.067 inches and 0.069 inches
Hole Diameter: Between 0.386 inches and 0.396 inches
