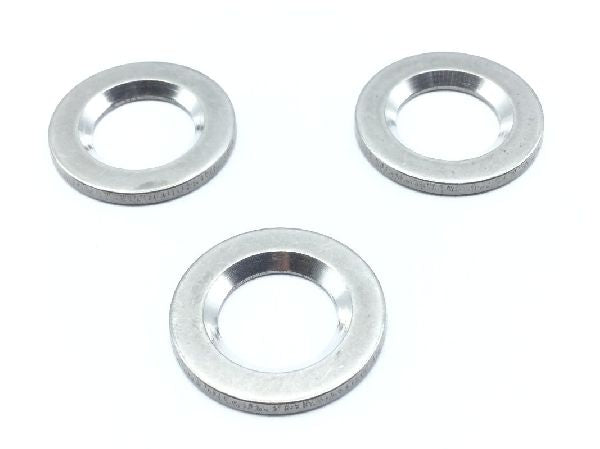

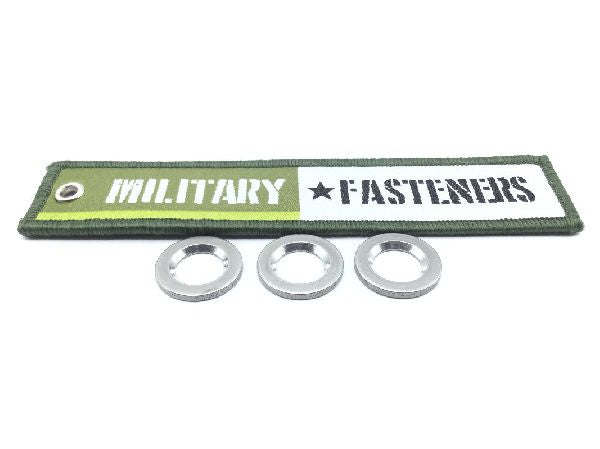

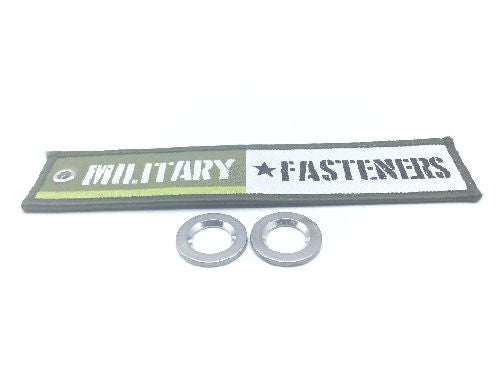

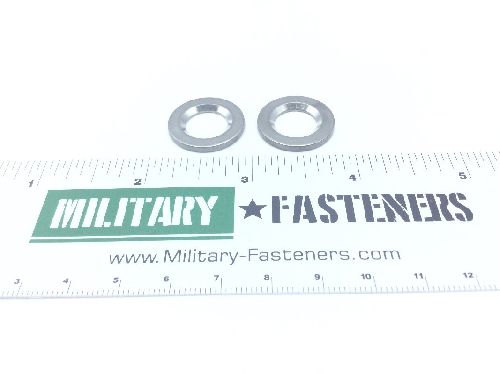

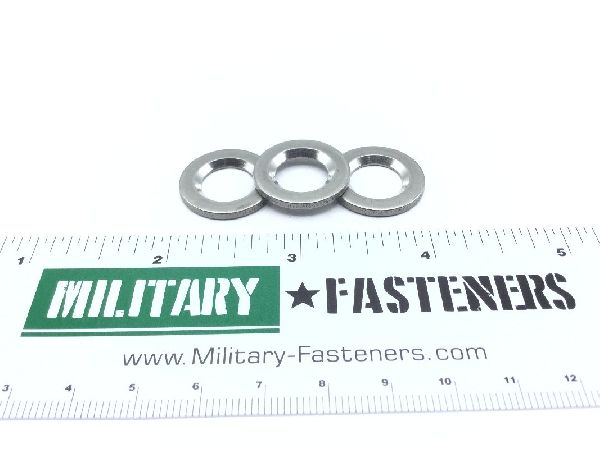

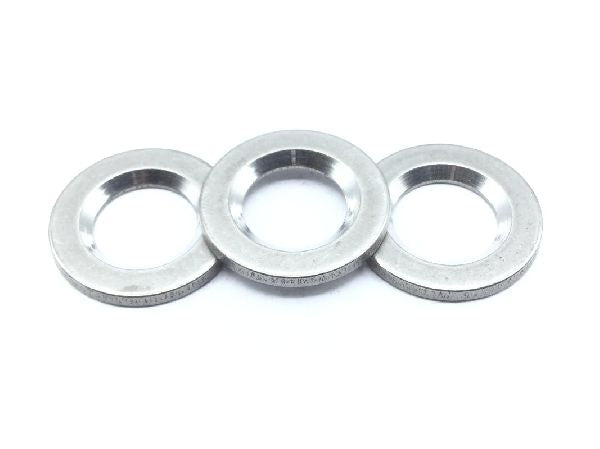

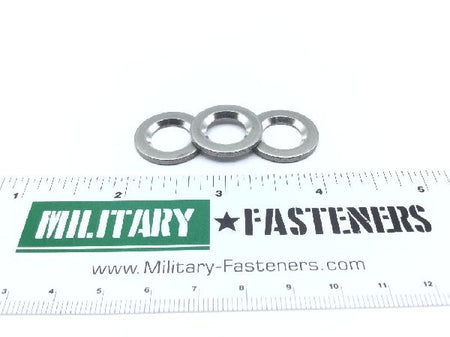

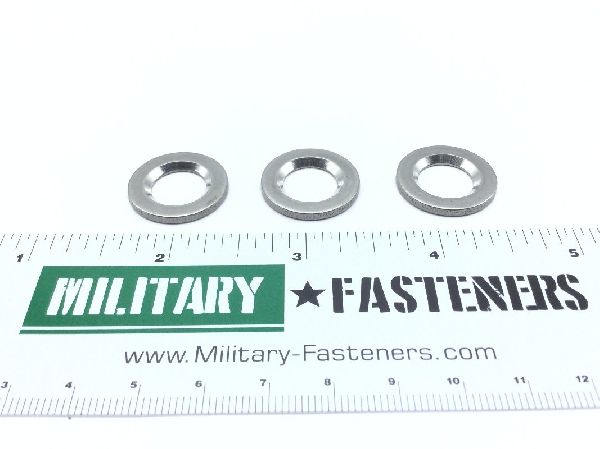

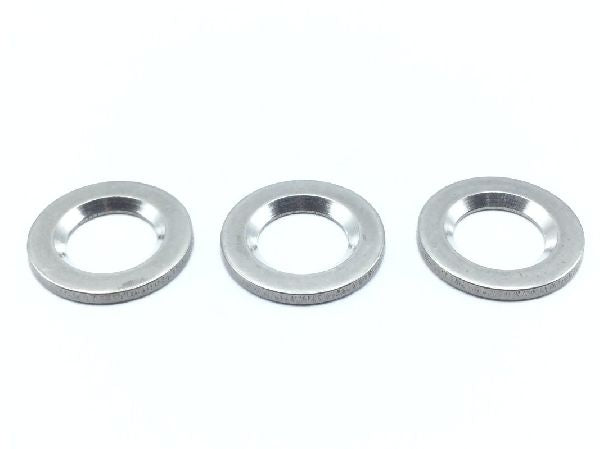

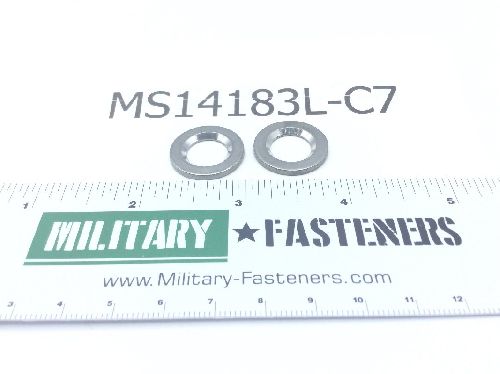

MS14183L-C7 Recessed Washer
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.22.0000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Hardness Rating
- Between 36.0 rockwell c and 45.0 rockwell c
- Material Specification
- Ams 5596 assn standard single material response or ams 5597 assn standard single material response or ams 5662 assn standard single material response
- Material Thickness
- Between 0.071 inches and 0.085 inches
- Outside Diameter
- Between 0.807 inches and 0.817 inches
- Recess Angle
- 90 degrees
- Recess Diameter
- Between 0.539 inches and 0.549 inches
- Style Designator
- Recessed
- Hole Diameter
- Between 0.439 inches and 0.443 inches
