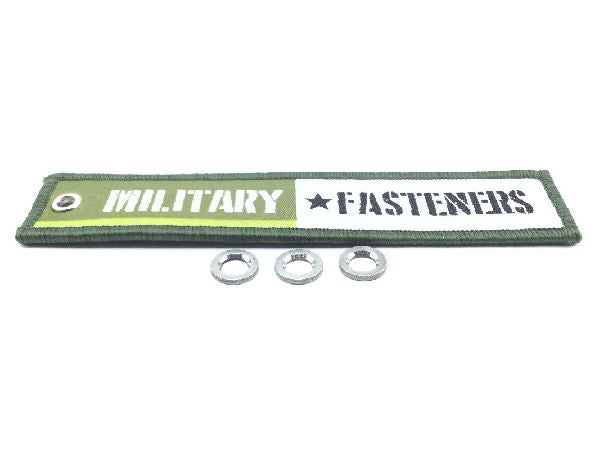

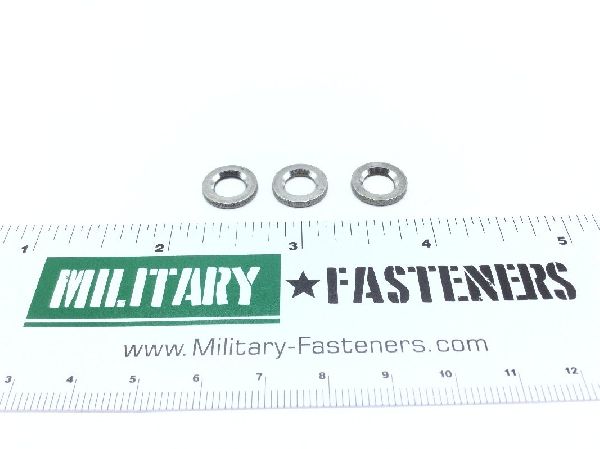

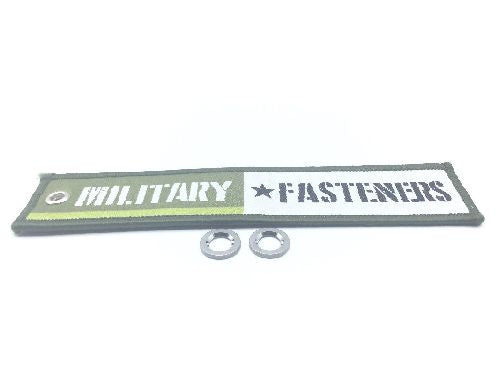

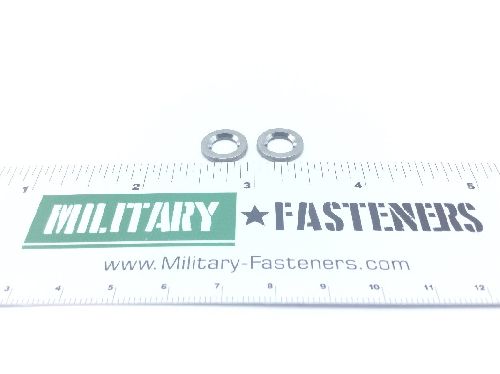

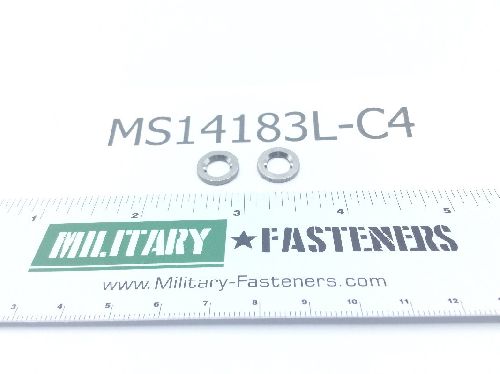

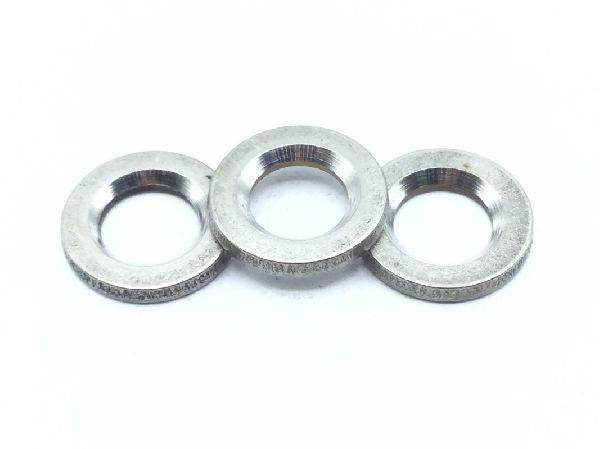

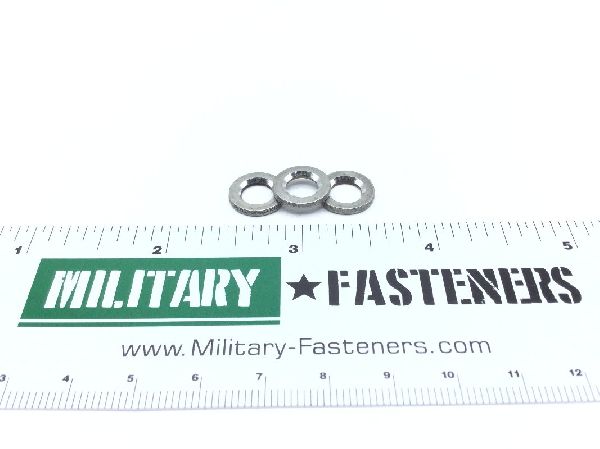

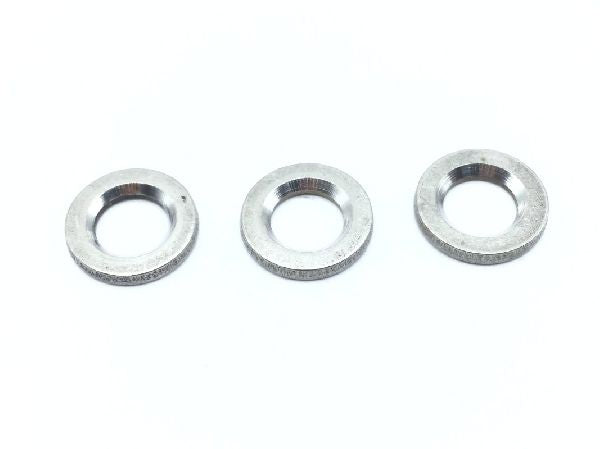

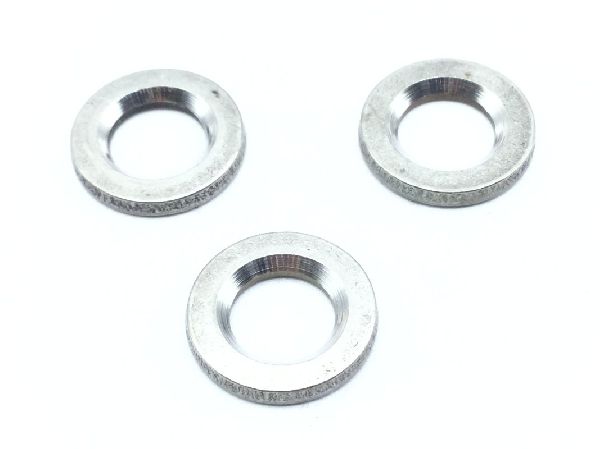

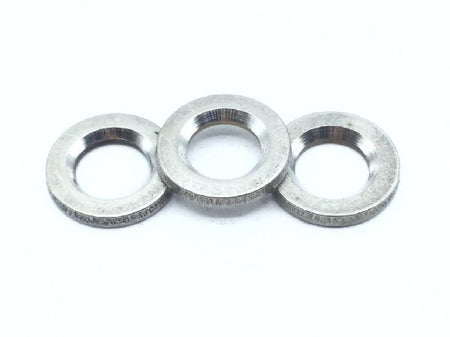

MS14183LC4 Recessed Washer
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.22.0000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Hardness Rating
- Between 36.0 rockwell c and 45.0 rockwell c
- Material Specification
- Ams 5596 assn standard single material response or ams 5597 assn standard single material response or ams 5662 assn standard single material response
- Material Thickness
- Between 0.057 inches and 0.069 inches
- Outside Diameter
- Between 0.460 inches and 0.470 inches
- Recess Angle
- 90.0 degrees
- Recess Diameter
- Between 0.310 inches and 0.320 inches
- Style Designator
- Recessed
- Hole Diameter
- Between 0.251 inches and 0.255 inches
