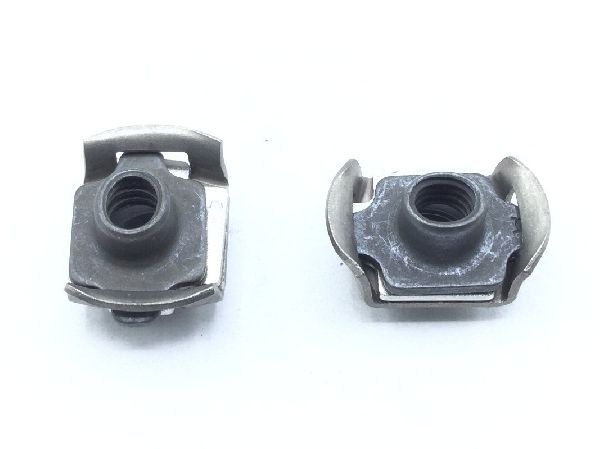

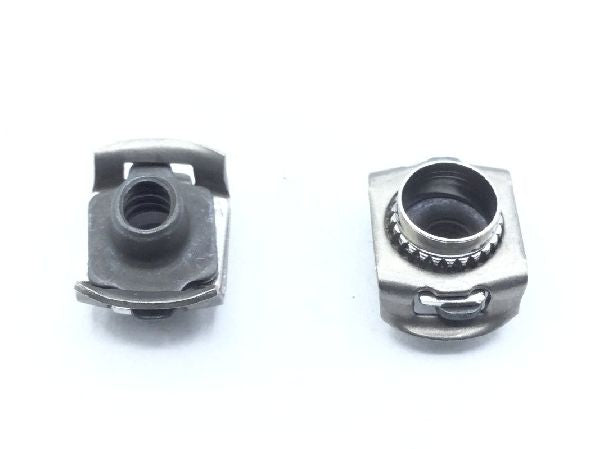

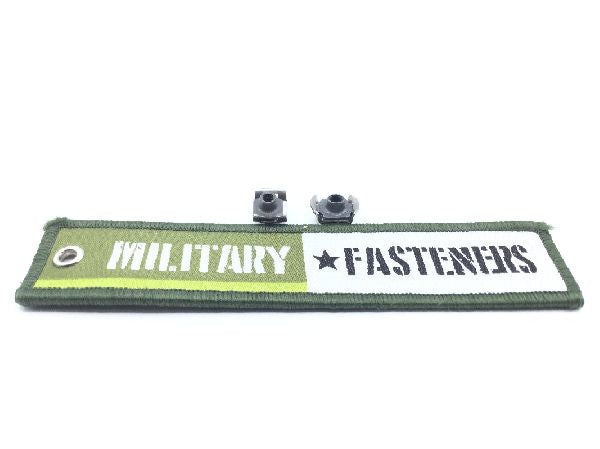

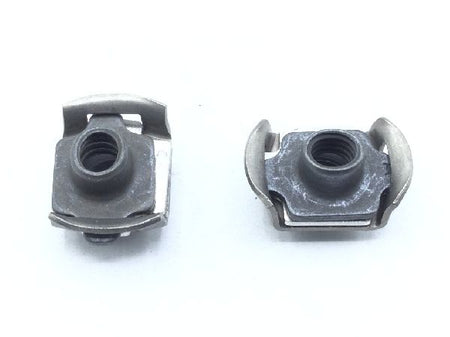

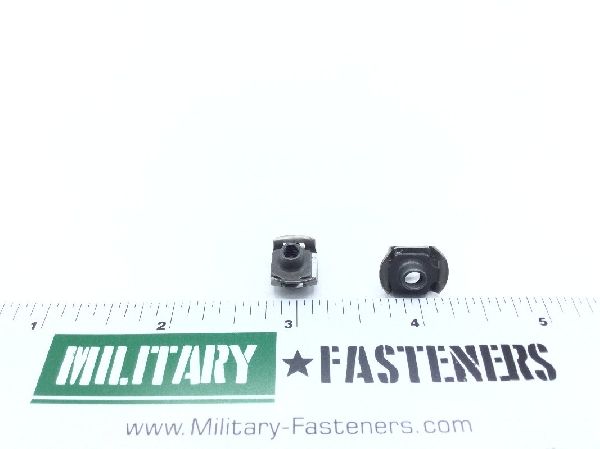

MS14210-L08-4 Self-Locking Extended Washer Nut

MS14210-L08-4 Self-Locking Extended Washer Nut (2)

MS14210-L08-4 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS14210-L08-4 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $35.22

Units per Pack 2

Price per Pack $70.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $70.44

Add item to quote

Material

Steel comp 304 base or steel comp 305 base

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Counterbore Diameter: 0.235 inches base
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5639 assn standard 1st material response base or ams 5514 assn standard 2nd material response base
Nut Counterbore Depth: 0.167 inches base
Nut Height: 0.369 inches
Nut Length: 0.587 inches
Nut Style: Spline (floating)
Pilot Diameter: 0.270 inches
Pilot Length: 0.099 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: 0.405 inches
Lubrication: Dry film lubricant
