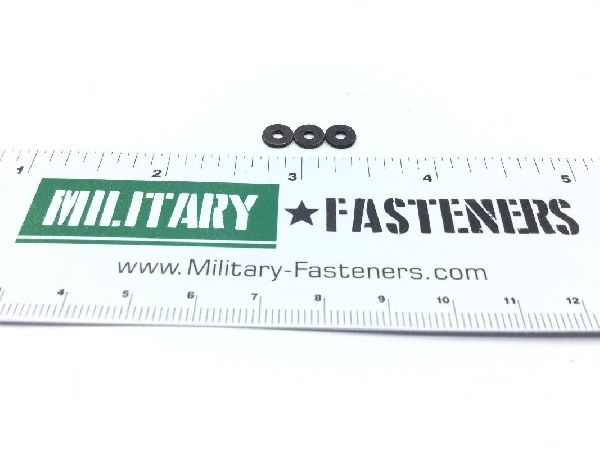

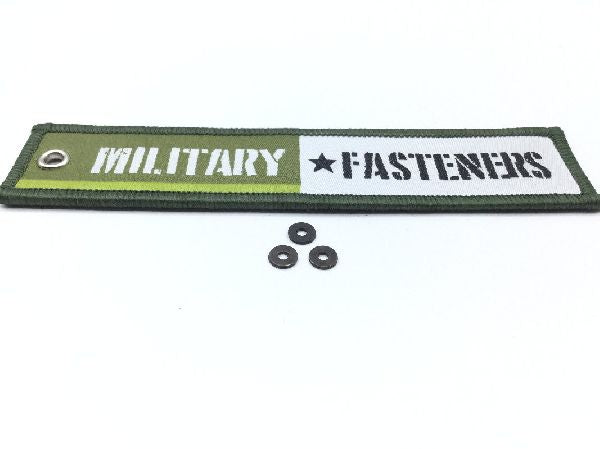

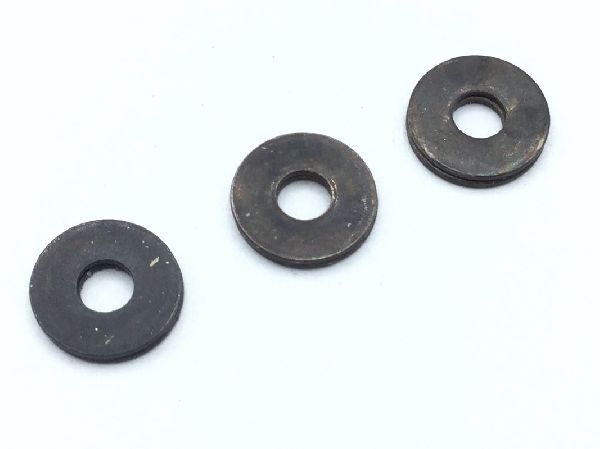

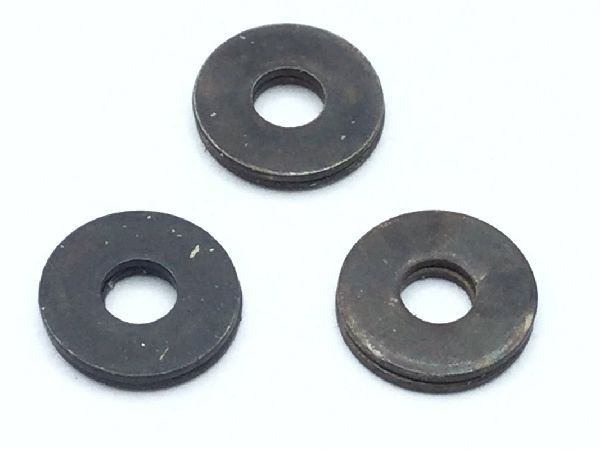

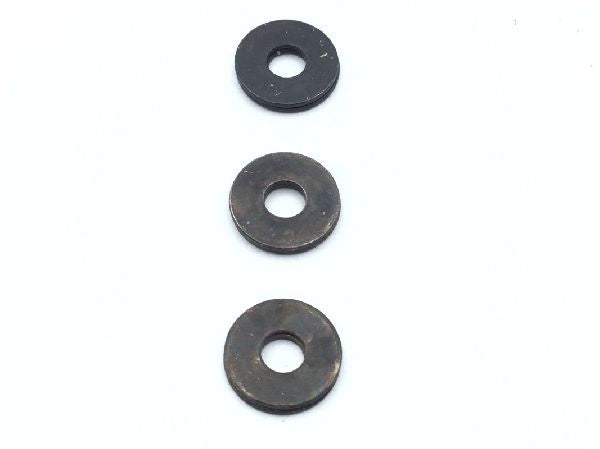

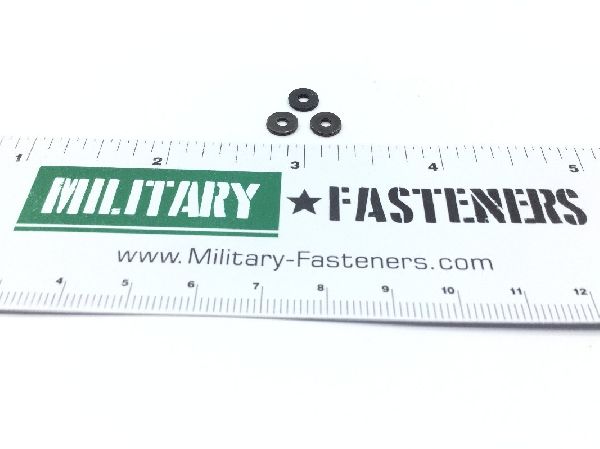

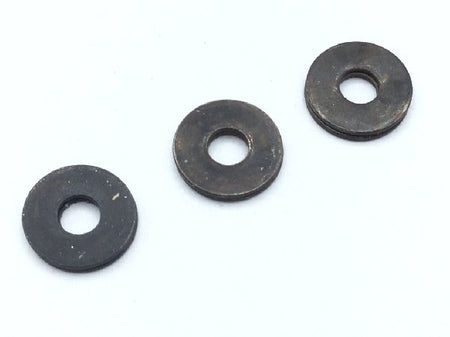

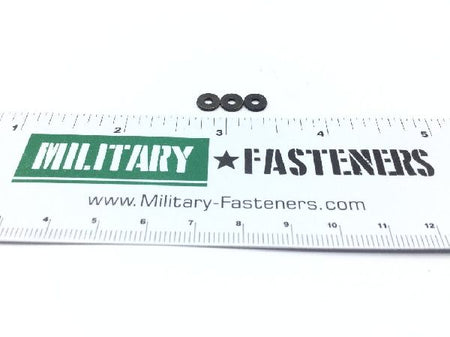

MS15795-802B Flat Washer

Product Series: MS
ECCN: 9A991
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 301 or steel comp 302 or steel comp 316

Surface Treatment

Class 4 military specification single treatment response mil-c-13924

Center Hole Shape: Round
Color: Black
Cross Sectional Shape: Rectangular
Edge Shape: Round
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: A type and 1 grade and b class
Overall Diameter: Between 0.245 inches and 0.250 inches
Thickness: Between 0.016 inches and 0.025 inches
Hole Diameter: Between 0.089 inches and 0.094 inches
