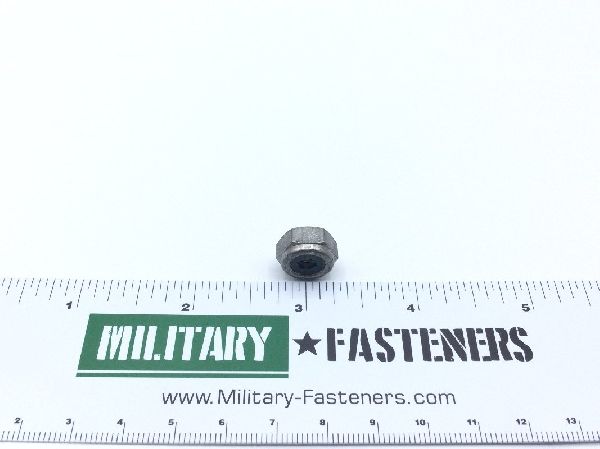

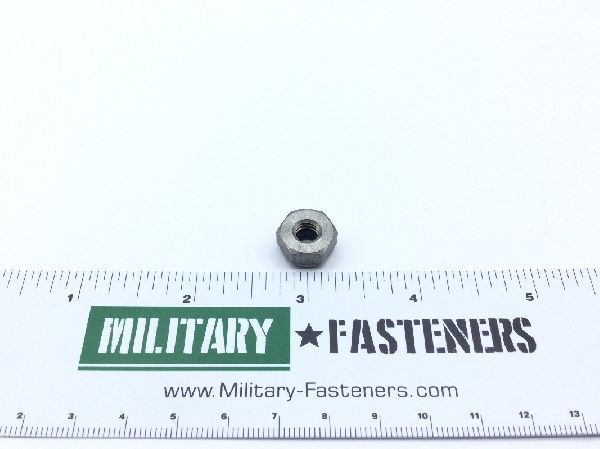

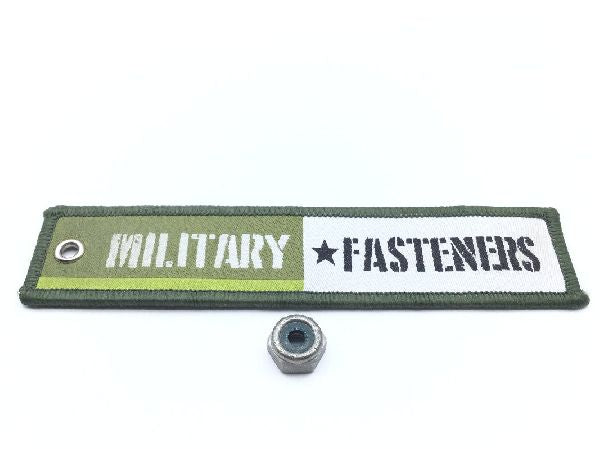

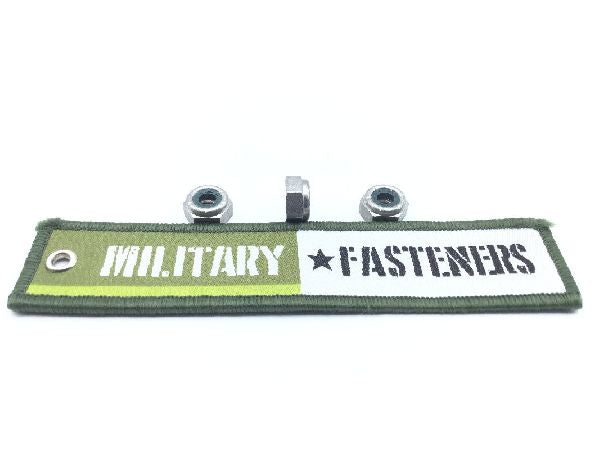

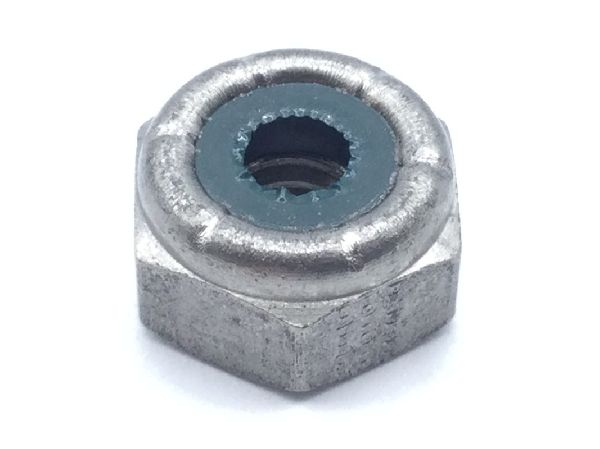

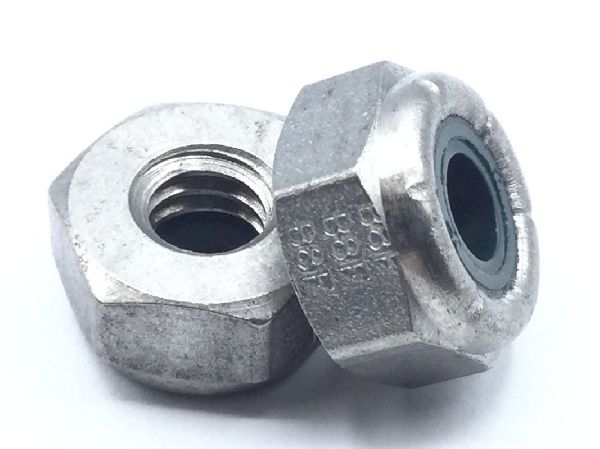

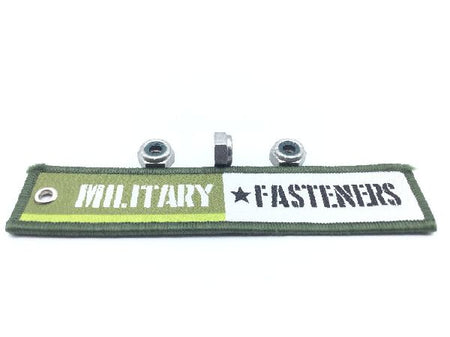

MS16228-4C Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polyhexamethylene amide locking insert

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered
Countersink Angle: 88.0 degrees nut
End Application: communications interface system (cis) (v) 2; rg-33 mrap 5895-01-514-7015
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: type 1 military specification single material response locking insert comp a mil-m-20693
Nut Height: Between 0.266 inches and 0.296 inches
Nut Style: Hexagon
Part Name Assigned By Controlling Agency: 250 degrees fahr nonmagnetic unc (coarse thread) 3b (non-metallic insert) austenitic corrosion resistant steel hexagon - thin self-locking nut
Specification Data: 80205 - nas-16228. sep 1999 professional/industrial association specification
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.492 inches and 0.502 inches
