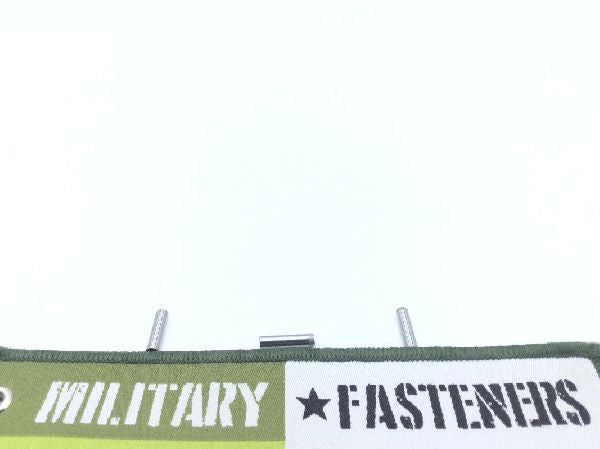

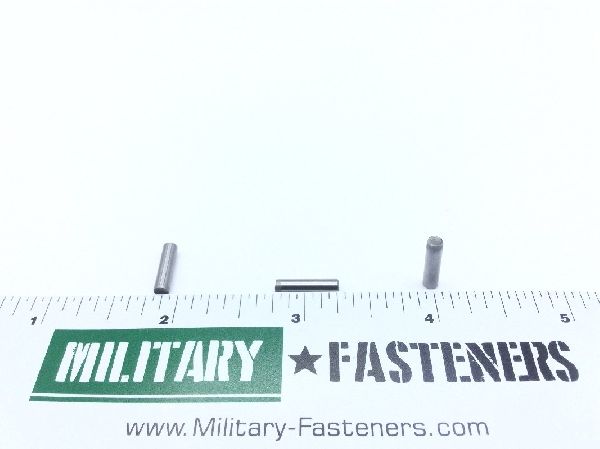

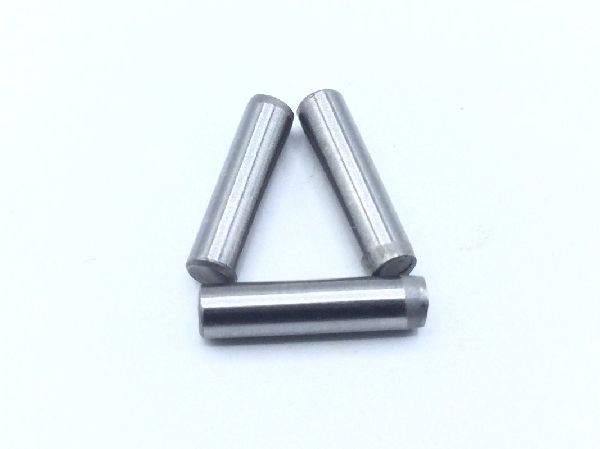

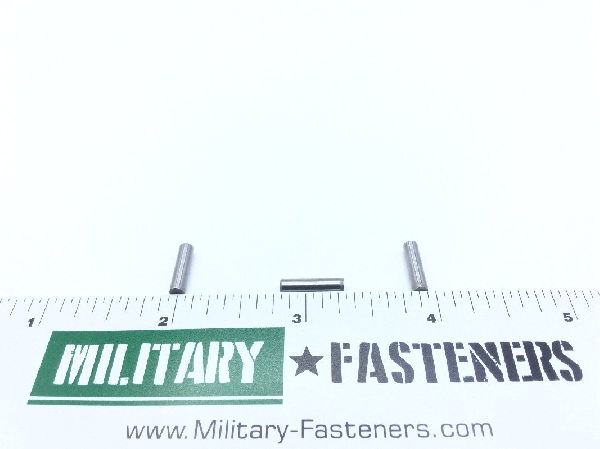

MS16555-27 Straight Headless Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Material

Steel

Features: Casehardened
Features Provided: Casehardened
First End Style: Chamfered
First End Taper Angle: Between 4.0 degrees and 16.0 degrees
First End Taper Length: 0.084 inches
Hardness Rating: 47.0 rockwell c and 58.0 rockwell c
Material Specification: Astm a29 assn standard single material response
Pindiameter: Between 0.1251 inches and 0.1253 inches
Pinlength: Between 0.490 inches and 0.510 inches
Second End Corner Radius: 0.041 inches
Second End Relationship With First End: Not identical
Second End Style: Radius
Shear Strength: 3200 double pound
Special Features: Radius end may be chamfered 25.0 degrees
Surface Finish: 16.0 microinches outside diameter
