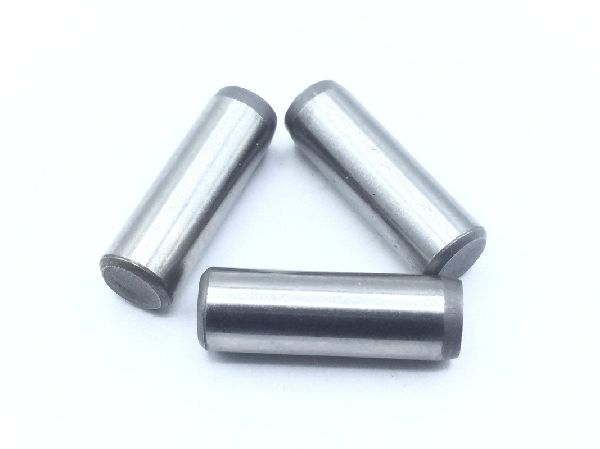

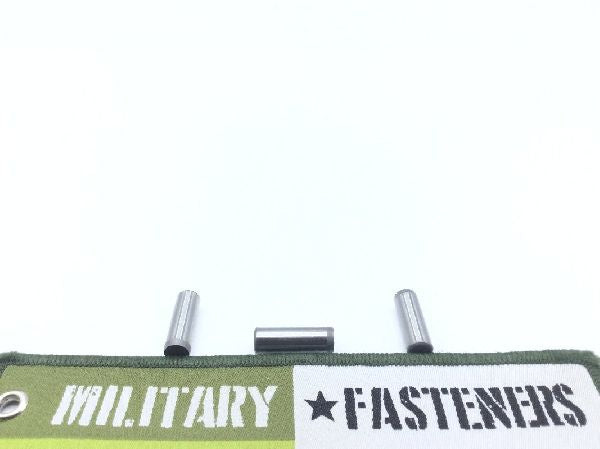

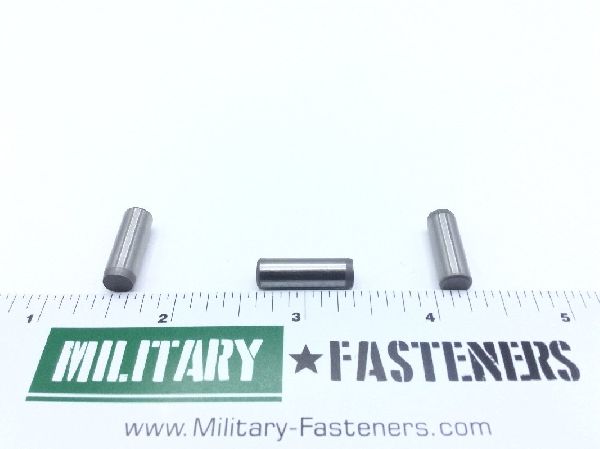

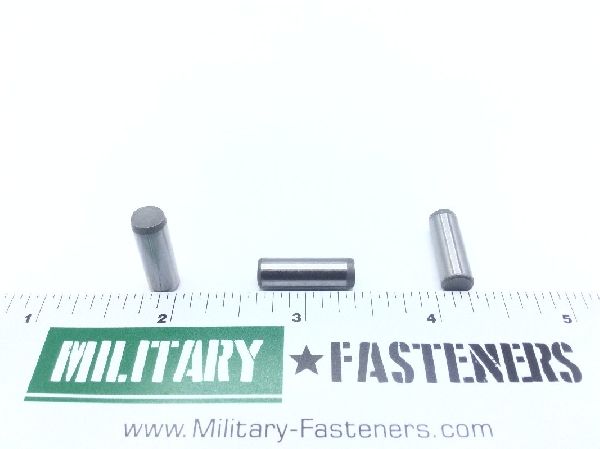

MS16555-46 Straight Headless Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $1.42

Units per Pack 25

Price per Pack $35.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $35.50

Add item to quote

Material

Steel

Features: Casehardened
Features Provided: Casehardened
First End Style: Chamfered
First End Taper Angle: Between 4.0 degrees and 16.0 degrees
First End Taper Length: 0.157 inches
Hardness Rating: 47.0 rockwell c and 58.0 rockwell c
Material Specification: Astm a29 assn standard single material response
Pindiameter: Between 0.2501 inches and 0.2503 inches
Pinlength: Between 0.740 inches and 0.760 inches
Second End Corner Radius: 0.083 inches
Second End Relationship With First End: Not identical
Second End Style: Radius
Shear Strength: 12800 double pound
Special Features: Radius end may be chamfered 25 deg
Surface Finish: 16.0 microinches outside diameter
