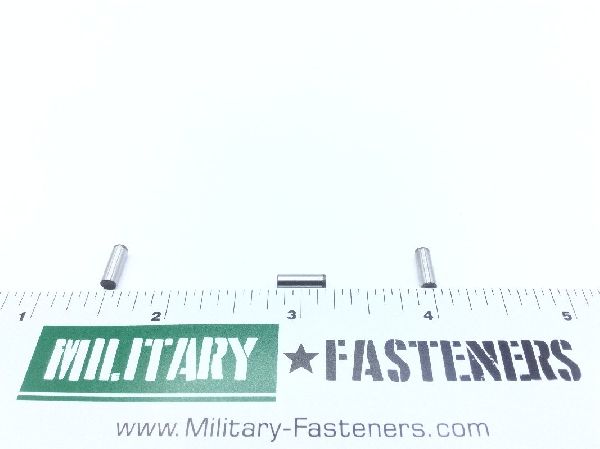

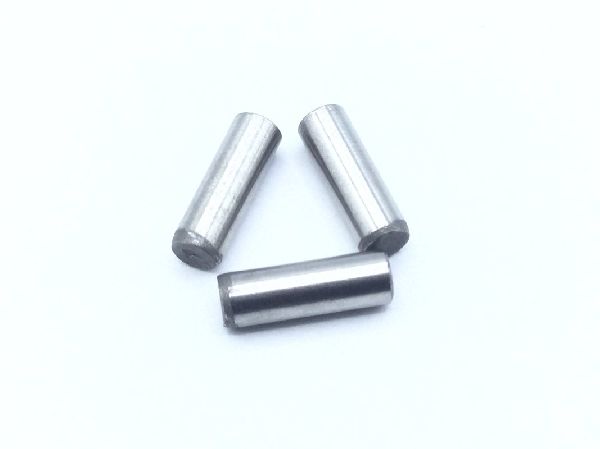

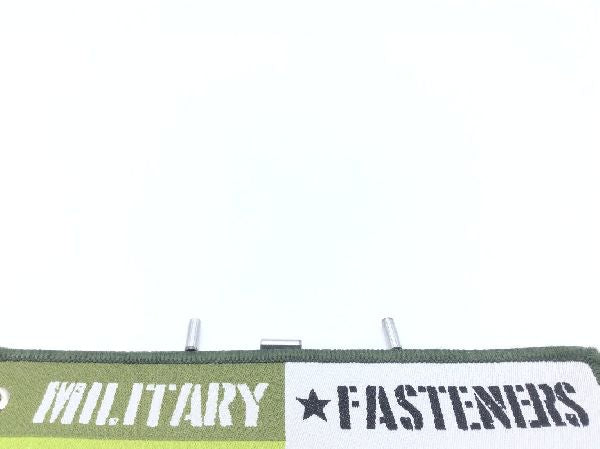

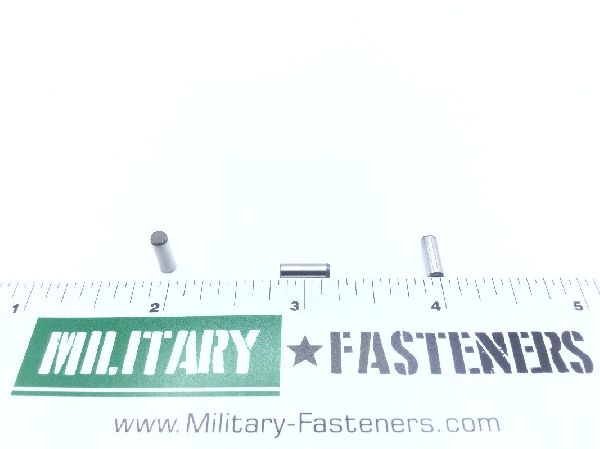

MS16555-625 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel

Surface Treatment

Astm a380 assn standard single treatment response

Criticality Code Justification: Zzzw and feat
Departure From Cited Document: As modified by material which must conform to ships parts control center special quality control provisions
First End Style: Chamfered
First End Taper Angle: Between 4.0 degrees and 16.0 degrees
First End Taper Length: 0.065 inches
Hardness Rating: 36.0 rockwell c and 42.0 rockwell c
Material Specification: Astm a493 assn standard 1st material response or astm a582 assn standard 2nd material response
Pindiameter: Between 0.1251 inches and 0.1253 inches
Pinlength: Between 0.365 inches and 0.385 inches
Second End Corner Radius: 0.041 inches
Second End Relationship With First End: Not identical
Second End Style: Radius
Shear Strength: 1800 double pound
Special Features: Small chamfer end may be 0.016 in. min 0.041 in. max radius in lieu of chamfer certified free from mercury contamination
Special Test Features: Special quality control testing
Surface Finish: 16.0 microinches outside diameter
Test Data Document: Etc.).
