Home » MS16562-16 Spring Pin

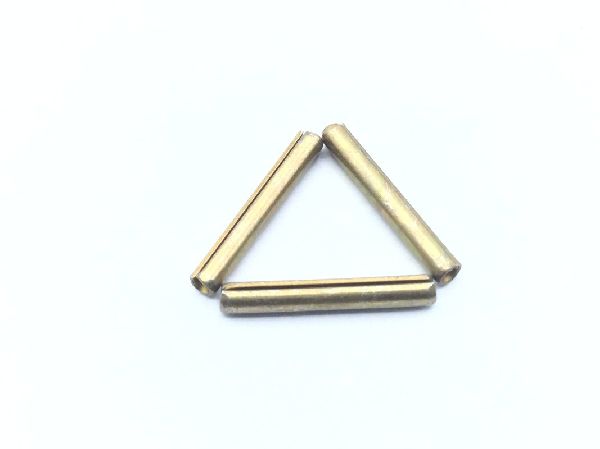

MS16562-16 Spring Pin
MS16562-16 Spring Pin (2)
MS16562-16 Spring Pin (3)

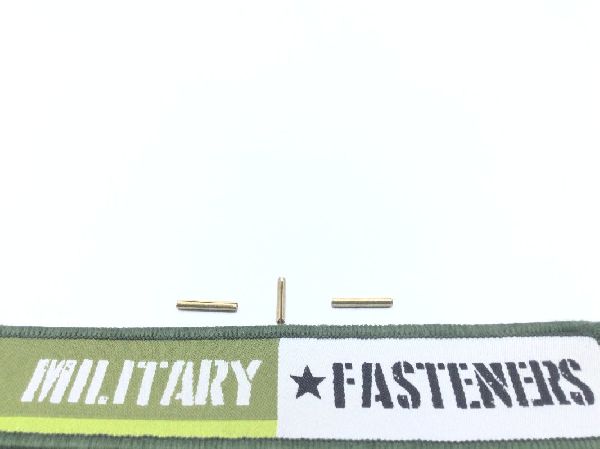

MS16562-16 Spring Pin (4)

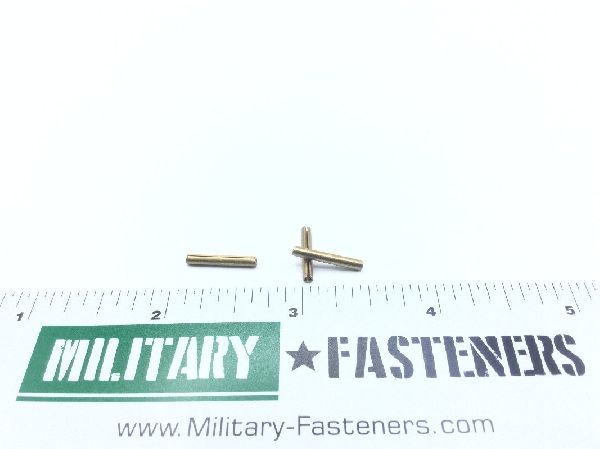

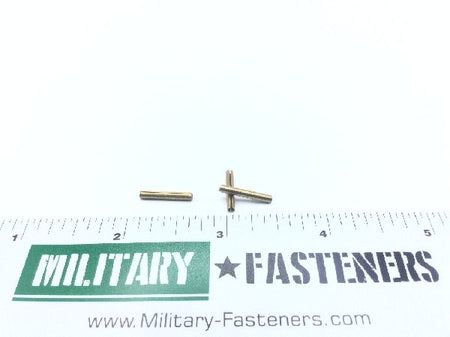

MS16562-16 Spring Pin (5)

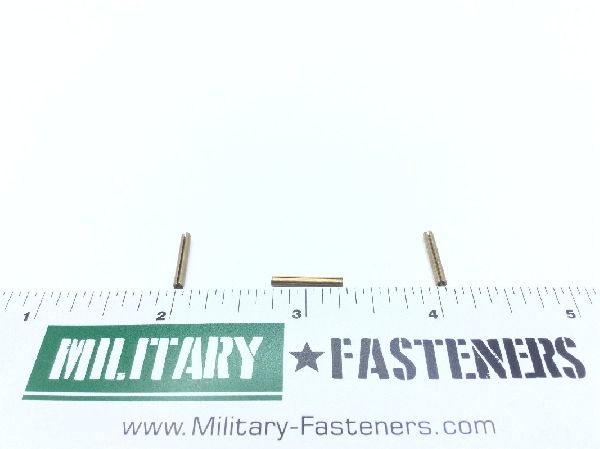

MS16562-16 Spring Pin (6)
MS16562-16 Spring Pin
MS16562-16 Spring Pin (2)
MS16562-16 Spring Pin (3)
MS16562-16 Spring Pin (4)
MS16562-16 Spring Pin (5)
MS16562-16 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-16 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7318.29.0000
Price per Unit $0.33
Units per Pack 100
Price per Pack $33.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $33.00
Add item to quote
Material
Steel comp 1070 or steel comp 1074 or steel comp 1080 or steel comp 1086 or steel comp 1095
Overall Length
Between 0.547 inches and 0.577 inches
Surface Treatment
Ty2 cl2 federal specification single treatment response qq-p-416
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
66 federal standard all material responses
Material Thickness
0.012 inches
Shear Strength
425 double pound
Style Designator
Slotted
Diameter
Between 0.066 inches and 0.069 inches
