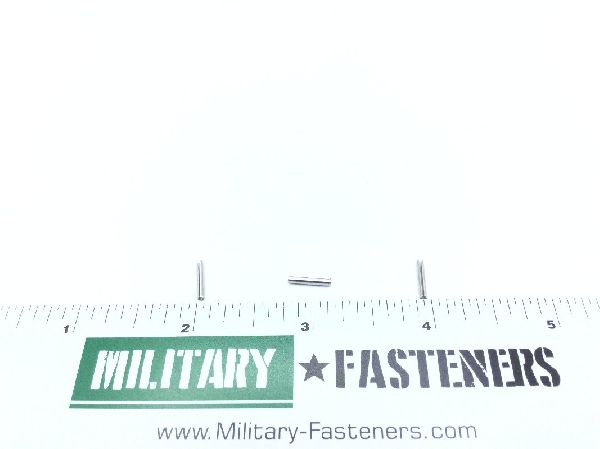

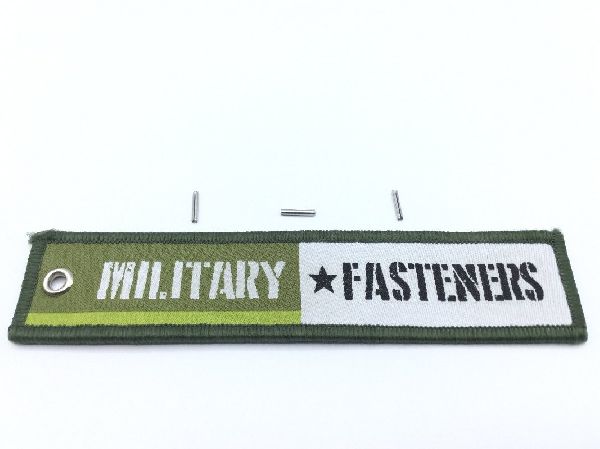

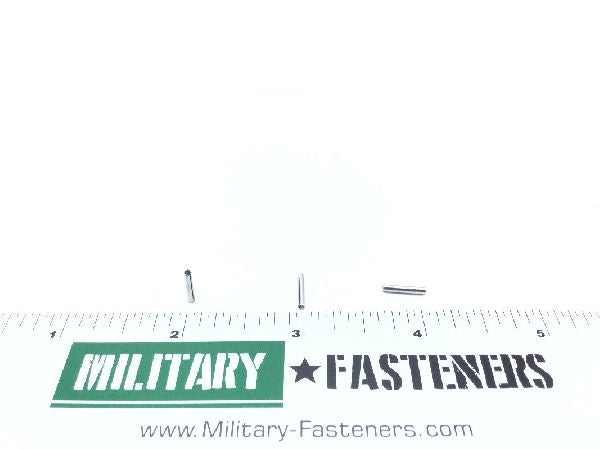

MS16562-192 Spring Pin

MS16562-192 Spring Pin (2)

MS16562-192 Spring Pin (3)

MS16562-192 Spring Pin (4)

MS16562-192 Spring Pin (5)

MS16562-192 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-192 Spring Pin

Product Series: MS
ECCN: EAR99
Schedule: 7320.20.5060

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Material

Steel comp 410 or steel comp 420

Overall Length

Between 0.360 inches and 0.390 inches

Surface Treatment

Astm a380 assn standard single treatment response

Hardness Rating: 43.0 rockwell c and 52.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: 0.012 inches
Shear Strength: 425 double pound
Style Designator: Slotted
Surface Finish: 80.0 microinches outside diameter
Diameter: Between 0.066 inches and 0.069 inches
