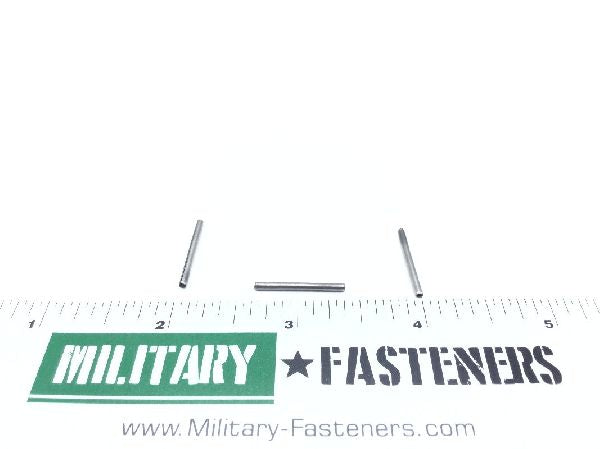

MS16562-198 Spring Pin

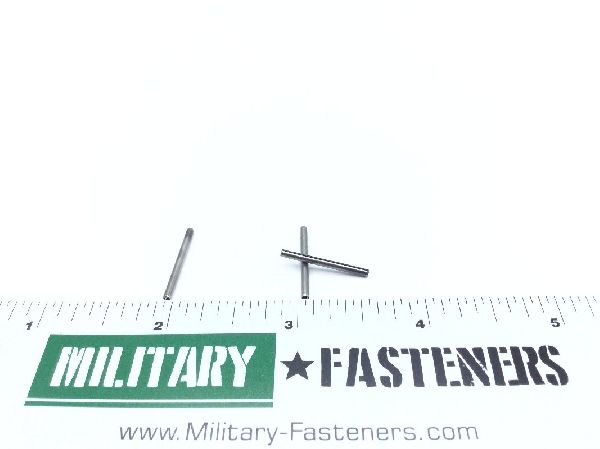

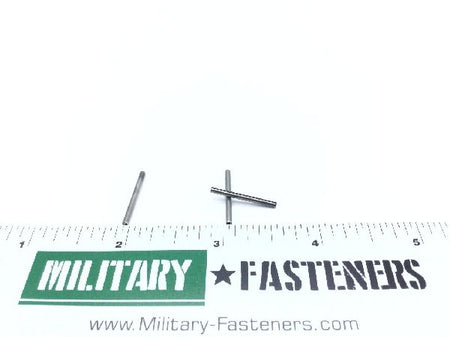

MS16562-198 Spring Pin (2)

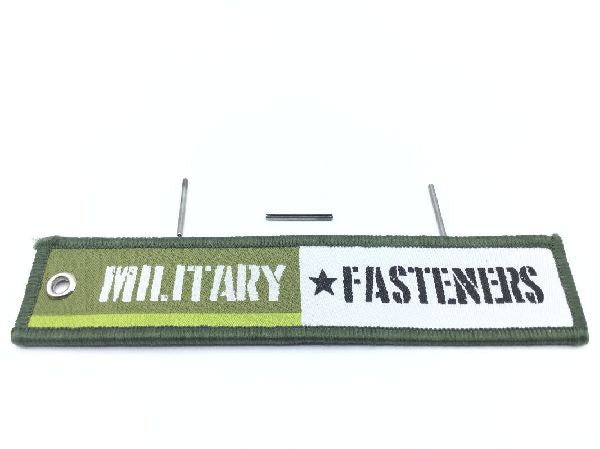

MS16562-198 Spring Pin (3)

MS16562-198 Spring Pin (4)

MS16562-198 Spring Pin (5)

MS16562-198 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-198 Spring Pin

Product Series: MS
ECCN: EAR99
Schedule: 7320.20.5060

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp

Overall Length

Between 0.735 inches and 0.765 inches

Surface Treatment

Astm a380 assn standard single treatment response

Hardness Rating: 43.0 rockwell c and 52.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: 0.012 inches
Shear Strength: 425 double pound
Style Designator: Slotted
Surface Finish: 80.0 microinches outside diameter
Diameter: Between 0.066 inches and 0.069 inches
