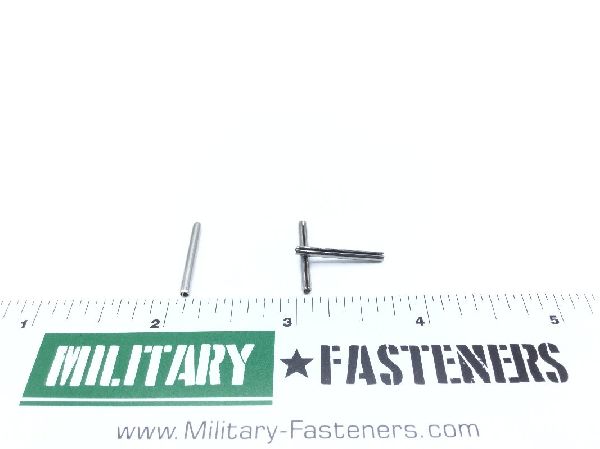

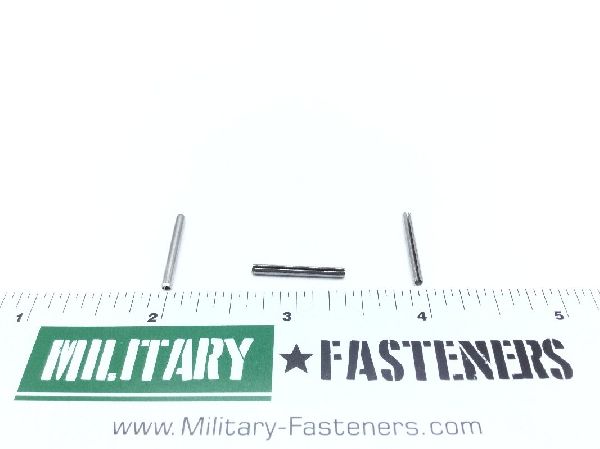

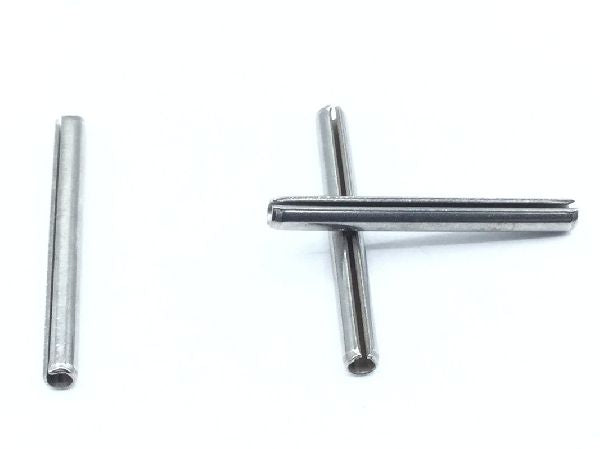

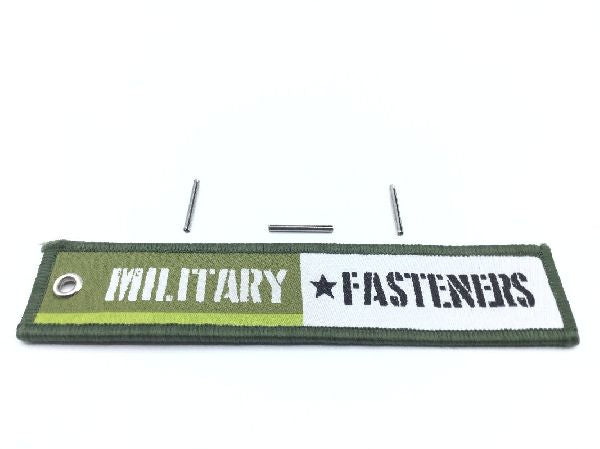

MS16562-206 Spring Pin

MS16562-206 Spring Pin (2)

MS16562-206 Spring Pin (3)

MS16562-206 Spring Pin (4)

MS16562-206 Spring Pin (5)

MS16562-206 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-206 Spring Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp

Overall Length

Between 0.735 inches and 0.765 inches

Surface Treatment

Astm a380 assn standard single treatment response

Hardness Rating: 43.0 rockwell c and 52.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: 0.018 inches
Shear Strength: 650 double pound
Style Designator: Slotted
Surface Finish: 80.0 microinches outside diameter
Diameter: Between 0.083 inches and 0.086 inches
