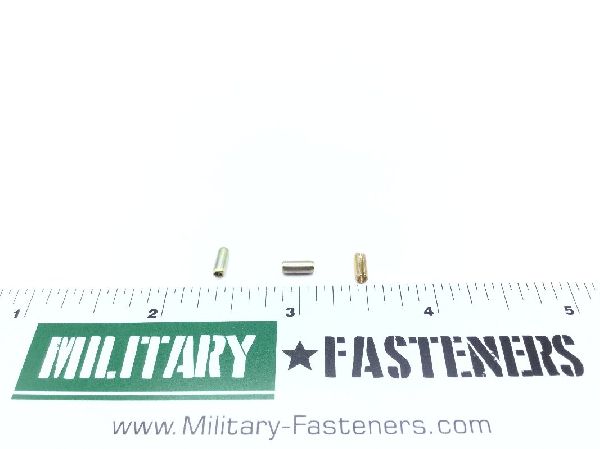

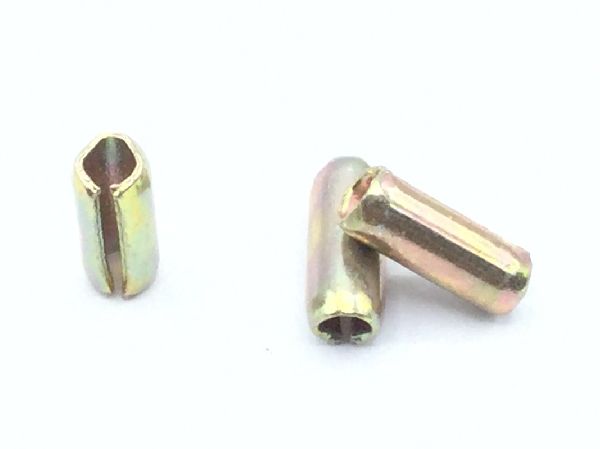

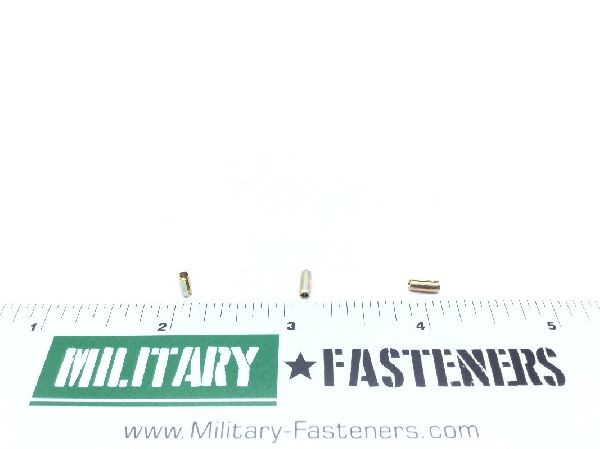

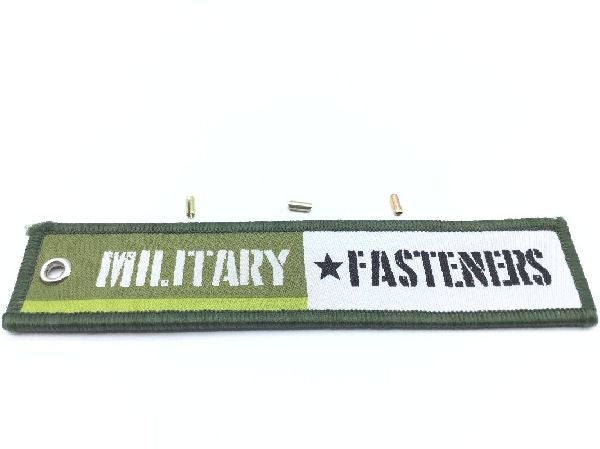

MS16562-21 Spring Pin
MS16562-21 Spring Pin (2)
MS16562-21 Spring Pin (3)
MS16562-21 Spring Pin (4)
MS16562-21 Spring Pin (5)
MS16562-21 Spring Pin (6)
MS16562-21 Spring Pin
MS16562-21 Spring Pin (2)
MS16562-21 Spring Pin (3)
MS16562-21 Spring Pin (4)
MS16562-21 Spring Pin (5)
MS16562-21 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-21 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7318.29.0000
Price per Unit $0.48
Units per Pack 100
Price per Pack $48.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $48.00
Add item to quote
Material
Steel
Overall Length
Between 0.235 inches and 0.265 inches
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
Comp 1070 thru 1095 federal standard single material response 66
Material Thickness
0.022 inches
Shear Strength
2000 double pounds per square inch
Style Designator
Slotted
Diameter
Between 0.099 inches and 0.103 inches
