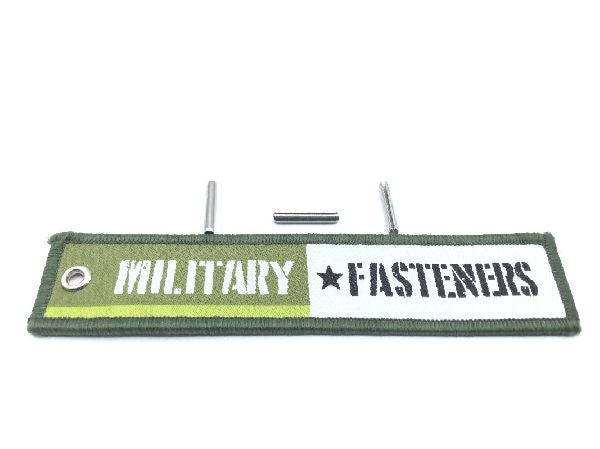

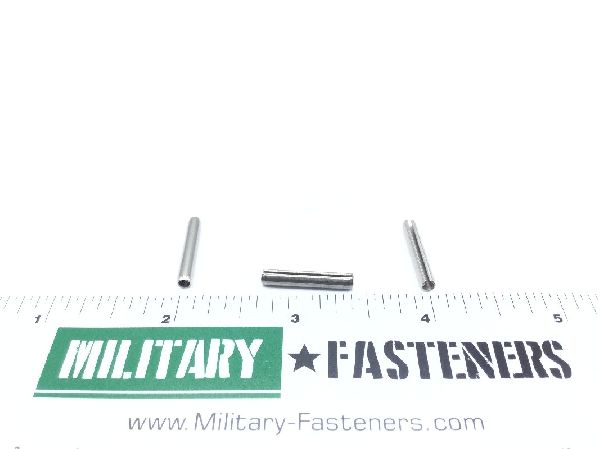

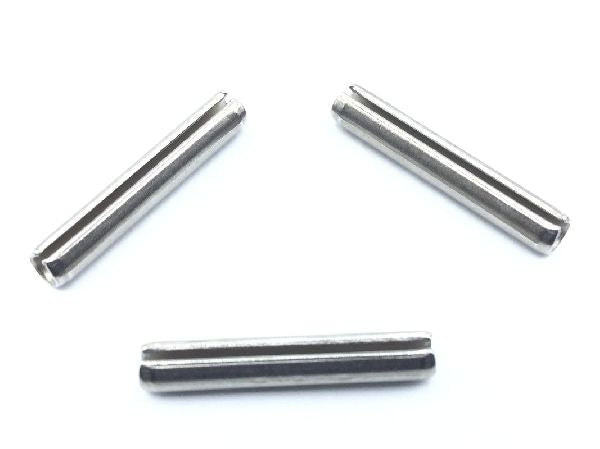

MS16562-224 Spring Pin
MS16562-224 Spring Pin (2)
MS16562-224 Spring Pin (3)
MS16562-224 Spring Pin (4)
MS16562-224 Spring Pin (5)
MS16562-224 Spring Pin
MS16562-224 Spring Pin (2)
MS16562-224 Spring Pin (3)
MS16562-224 Spring Pin (4)
MS16562-224 Spring Pin (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-224 Spring Pin

Product Series
MS
ECCN
EAR99
Schedule
7320.20.5060
Price per Unit $0.69
Units per Pack 50
Price per Pack $34.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $34.50
Add item to quote
Material
Steel comp 410 or steel comp 420
Overall Length
Between 0.735 inches and 0.765 inches
Surface Treatment
Astm a580 assn standard single treatment response
Hardness Rating
43.0 rockwell c and 52.0 rockwell c
Material Specification
66 federal standard all material responses
Material Thickness
0.028 inches
Shear Strength
2100 double pound
Style Designator
Slotted
Diameter
Between 0.131 inches and 0.135 inches
