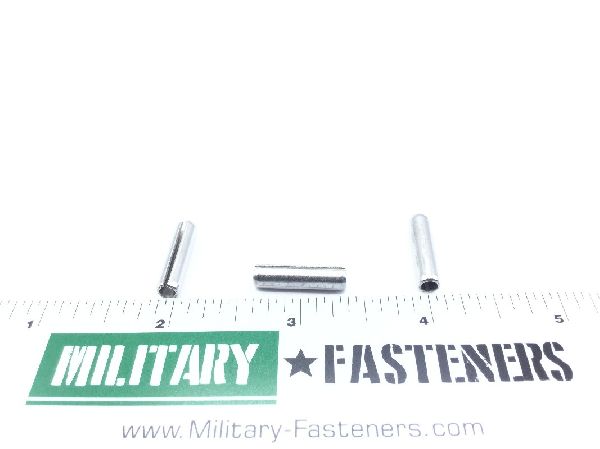

MS16562-236 Spring Pin

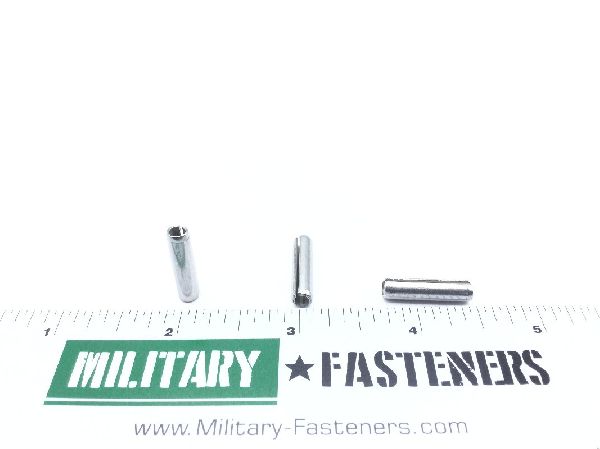

MS16562-236 Spring Pin (2)

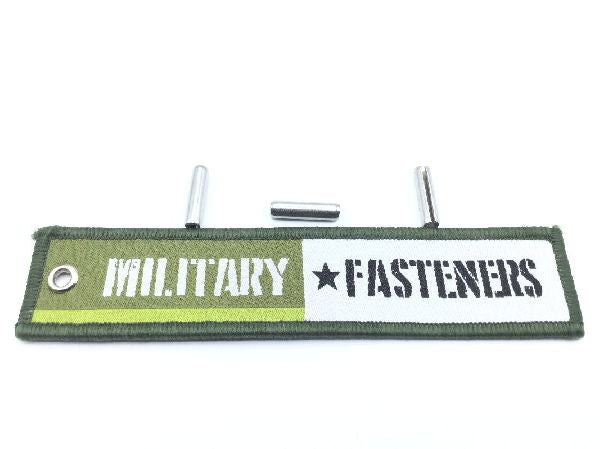

MS16562-236 Spring Pin (3)

MS16562-236 Spring Pin (4)

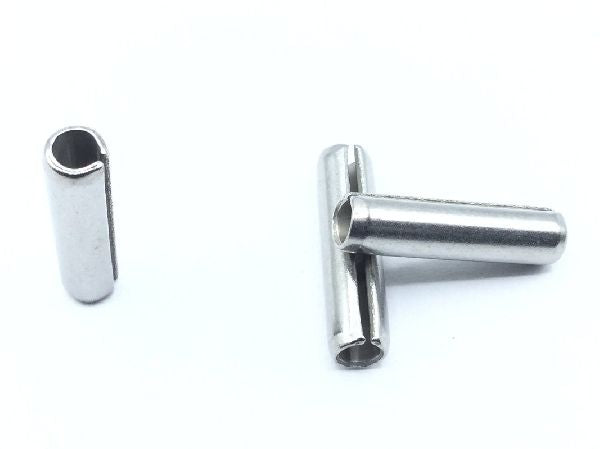

MS16562-236 Spring Pin (5)

MS16562-236 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS16562-236 Spring Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Material

Steel comp 410 or steel comp 420

Overall Length

Between 0.735 inches and 0.765 inches

Surface Treatment

Astm a380 assn standard single treatment response

End Application: Mrap rg-33
Hardness Rating: 43.0 rockwell c and 52.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: 0.040 inches
Shear Strength: 4400 double pound
Style Designator: Slotted
Diameter: Between 0.194 inches and 0.199 inches
