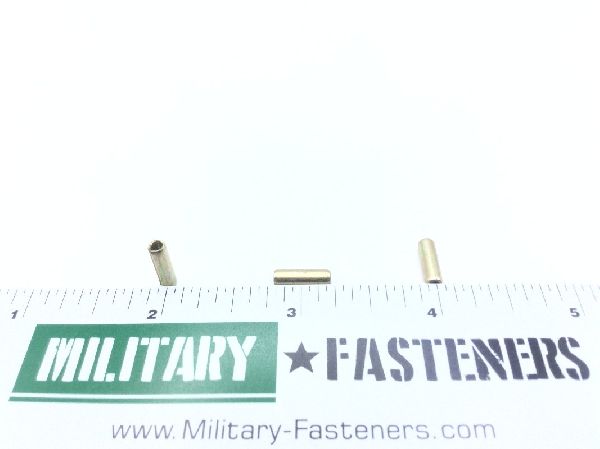

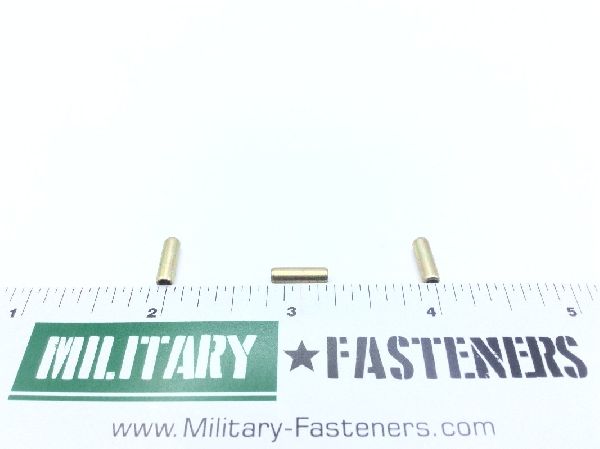

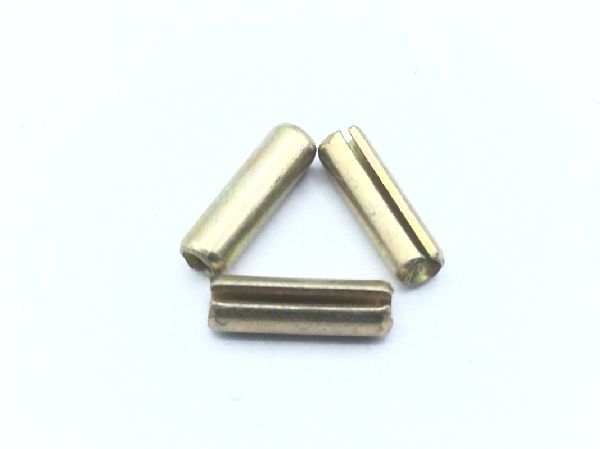

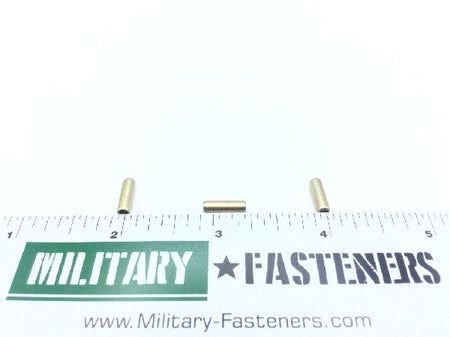

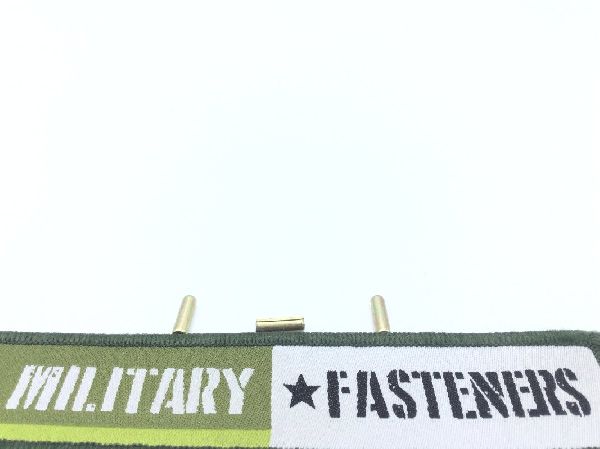

MS16562-32 Spring Pin

NSN
5315-00-844-9710
Product Series
MS
ECCN
EAR99
Schedule
7318.29.0000
Price per Unit $0.83
Units per Pack 50
Price per Pack $41.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $41.50
Add item to quote
Material
Steel
Overall Length
Between 0.423 inches and 0.453 inches
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Hardness Rating
46.0 rockwell c and 53.0 rockwell c
Material Specification
Comp 1070 thru 1095 federal standard single material response 66
Material Thickness
0.028 inches
Shear Strength
4200 double pounds per square inch
Style Designator
Slotted
Diameter
Between 0.131 inches and 0.135 inches
